Rear Wheelwell Gusset Replacement
Rear Wheelwell Gusset ReplacementNOTE: Take care not to scratch the body or the related parts.
1.
Remove the cargo area side
trim panel Interior Trim Removal / Installation - Cargo Areas.
2.

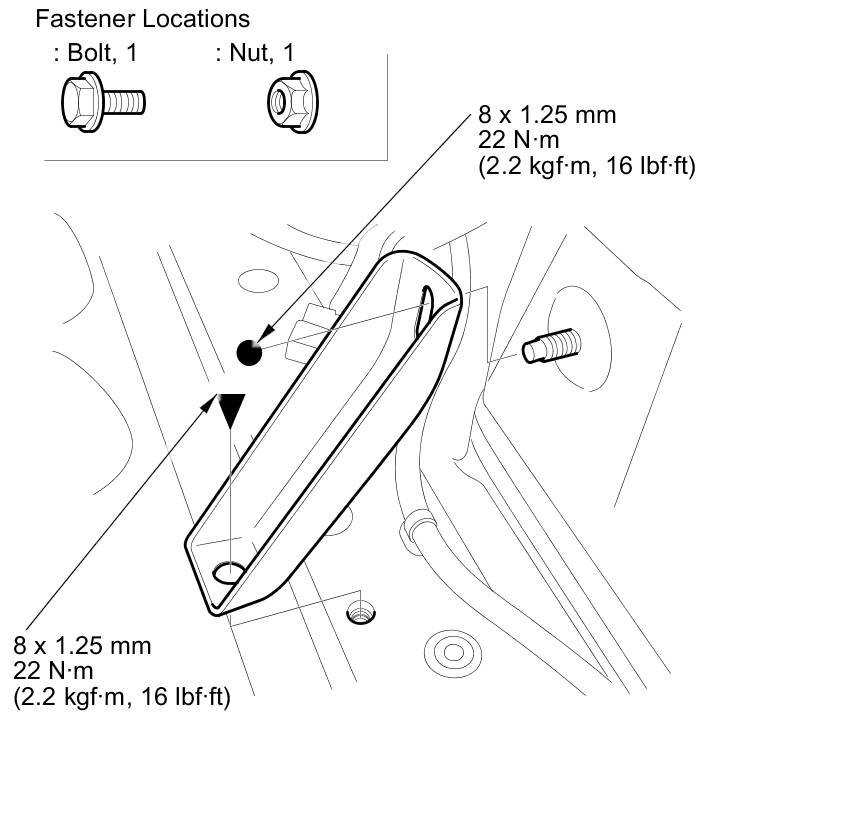

Remove the bolt and the nut, then remove the rear wheelwell gusset (A).
3.
Install the gusset in the reverse order of removal.
