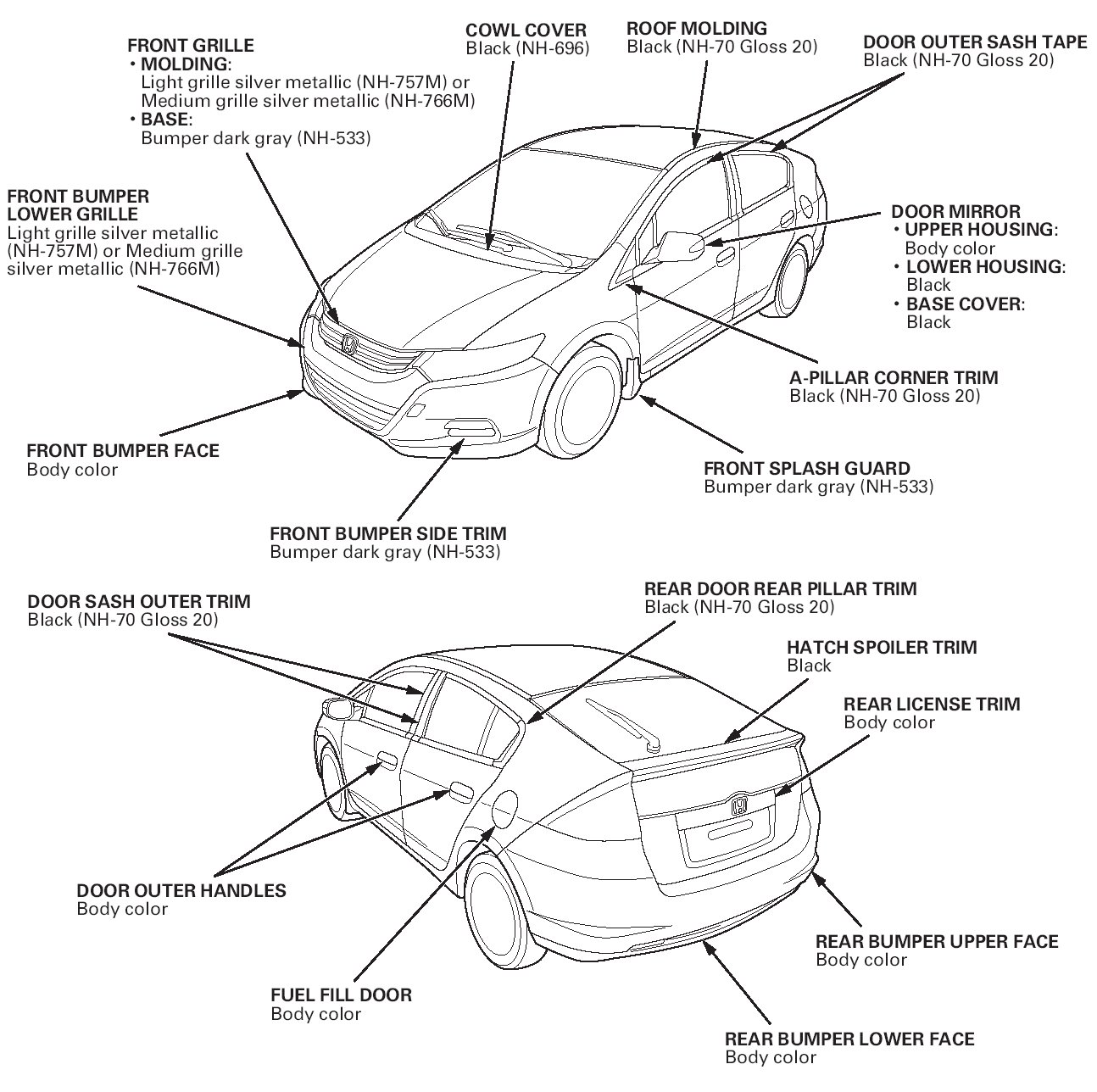

Color Chart Paint Specifications





Color Chart Paint Specifications

NOTE:
- For model year paint code information.
- When the coat dries up to protect IMA battery set a temperature in the paint booth to equal to or less than 149°F (65°C).
