Rear Suspension Lower Cover Replacement

Rear Suspension Lower Cover Replacement

NOTE:

- Take care not to scratch the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

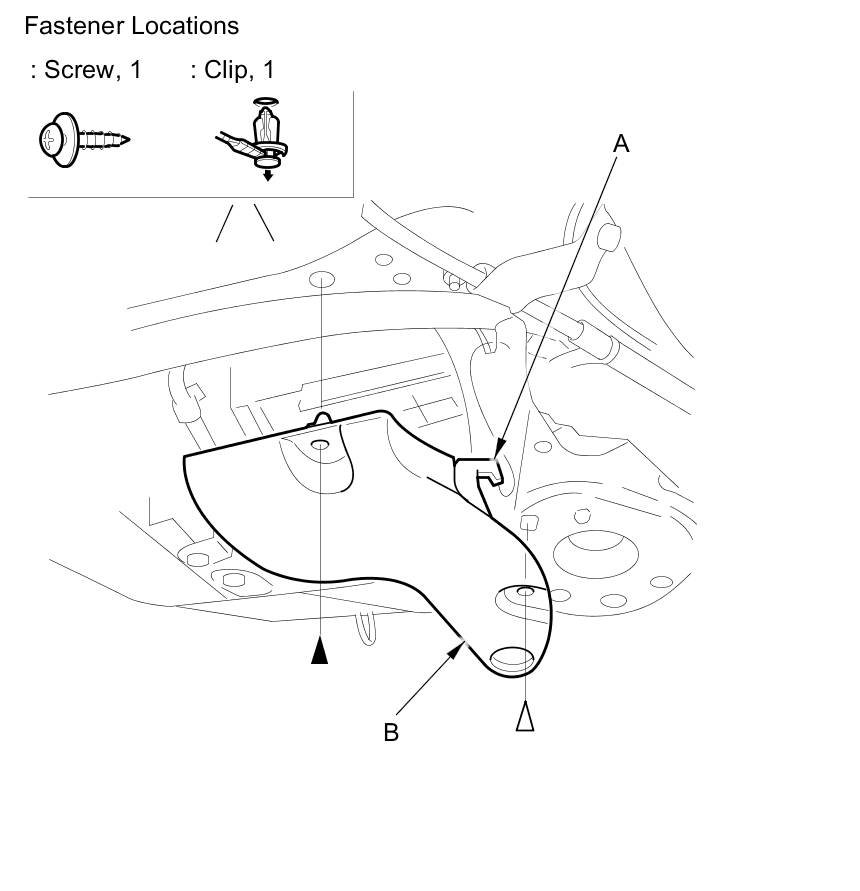

1. Remove the screw and the clip, detach the hook (A), then remove the rear suspension lower cover (B).





2. Install the cover in the reverse order of removal, and note these items:

- If the clip is damaged or stress-whitened, replace it with a new one.
- Push the hook areas into place securely.
