Front Door Window Glass Weatherstrip: Service and Repair

Front Door Glass Outer Weatherstrip Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the door or the related parts.

1. Remove the front door sash outer trim .

2. Lower the glass fully.

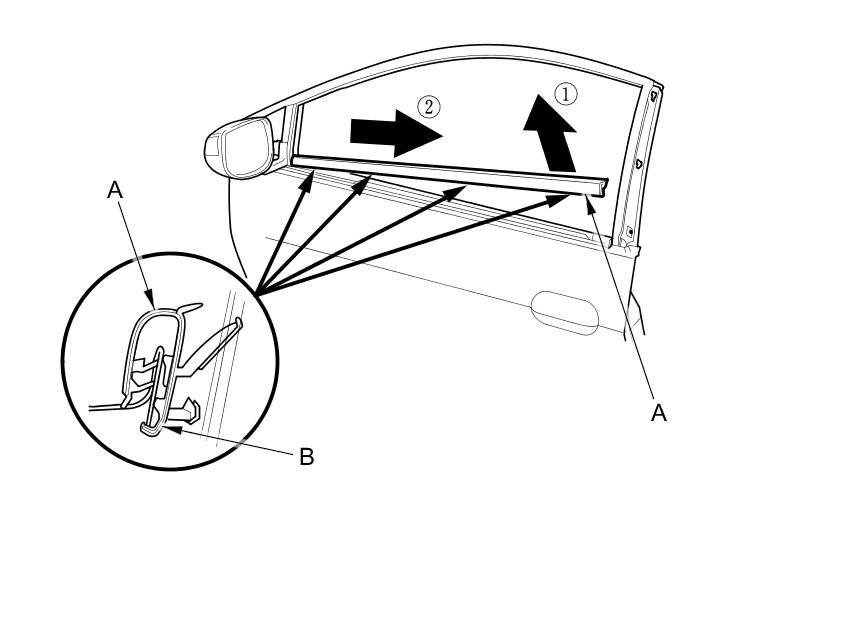

3. Pull up the rear edge of the door glass outer weatherstrip (A), and detach the hooks (B). Slide the weatherstrip rearward, then remove it.





4. Install the weatherstrip in the reverse order of removal, and note these items:

- Push the weatherstrip into place securely.
- Make sure that there is no clearance between the rear edge of the weatherstrip and the door sash outer trim.
