Front Turn Signal Light Replacement
Front Turn Signal Light Replacement 1.
Remove the front bumper side lid .
2.

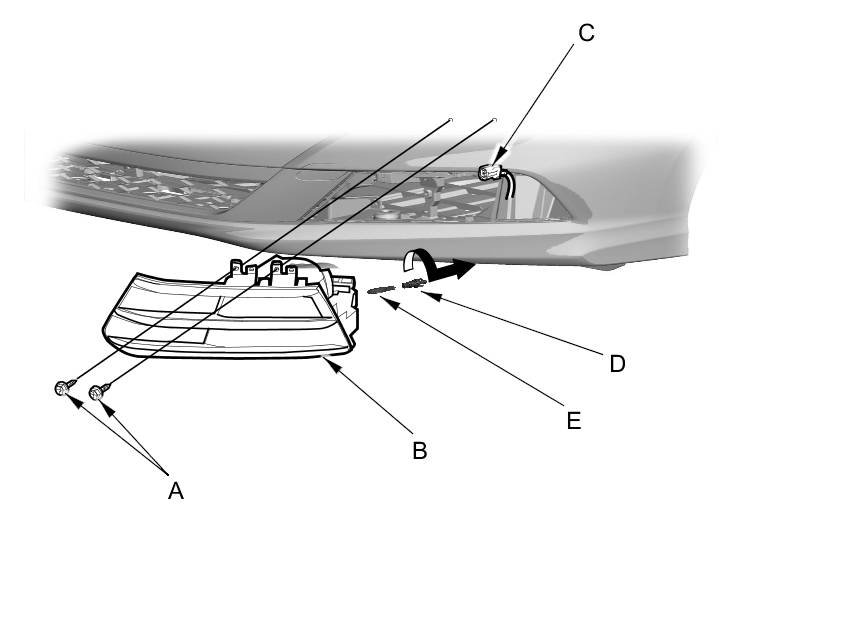

Remove the mounting two screws (A) from the front turn signal light (B).
3.
Disconnect the 2P connector (C) from the front turn signal light.
4.
Turn the bulb socket (D) counterclockwise to remove it from the bulb (E).
5.
Install the front turn signal light in the reverse order of removal.
