Air Cleaner Housing: Service and Repair
Air Cleaner Removal/Installation 1.

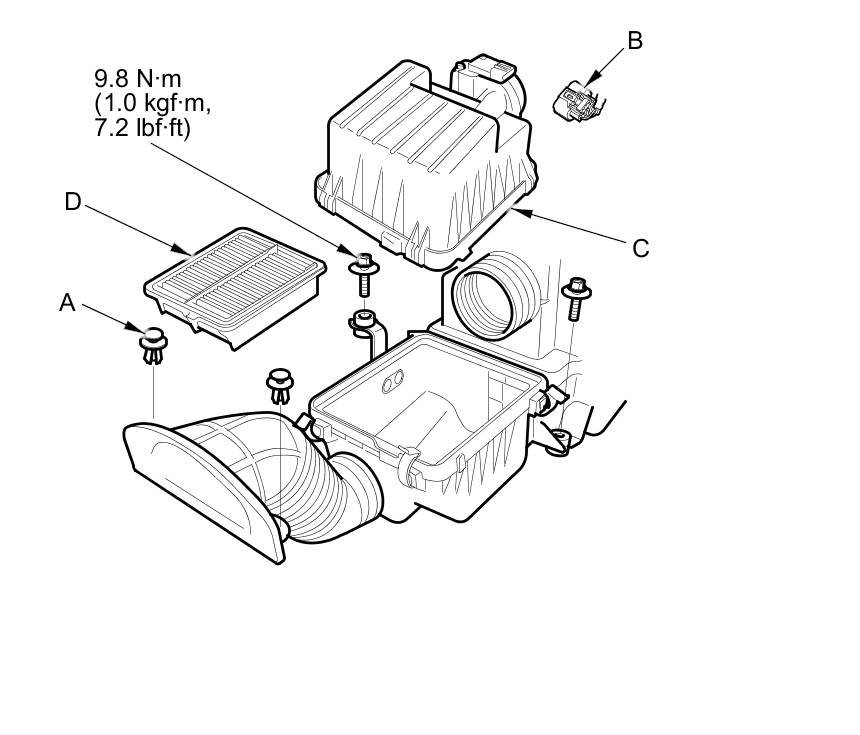

Remove the clips (A).
2.
Disconnect the MAF sensor/IAT sensor connector (B), then remove the
air cleaner housing cover (C), and the air cleaner element (D).
NOTE: Be careful not to damage the MAF sensor/IAT sensor on the
air cleaner housing cover.
3.

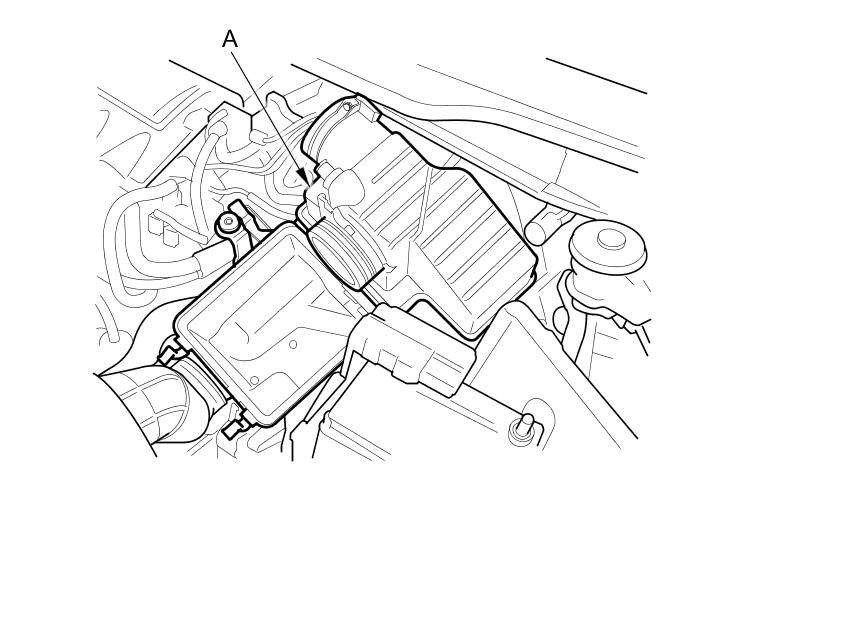

Remove the
air cleaner housing (A).
4.
Install the parts in the reverse order of removal.
