CVT Driven Pulley Pressure Sensor Replacement




CVT Driven Pulley Pressure Sensor Replacement

1. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of the vehicle. Make sure it is securely supported, and allow the front wheels to rotate freely.

2. Remove the splash shield Splash Shield Replacement.

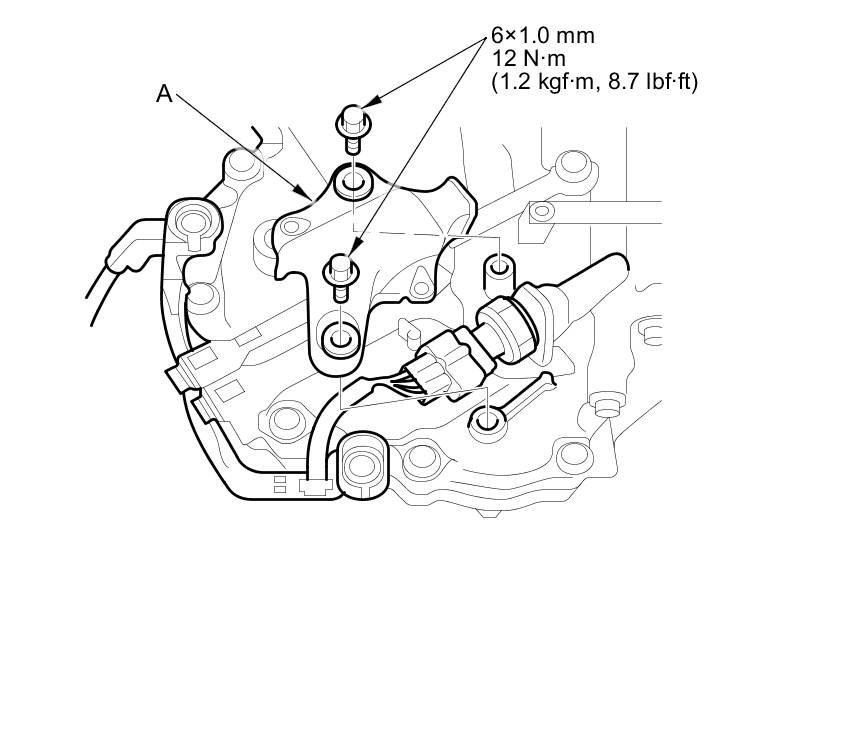

3. Remove the CVT driven pulley pressure sensor cover (A).

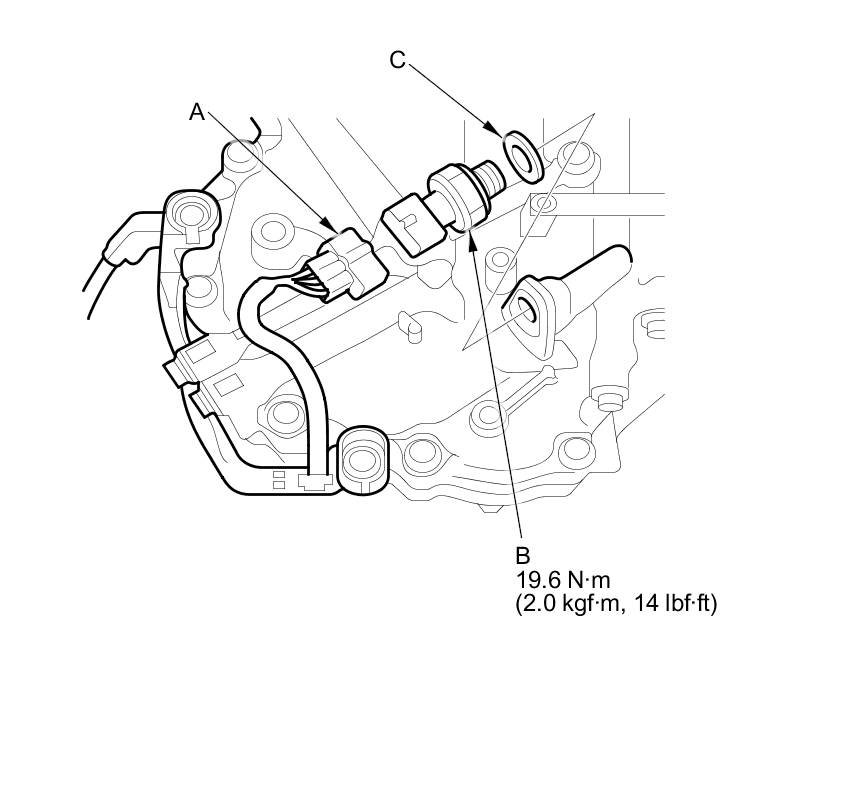

4. Disconnect the CVT driven pulley pressure sensor 3P connector (A), then remove the CVT driven pulley pressure sensor (B) and sealing washer (C).






5. Install the new CVT driven pulley pressure sensor and a new sealing washer, and tighten the metal part of the sensor. Do not allow dust or other foreign particles to enter the transmission.

6. Check the connectors for corrosion, dirt, or oil, and clean or repair if necessary.

7. Connect the CVT driven pulley pressure sensor 3P connector.

8. Install the CVT driven pulley pressure sensor cover.

9. Install the splash shield Splash Shield Replacement.
