End Cover Driven Pulley Pressure Sensor Removal/Installation
End Cover Driven Pulley Pressure Sensor Removal/Installation 1.

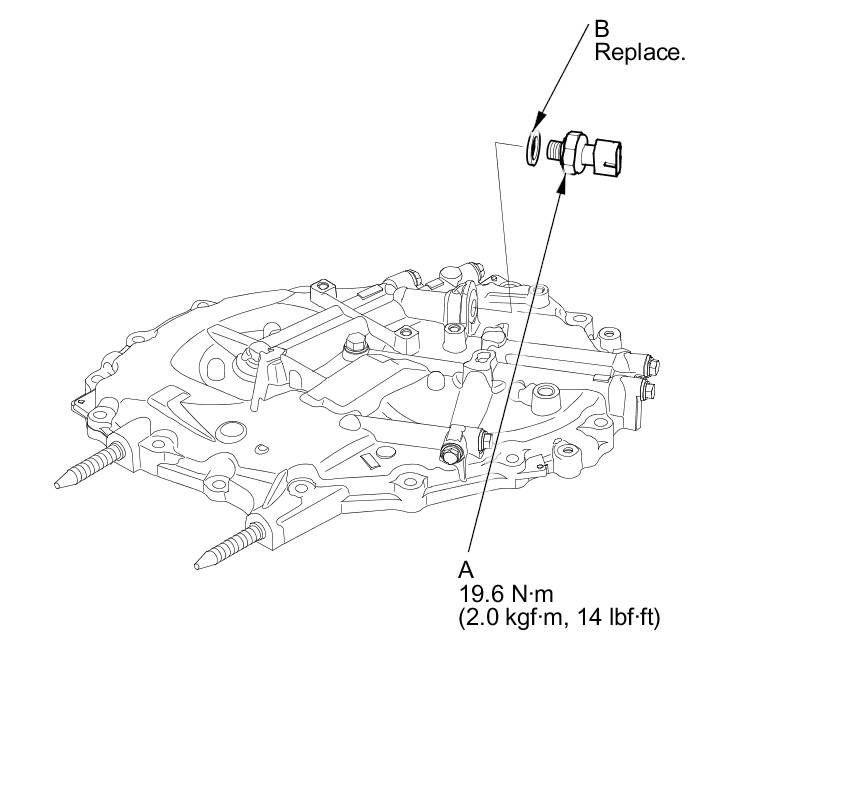

Remove the CVT driven pulley pressure sensor (A).
2.
Install the new CVT driven pulley pressure sensor and a new sealing washer (B), and tighten the sensor.
