Front Passenger's Power Window Motor Test




Front Passenger's Power Window Motor Test

1. Remove the front passenger's power window switch Passenger's Power Window Switch Replacement.

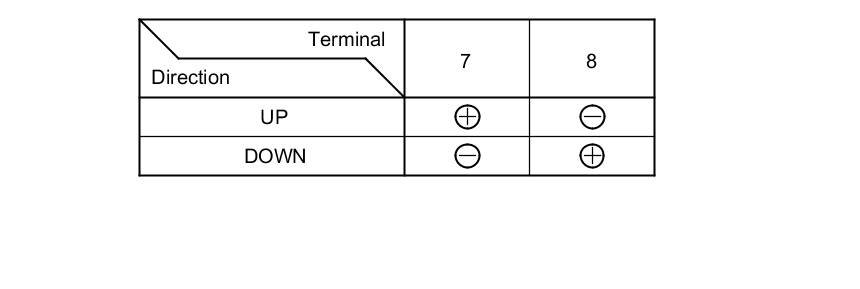

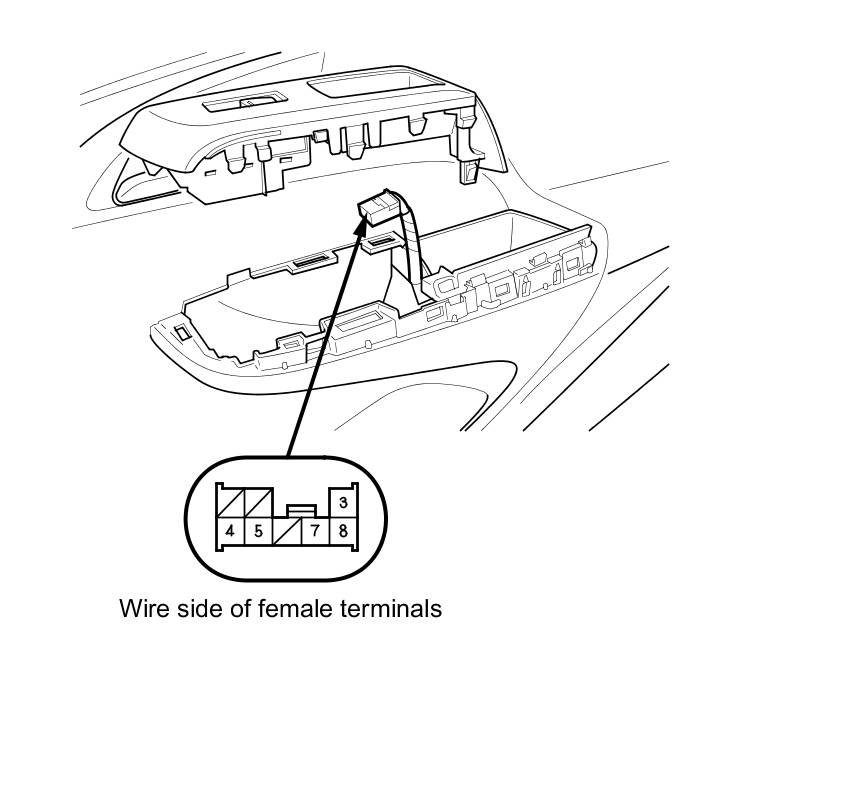

2. Test the motor in each direction by connecting battery power and ground to the front passenger's power window switch 8P connector according to the table.










3. If the motor does not run or fails to run smoothly, go to step 4. If the motor is OK, do the power window master switch input test Power Window Master Switch Input Test.

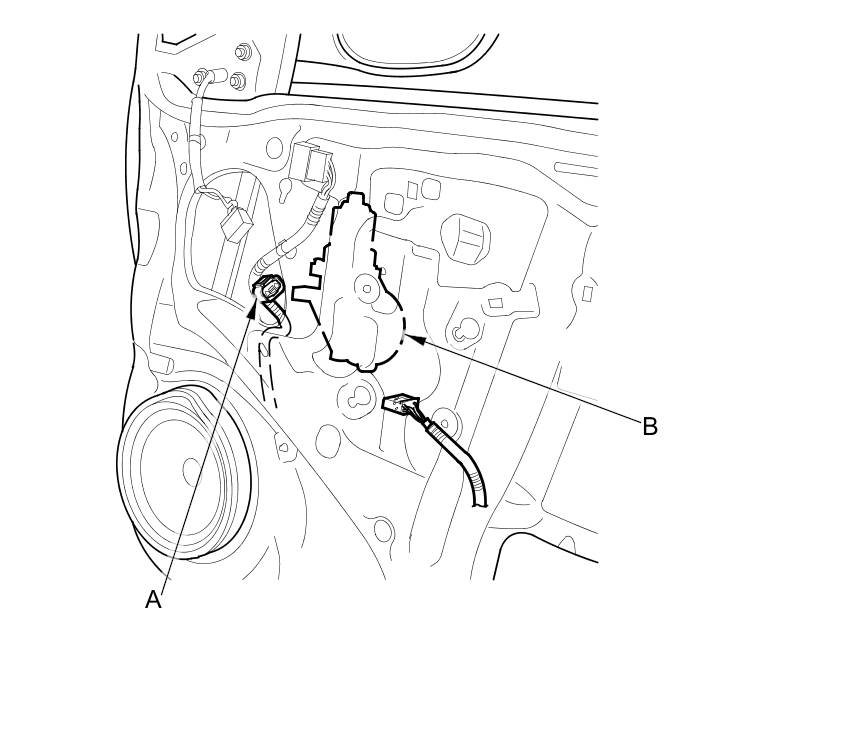

4. Disconnect the 2P connector (A) from the front passenger's power window motor (B).

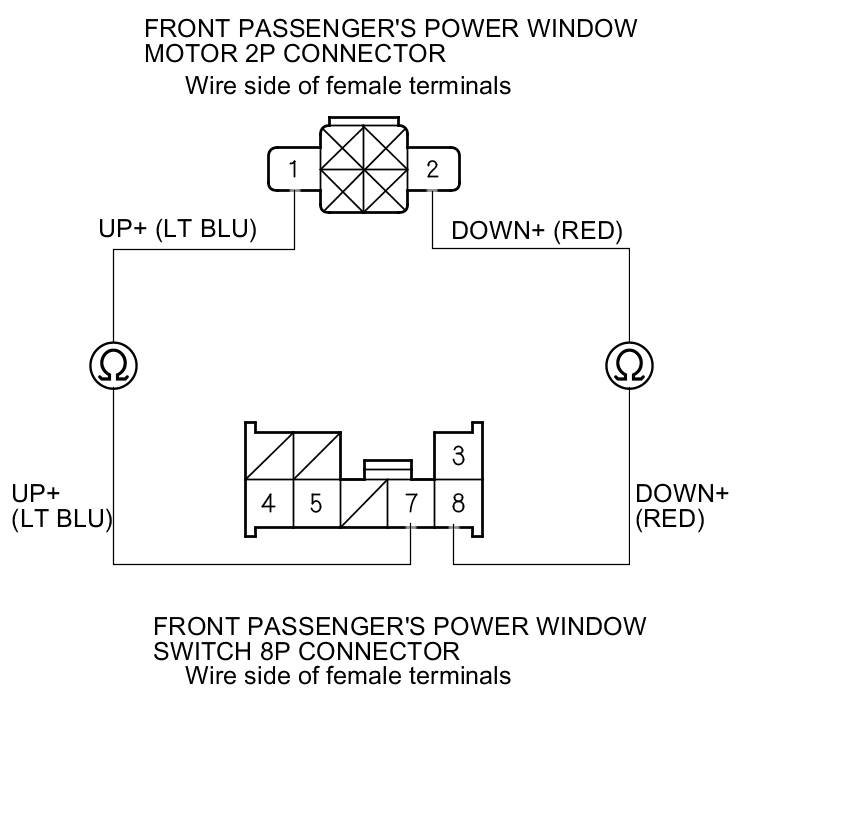

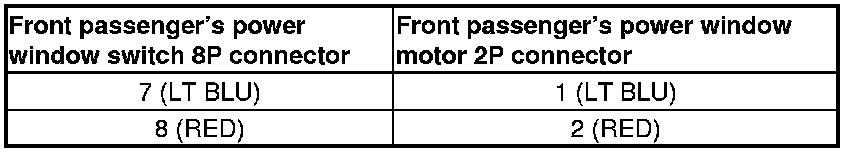

5. Check for continuity between the front passenger's power window switch 8P connector terminals and the front passenger's power window motor 2P connector terminals as shown. There should be continuity.










6. If the wire harness is OK, replace the front passenger's power window motor Service and Repair.
