RES Auxiliary Jack Assembly Replacement
RES Auxiliary Jack Assembly Replacement 1.

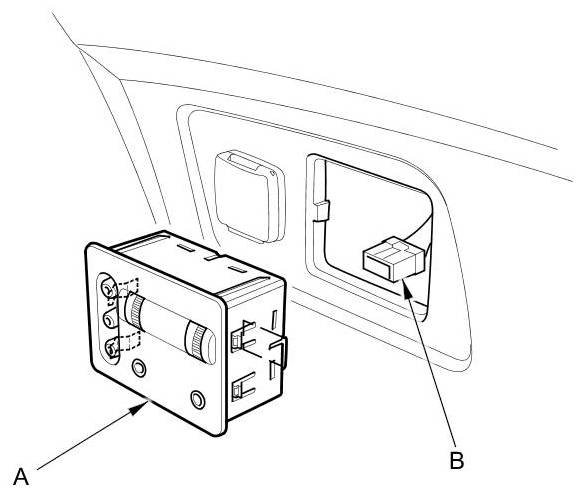

Carefully pry out the RES auxiliary jack assembly (A).
2.
Disconnect the connector (B), and remove the RES auxiliary jack assembly.
3.
Install the RES auxiliary jack assembly in the reverse order of removal.
