Rear Fender Liner: Service and Repair

Rear Inner Fender Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body or the rear bumper.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the rear wheel Service and Repair.

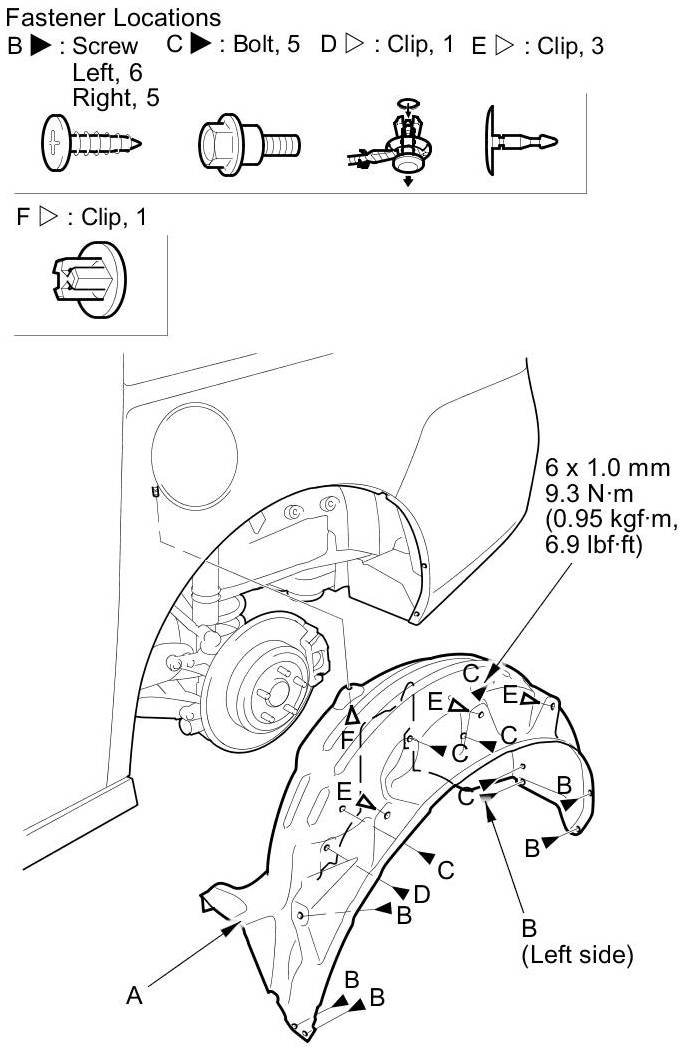

2. Remove the rear inner fender (A).

1. Remove the screws (B) and the bolts (C).

2. Detach the clips (D, E).

3. Remove the nut (F).





3. Install the inner fender in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
