Rear A/C Control Panel Removal/Installation




Rear A/C Control Panel Removal/Installation

1. Remove the passenger's side second row roof outlet.

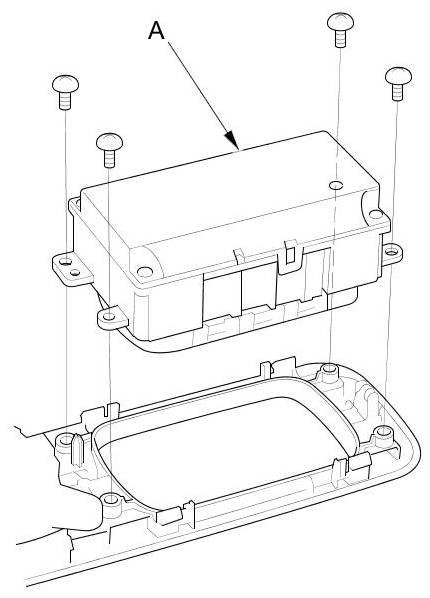

2. Remove the self-tapping screws and the rear A/C control panel (A) from the passenger's side second row roof outlet.






3. Install the rear A/C control panel in the reverse order of removal. After installation, operate the various functions to see whether it works properly.

4. Run the self-diagnostic function to confirm that there are no problems in the system.
