License Plate Lamp: Service and Repair
License Plate Light Replacement 1.
Remove the tailgate lower trim panel .
2.

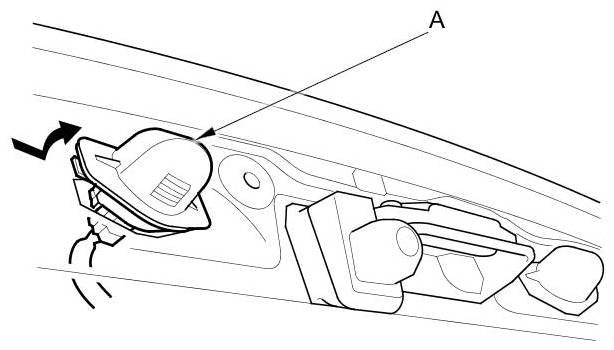

Push the license plate light (A) to the side to release the retaining spring, and pull out the license plate light.
3.

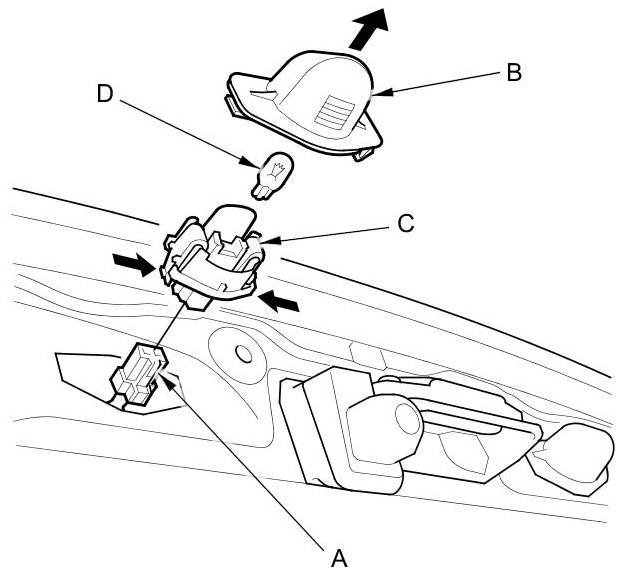

Disconnect the 2P connector (A) from the light.
4.
Separate the lens (B) and the housing (C), then remove the bulb (D).
5.
Install the license plate light in the reverse order of removal.
