High Pressure Safety Valve HVAC: Service and Repair

A/C Compressor Relief Valve Replacement

1. Recover the refrigerant with a recovery/recycling/charging station A/C Refrigerant Recovery.

2. Remove the front splash shield Splash Shield Replacement.

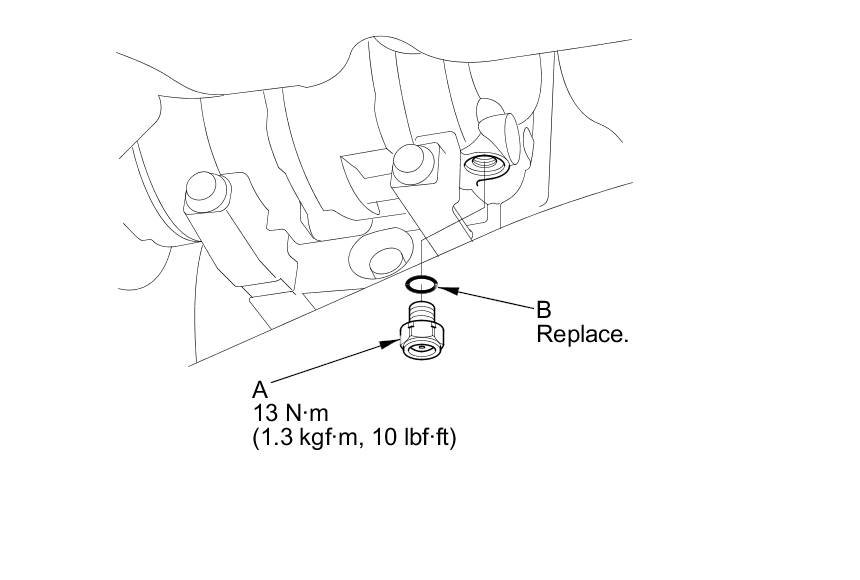

3. Remove the relief valve (A) and the O-ring (B). Plug the opening to keep moisture and foreign material from entering the system and the A/C compressor oil from running out.





4. Clean the mating surfaces.

5. Replace the O-ring with a new one at the relief valve, and apply a thin coat of refrigerant oil before installing it.

6. Remove the plug, and install and tighten the relief valve.

7. Charge the system A/C System Charging.
