Positive Crankcase Ventilation Valve: Service and Repair

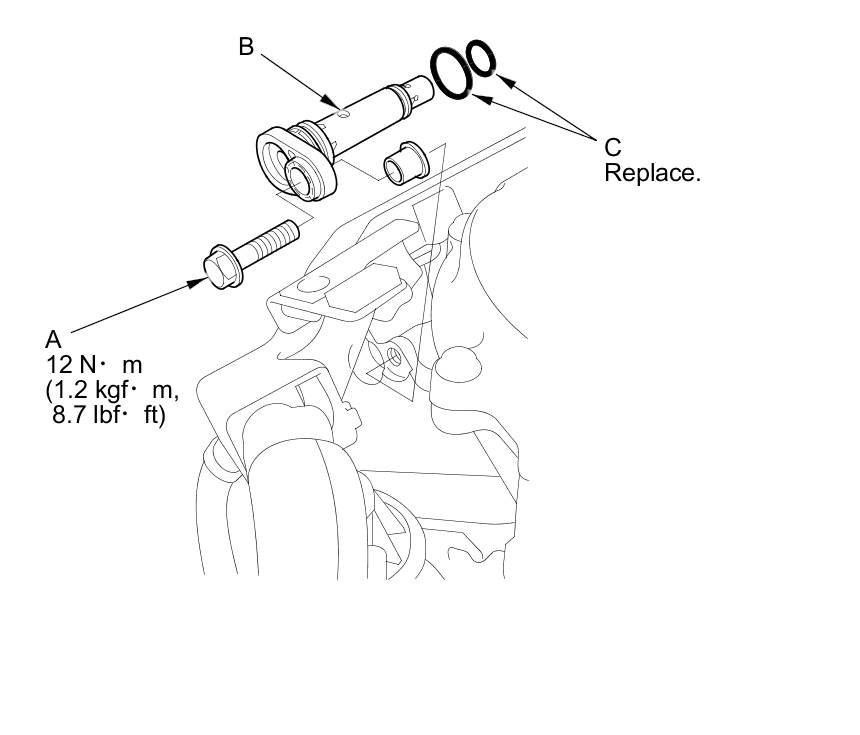

PCV Valve Replacement

1. Remove the engine cover.

2. Remove the bolt (A).

3. Remove the PCV valve (B).

NOTE: Do not to spill oil on the hot exhaust manifold.

4. Install the parts in the reverse order of removal.

NOTE:

- When installing a new PCV valve, make sure the O-rings (C) are in place.
- When installing a used PCV valve, use new O-rings.
