Transfer Assembly Installation (With VTM-4)

Transfer Assembly Installation

1. Clean the areas where the transfer assembly contacts the transmission with solvent, and dry with compressed air. Then apply transmission fluid to the seal contact area.

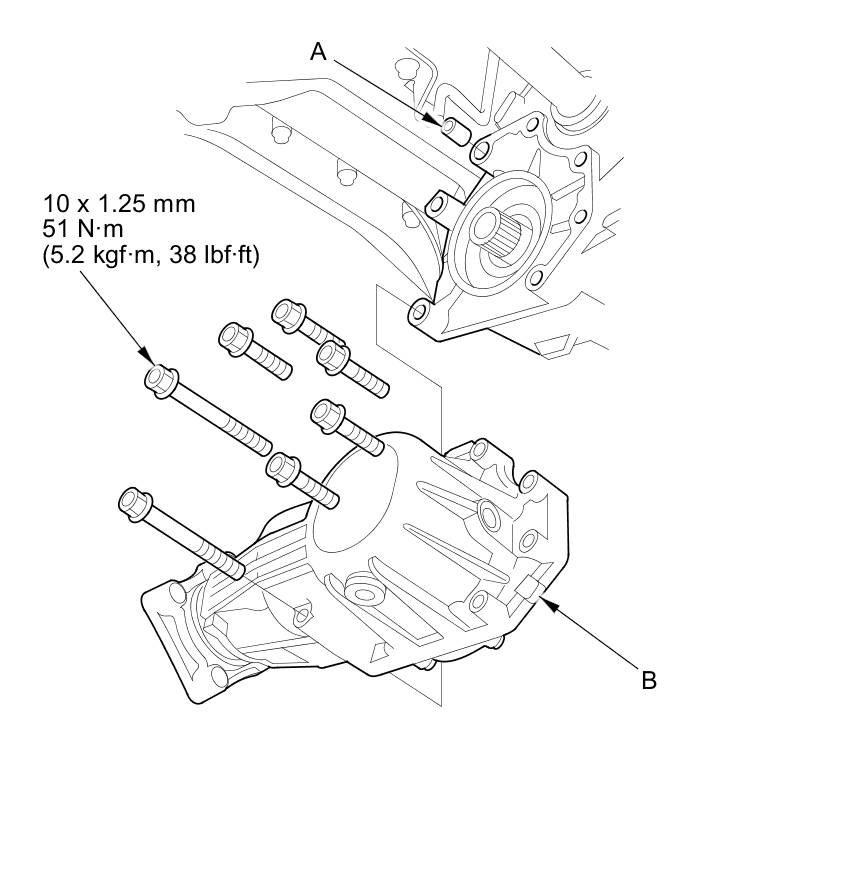

2. Install the 14 x 20 mm dowel pin (A) in the transmission, and install the transfer assembly (B) on the transmission.

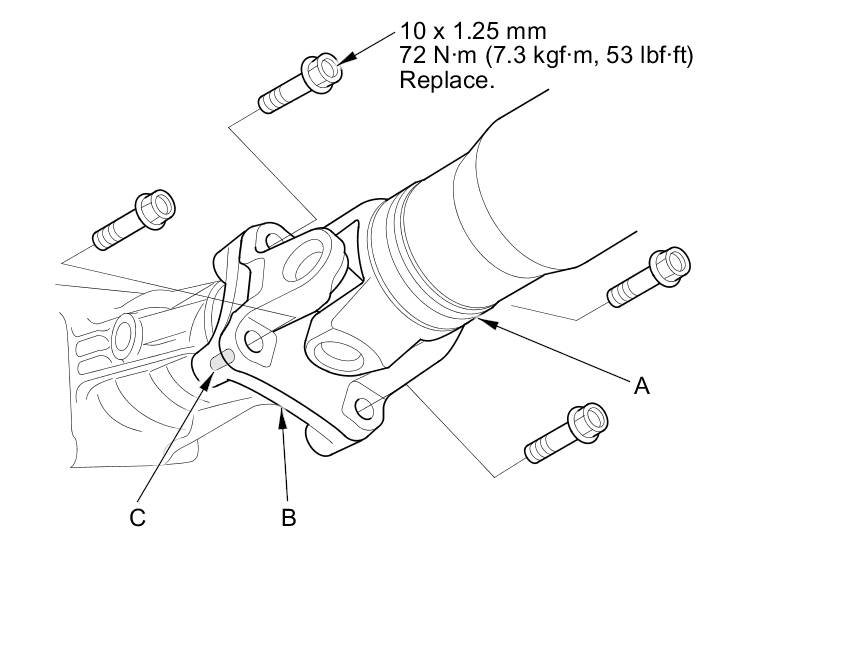

3. Install the propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C). Make sure you use new mounting bolts.

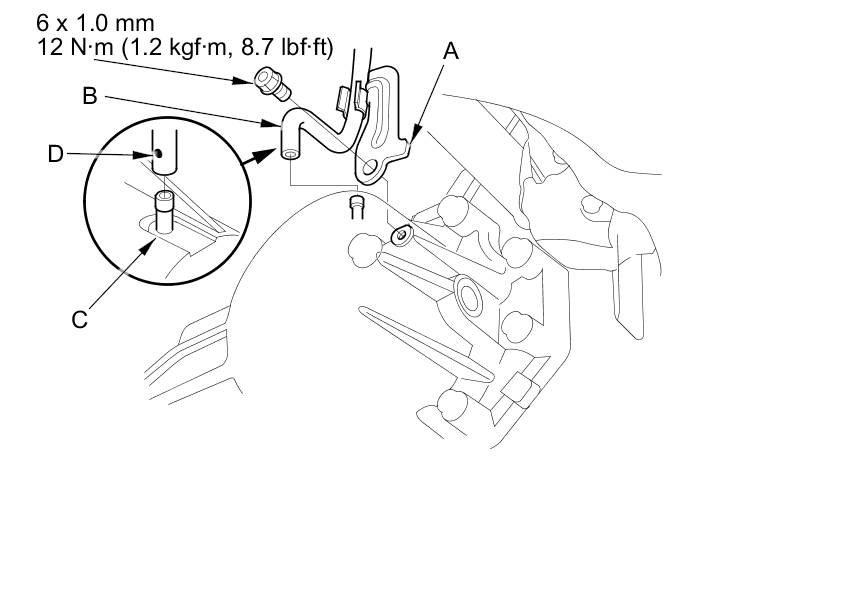

4. Secure the transfer breather hose bracket (A) on the transfer assembly with the bolt, and connect the breather hose (B) over the breather pipe (C) with the dot mark (D) facing out.

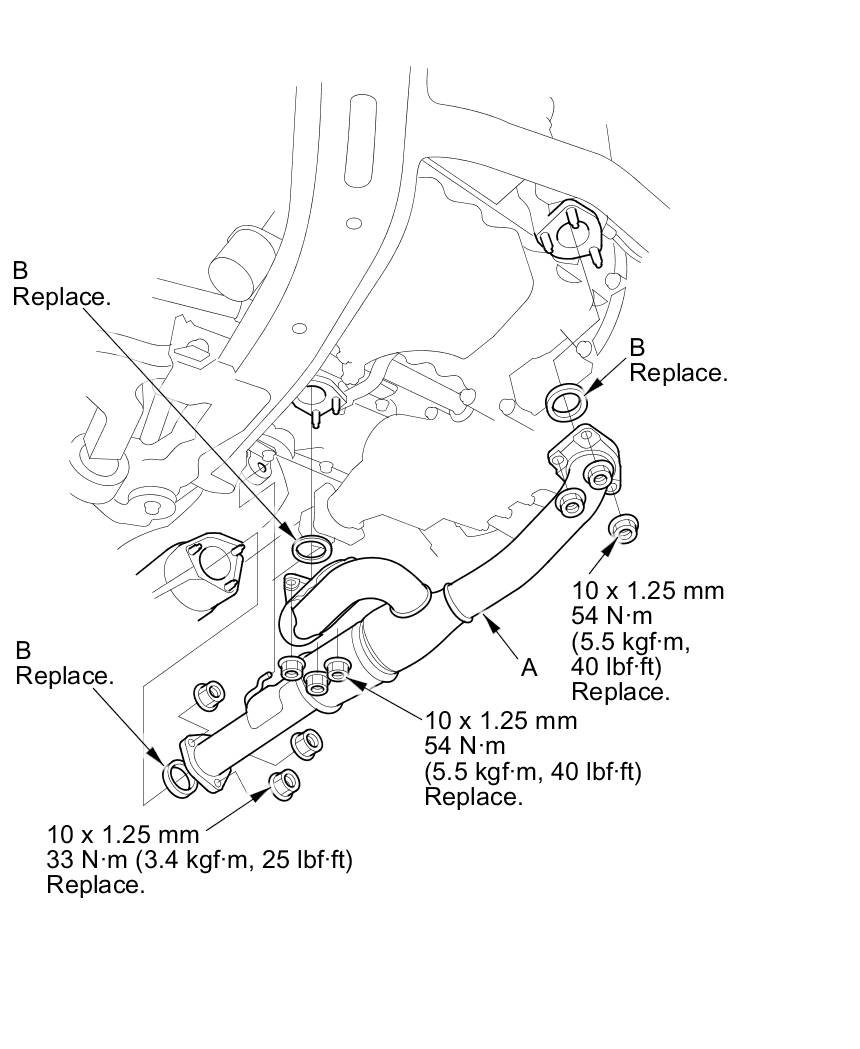

5. Install the exhaust pipe A with new self-locking nuts, its mount, and new gaskets (B).






6. Install the front secondary HO2S.

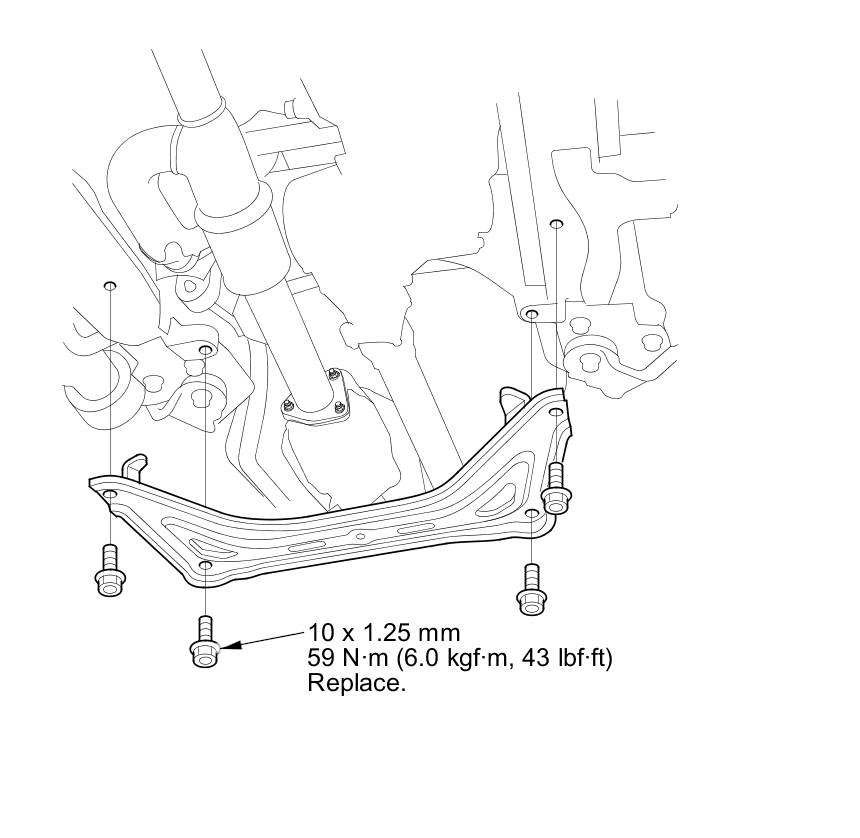

7. Install the front subframe stiffener with new mounting bolts.





8. Refill the transfer assembly with the transfer fluid (hypoid gear oil), if necessary Transfer Assembly Fluid Replacement (With VTM-4).

9. Refill the transmission with ATF.
