Hood Sensor/Switch (For Alarm): Testing and Inspection

Security Hood Switch Test

RTS, RTL, and EX-L models

1. Open the hood.

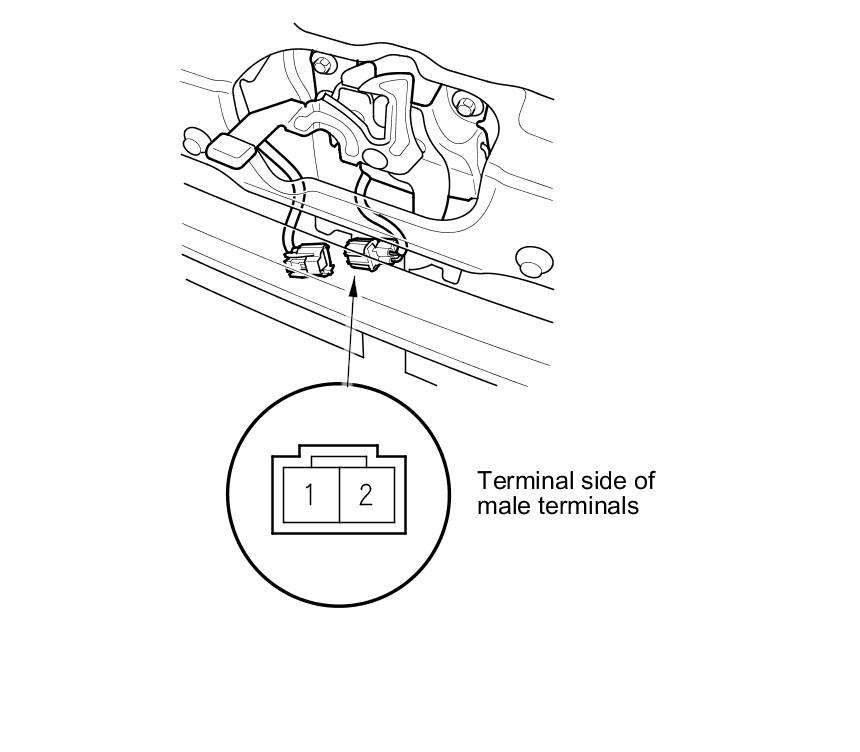

2. Disconnect the 2P connector from the security hood switch.

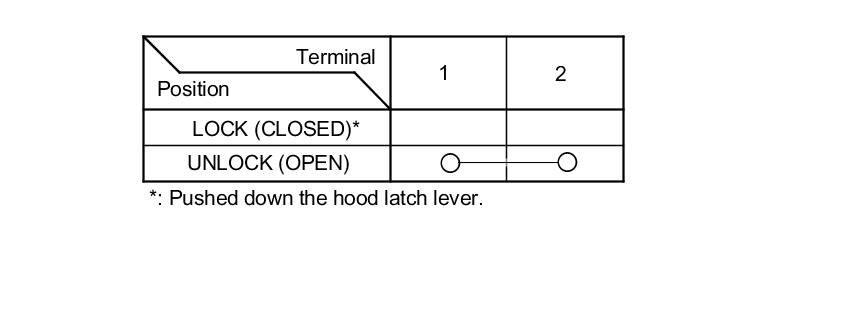

3. Check for continuity between the terminals in each hood position according to the table.

4. If the continuity is not as specified, replace the hood latch Service and Repair.
