Trailer Connector: Service and Repair

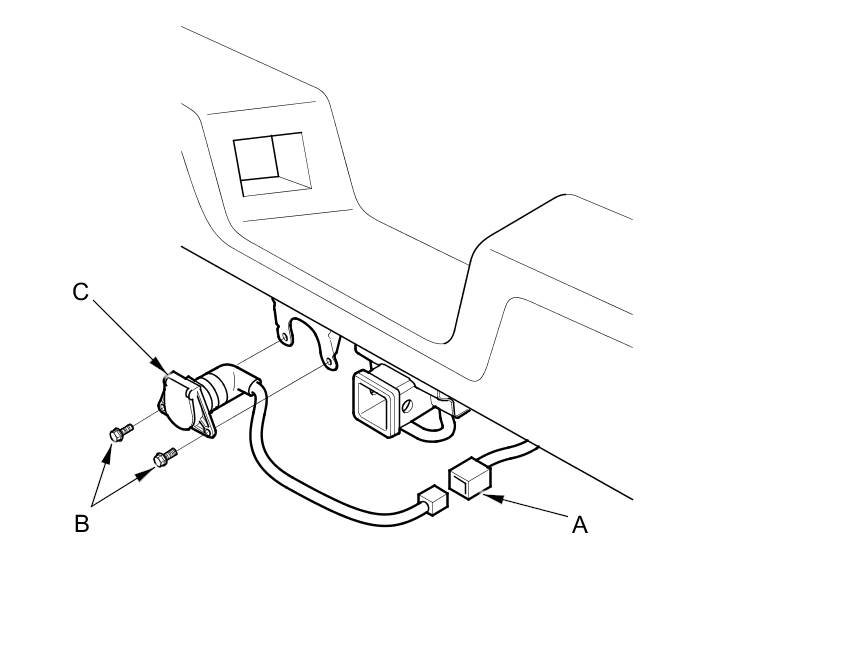

Trailer Lighting Connector Replacement 1.
Remove the 10P connector (A).
2.
Remove the two bolts (B), then remove the trailer lighting connector (C).
3.
Install the trailer lighting connector in the reverse order of removal.
