In-Bed Trunk Lid Handle Switch Test/Replacement




In-Bed Trunk Lid Handle Switch Test/Replacement

1. Open the in-bed trunk lid, and remove the in-bed trunk lid inner cover In-Bed Trunk Lid Latch Replacement.

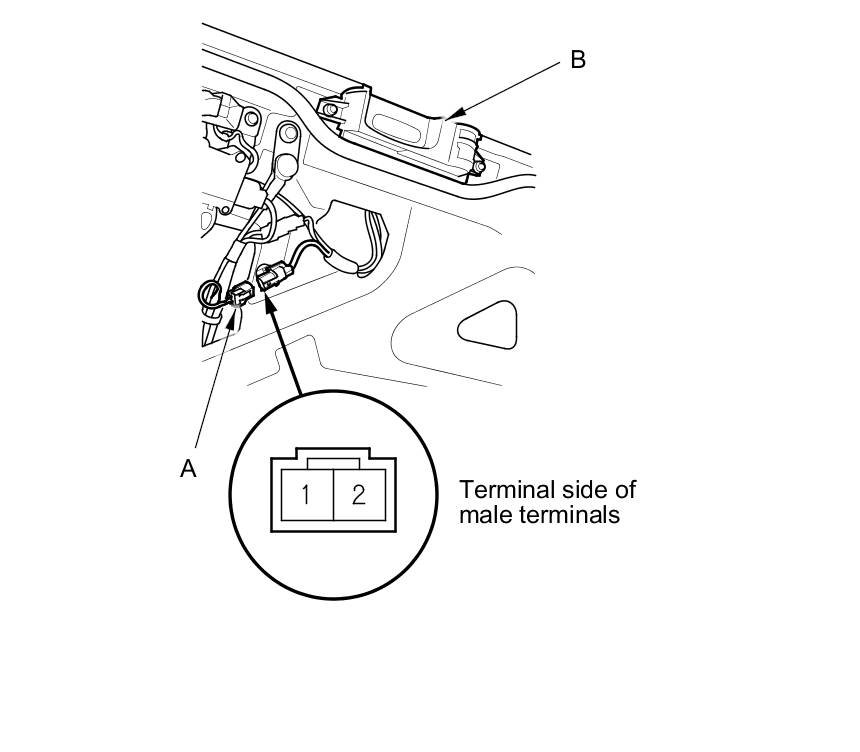

2. Disconnect the 2P connector (A) from the in-bed trunk lid handle switch (B).

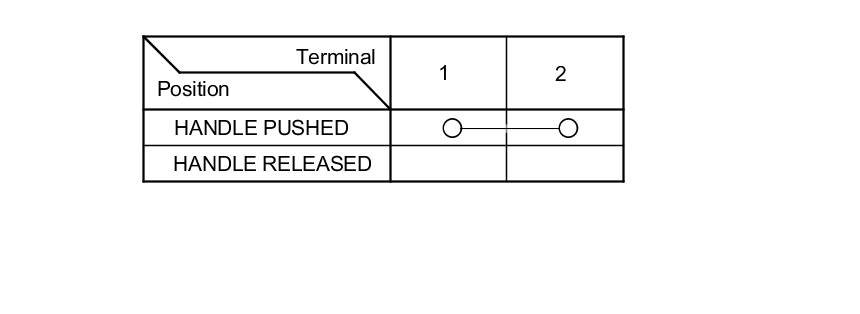

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the in-bed trunk lid opener. In-Bed Trunk Lid Opener Replacement.
