In-Bed Trunk Lid Main Switch Test/Replacement

In-Bed Trunk Lid Main Switch Test/Replacement

1. Remove the glove box Glove Box Removal/Installation.

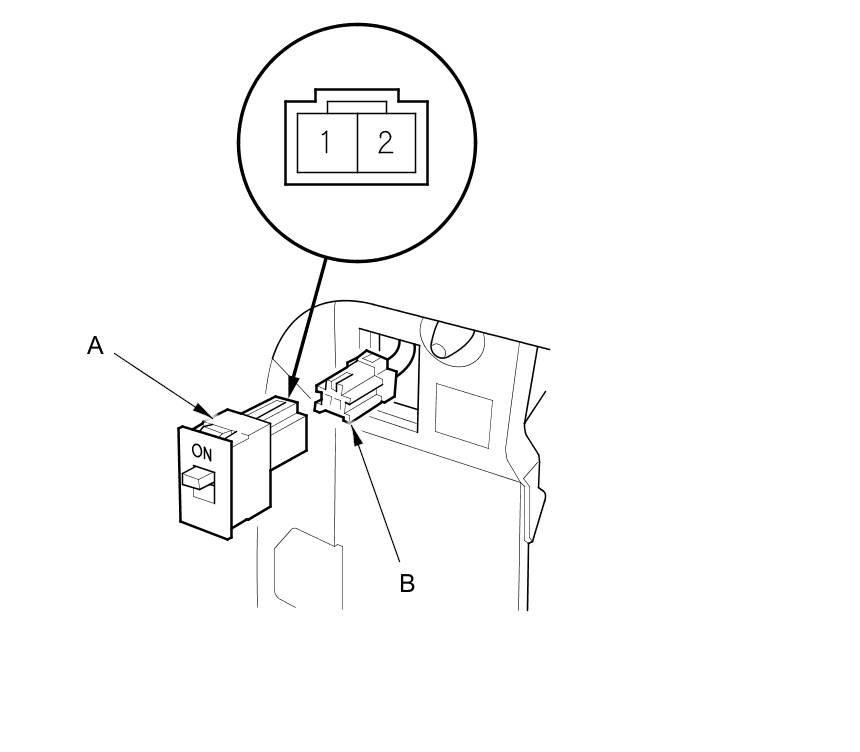

2. Carefully push the main switch (A) out.

3. Disconnect the 2P connector (B) from the main switch.

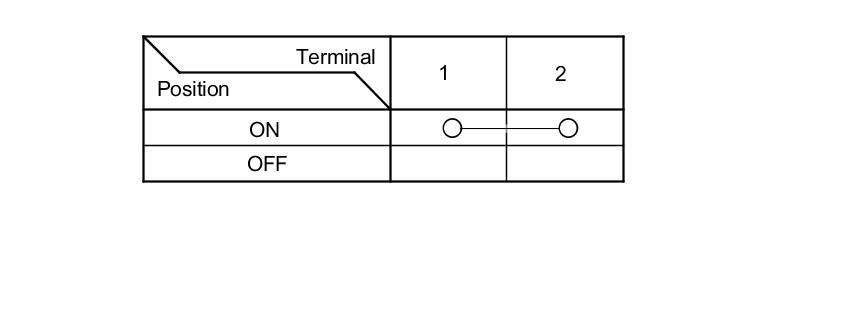

4. Check for continuity between the terminals in each switch position according to the table.

5. If the continuity is not as specified, replace the main switch.

6. Install the switch in the reverse order of removal.
