Rear Panel Insulator Replacement

Rear Panel Insulator Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Put on gloves to protect your hands.
- Take care not to bend or scratch the trim or the panels.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove these items:

- Rear seat assembly Rear Seat Removal/Installation
- C-pillar trims, both sides
- Rear seat belt lower anchor, both sides
- Rear seat side trims, both sides
- Subwoofer, for some models

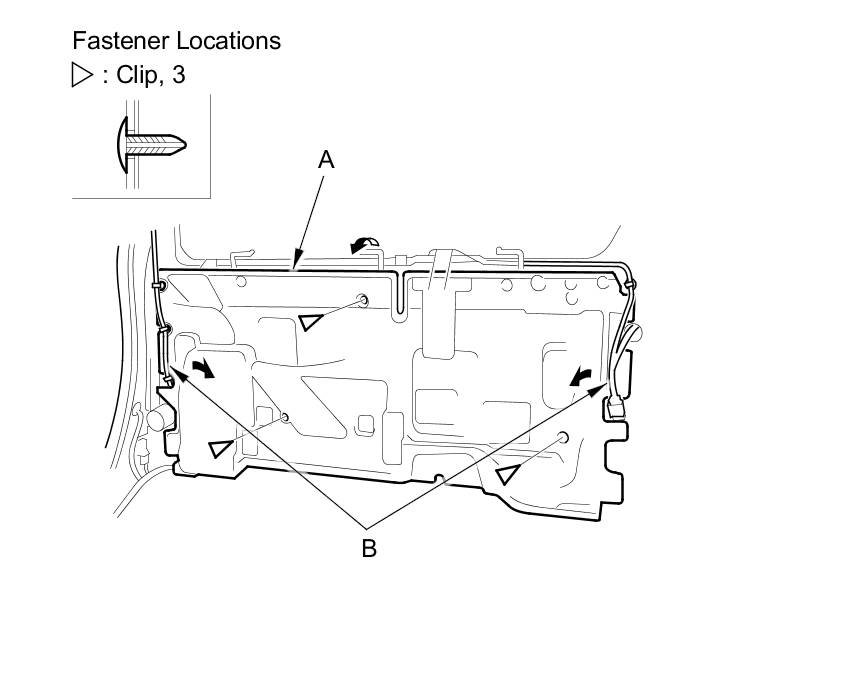

2. Remove the clips, and release the rear panel insulator (A) from the wire harnesses (B) on both sides, then remove the insulator.





3. Install the insulator in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the wire harnesses are not pinched.
