Door Lock Knob Switch Test

Door Lock Knob Switch Test

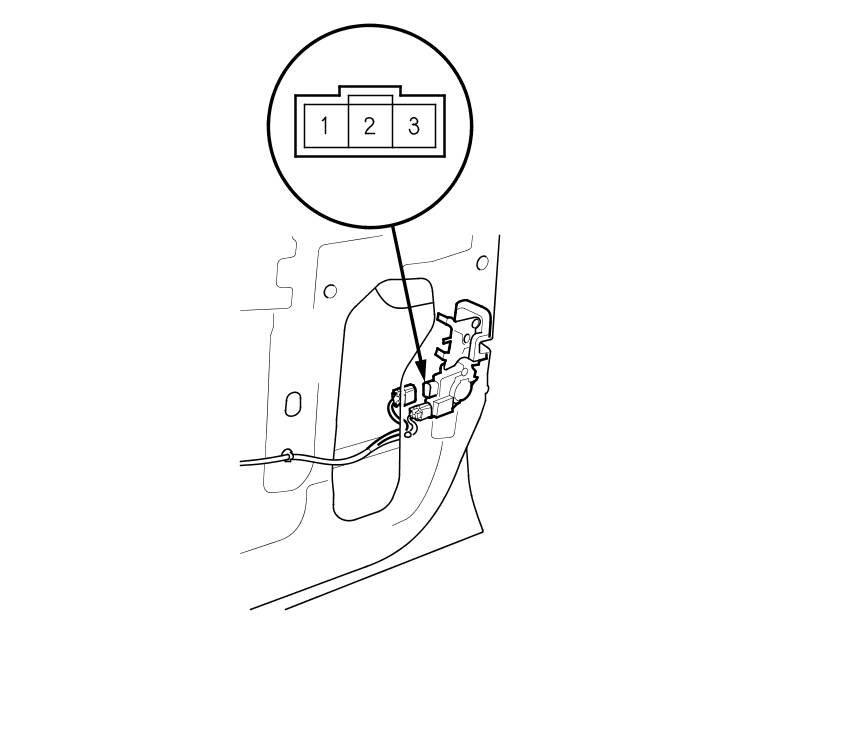

Driver's Door

1. Remove the driver's door panel Service and Repair.

2. Disconnect the 3P connector from the actuator.

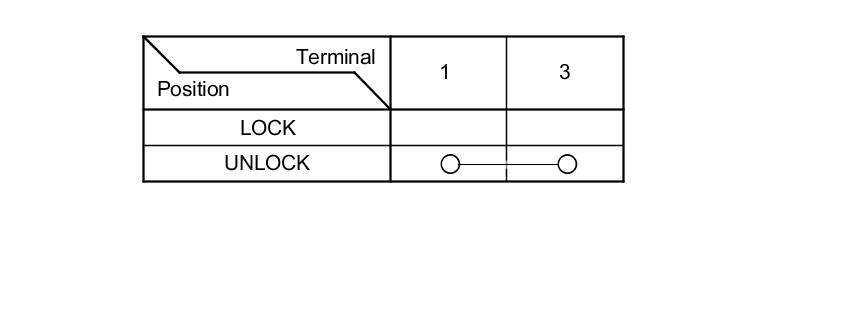

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the driver's door latch assembly Service and Repair.

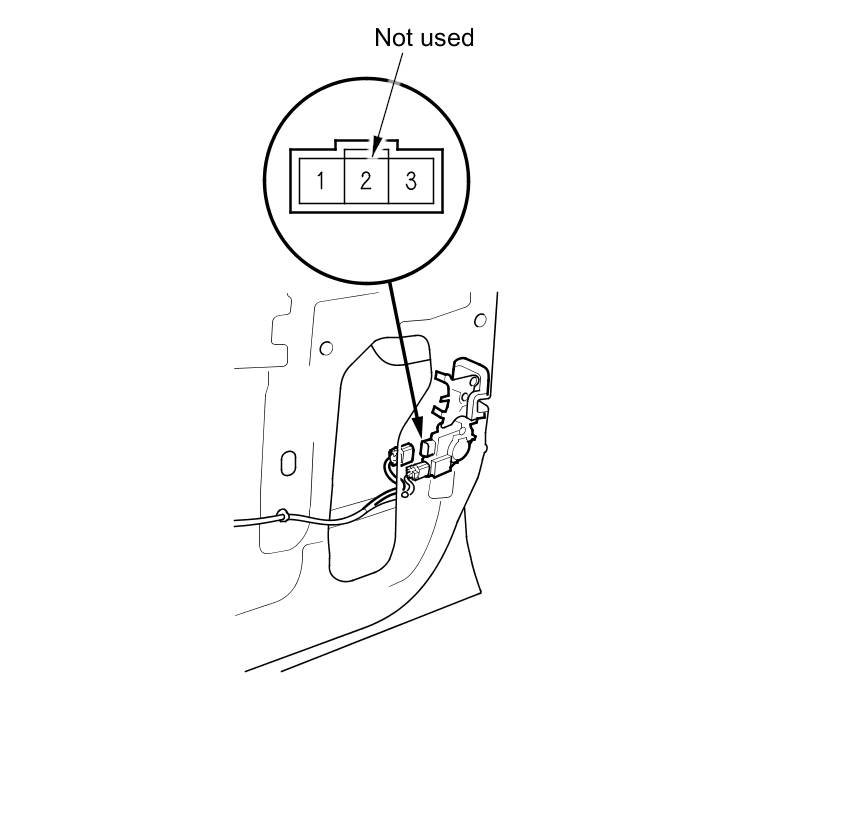

Front Passenger's Door (RTS, RTL, and EX-L models)

1. Remove the front passenger's door panel Service and Repair.

2. Disconnect the 3P connector from the actuator.

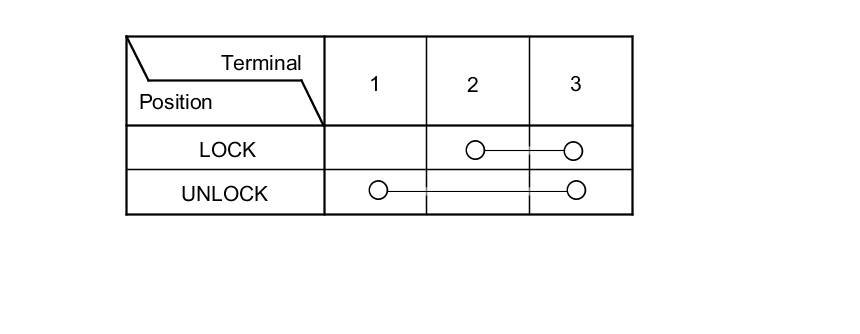

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the passenger's door latch assembly Service and Repair.

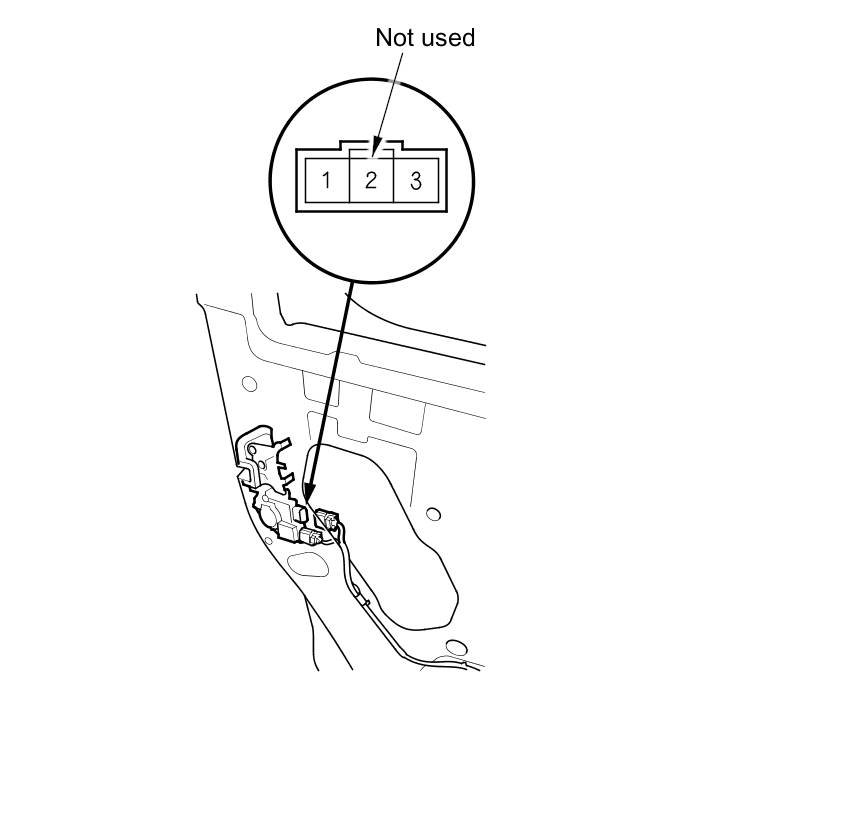

Rear Door (RTS, RTL, and EX-L models)

1. Remove the left or right rear door panel Service and Repair.

2. Disconnect the 3P connector from the actuator.






3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the rear door latch assembly Service and Repair.
