Front Door Window Glass Weatherstrip: Service and Repair

Front Door Glass Outer Molding Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the door or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the power mirror Power Mirror Replacement.

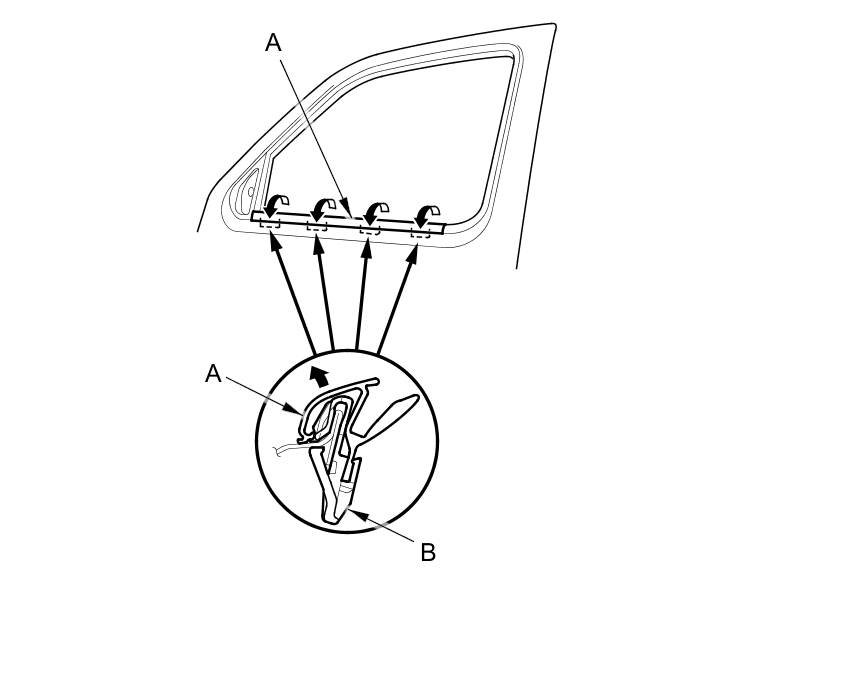

2. Starting at the front, pull up the door glass outer molding (A) to release the clips (B).

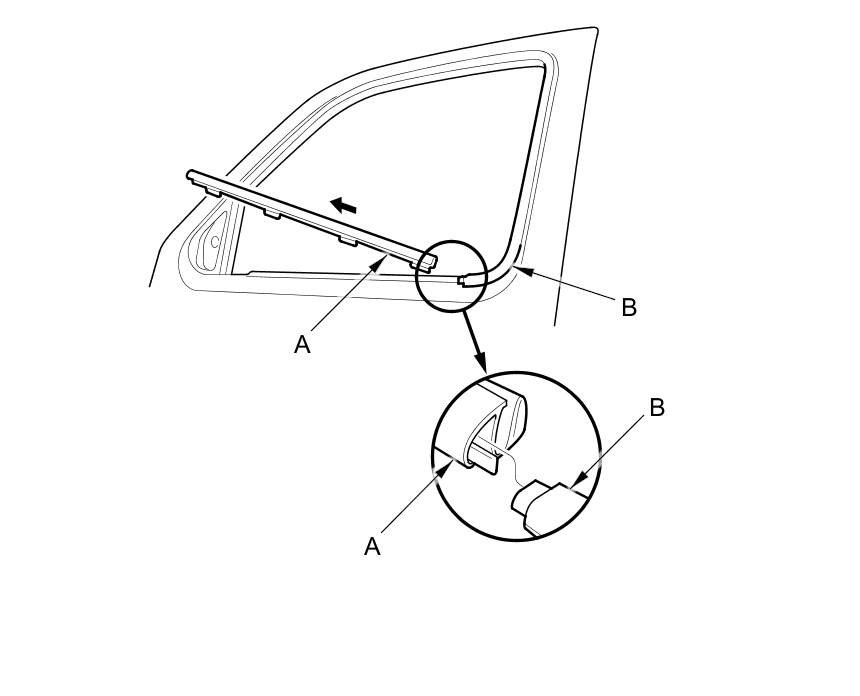

3. Release from the rear portion of the glass outer molding (A) from the glass run channel (B).





4. Install the glass outer molding in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the rear portion of the glass outer molding is connected to the glass run channel properly.
