Brake Pedal Assy: Service and Repair




Brake Pedal Replacement

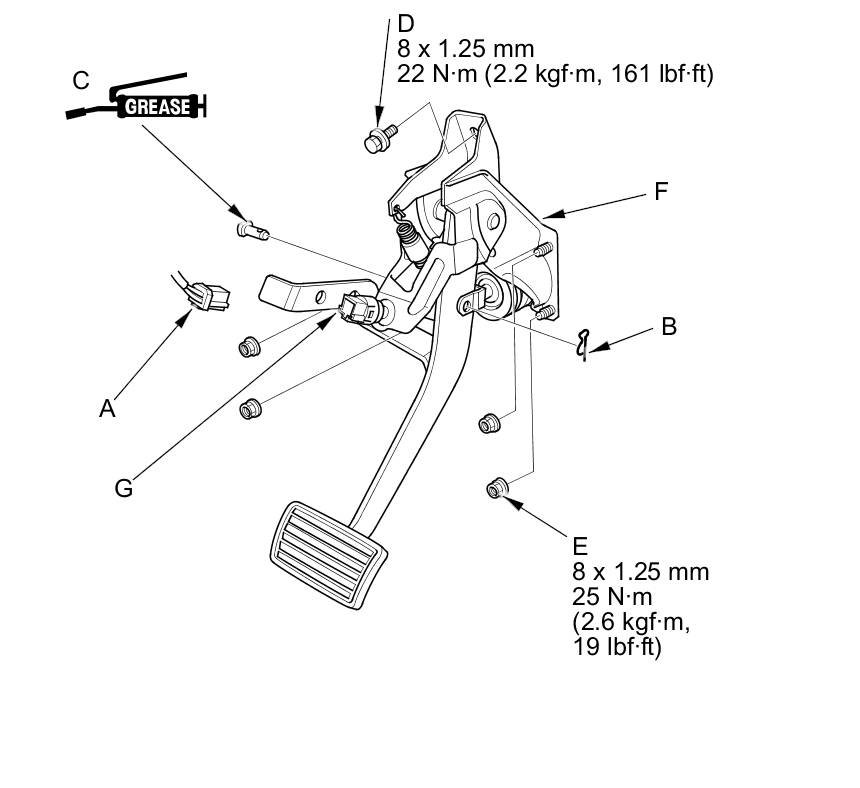

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

2. Disconnect the brake pedal position switch connector (A).





3. Remove the lock pin (B) and clevis pin (C).

4. Remove the brake pedal bracket mounting bolt (D) and nuts (E).

5. Remove the brake pedal with bracket (F).

6. Remove the brake pedal position switch (G) by turning it 45° counterclockwise.

7. Install in the reverse order of removal.

8. Do the brake pedal and brake pedal position switch adjustment Adjustments.
