Daytime Running Light Bulb Replacement

Daytime Running Light Bulb Replacement

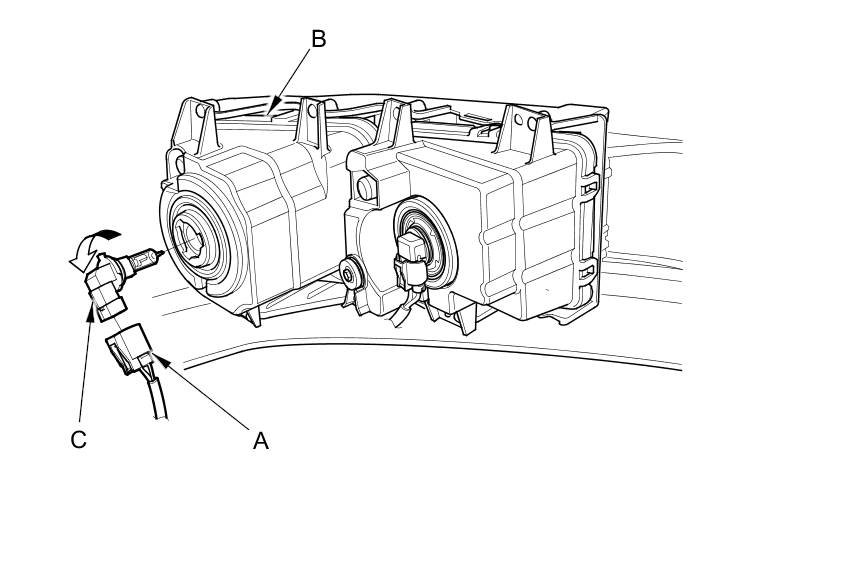

1. Remove the inner fender Front Inner Fender Replacement.

2. Disconnect the 2P connector (A) from the daytime running light (B).

3. Turn the daytime running light bulb socket (C) 45 ° counterclockwise to remove it from the housing.

4. Install new a bulb in the reverse order of removal.

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with alcohol.
