Intake Air Duct: Service and Repair

Air Intake Duct Removal/Installation

1. Remove the air cleaner Service and Repair.

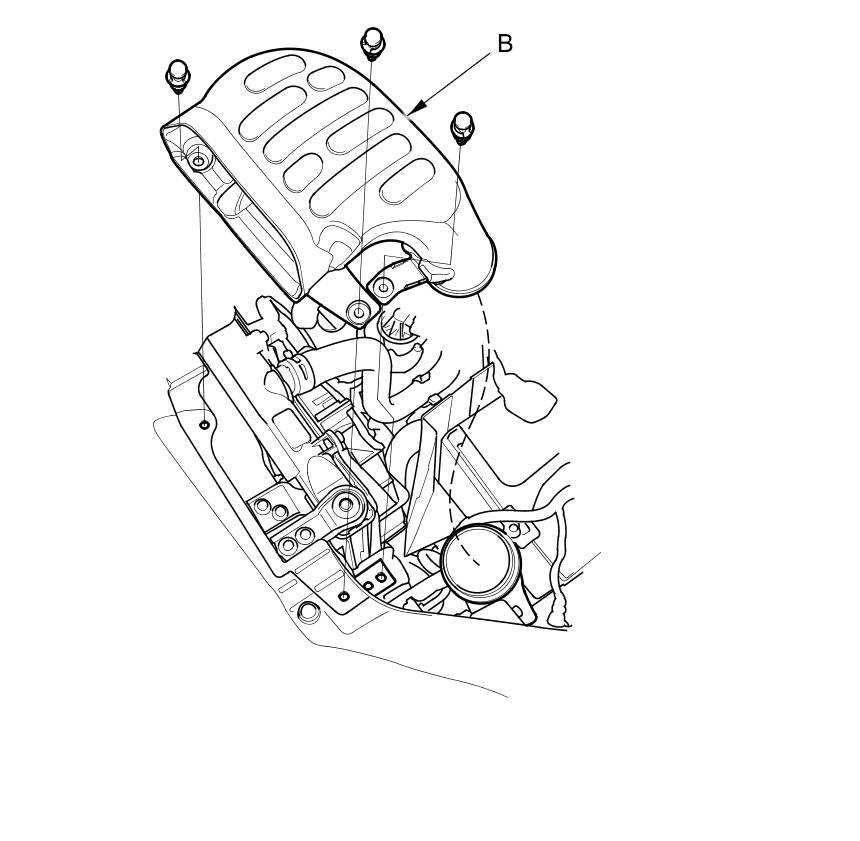

2. Remove air intake duct B.

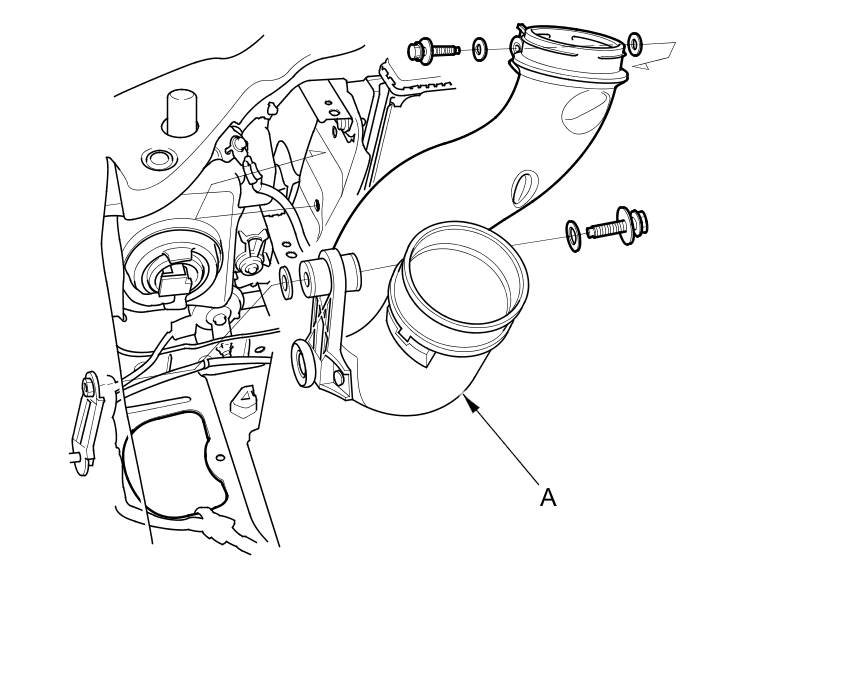

3. Remove air intake duct A.

4. Install the parts in the reverse order of removal.
