Back Power Window Position Switch Test

Back Power Window Position Switch Test

1. Remove the rear panel trim Rear Panel Insulator Replacement.

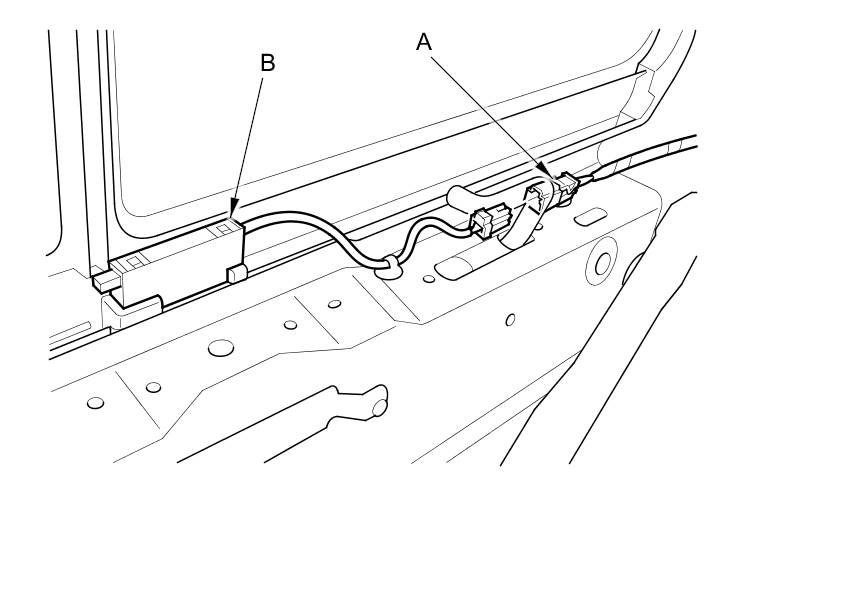

2. Disconnect the 2P connector (A) from the back power window position switch (B).

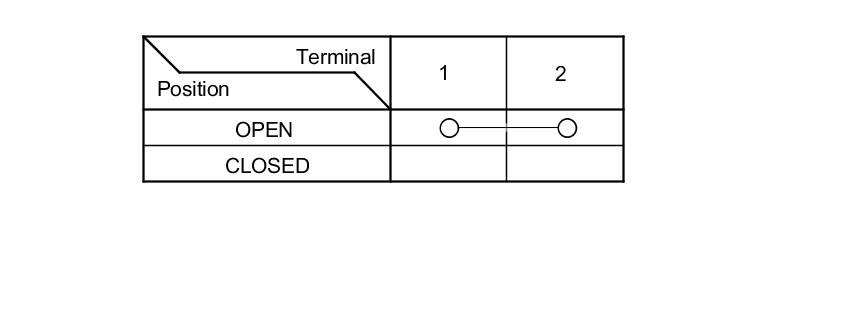

3. Check for continuity between the terminals in each back power window position according to the table.

4. If the continuity is not as specified, replace the switch.

5. Install the switch in the reverse order of removal.
