Garage Door Opener Transmitter: Service and Repair

GARAGE DOOR OPENER REPLACEMENT

REMOVAL PROCEDURE

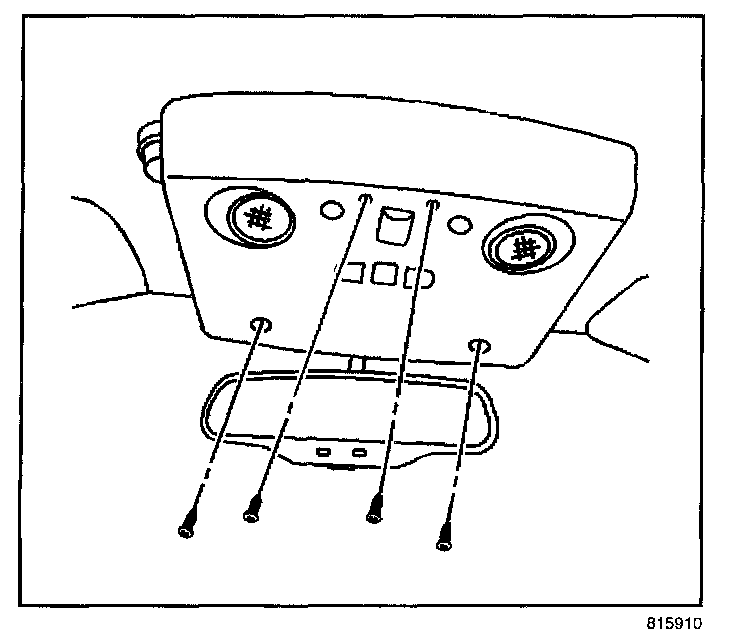

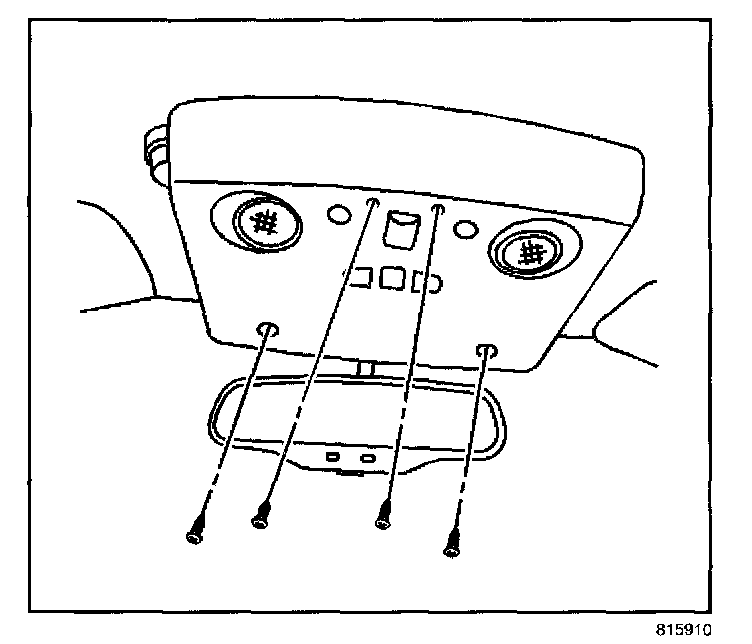

1. Remove the overhead console to expose the garage door opener panel.

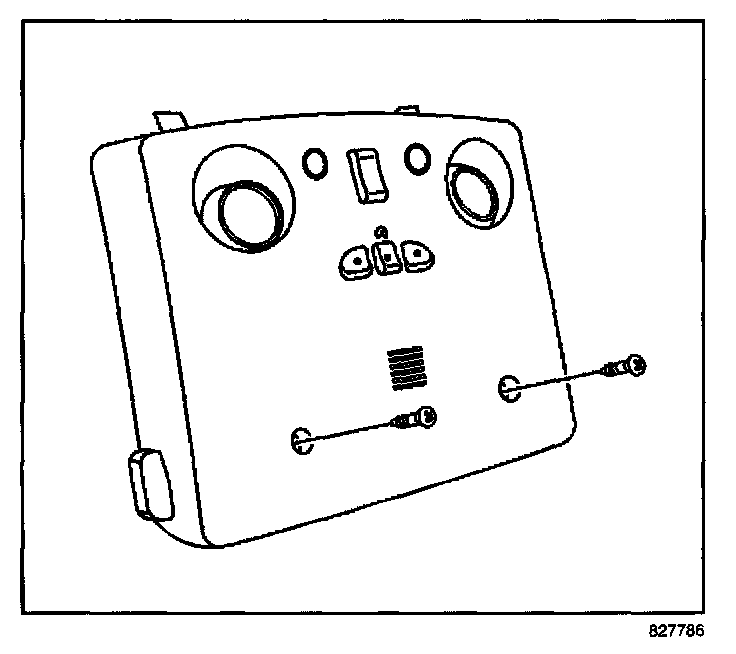

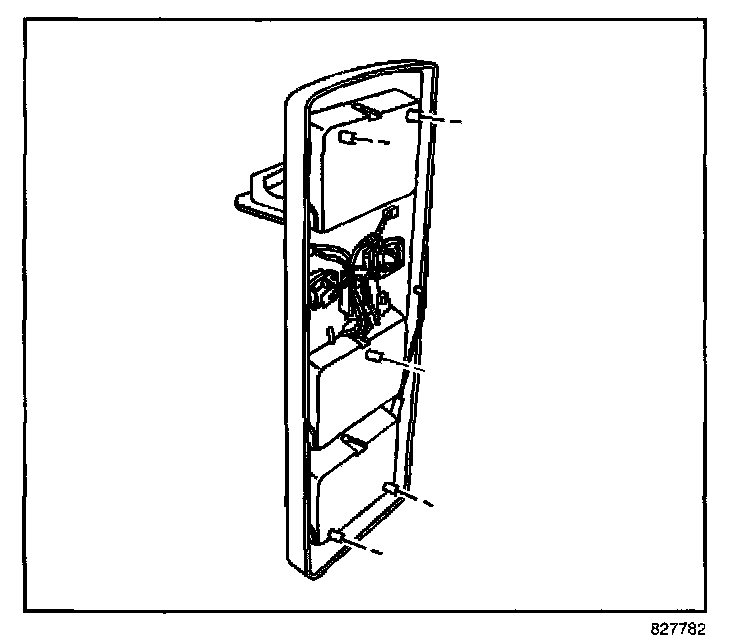

2. Remove the screws from the garage door module.

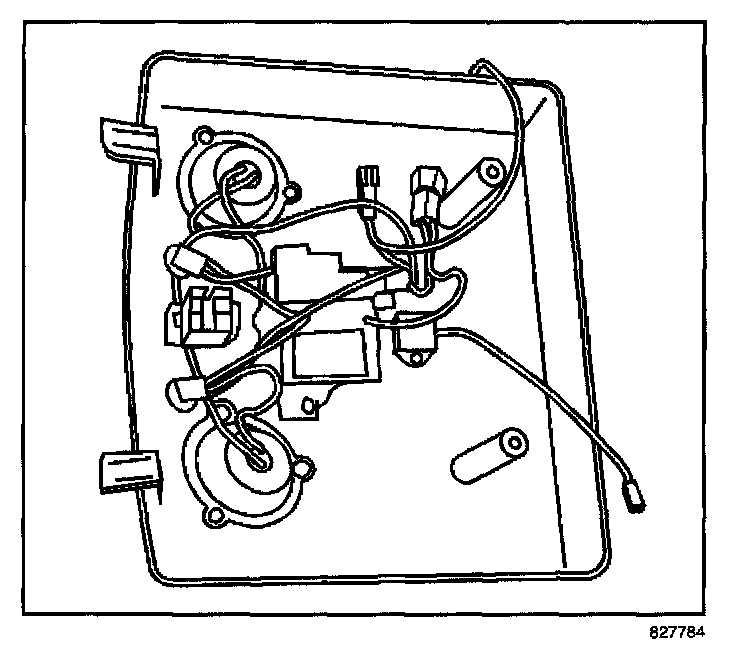

3. Disconnect the electrical connector from the garage door opener.
4. Remove the button and module assembly from the over head console.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

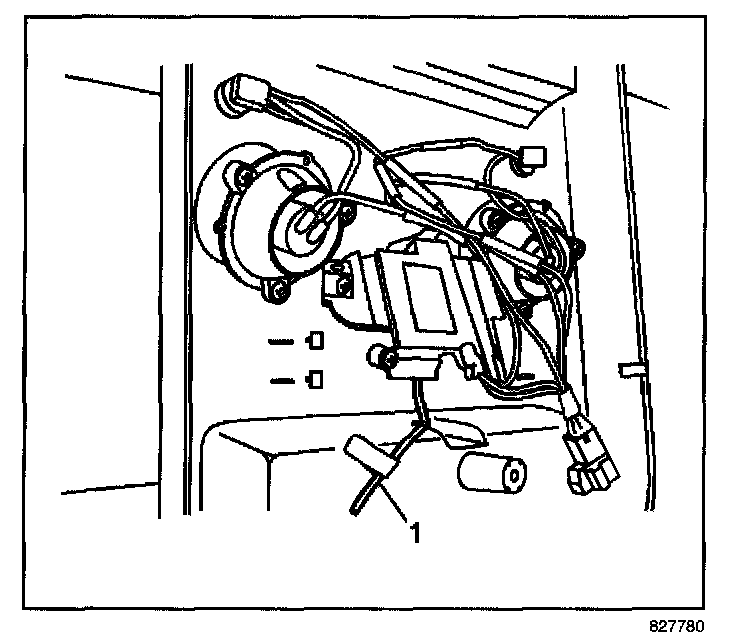

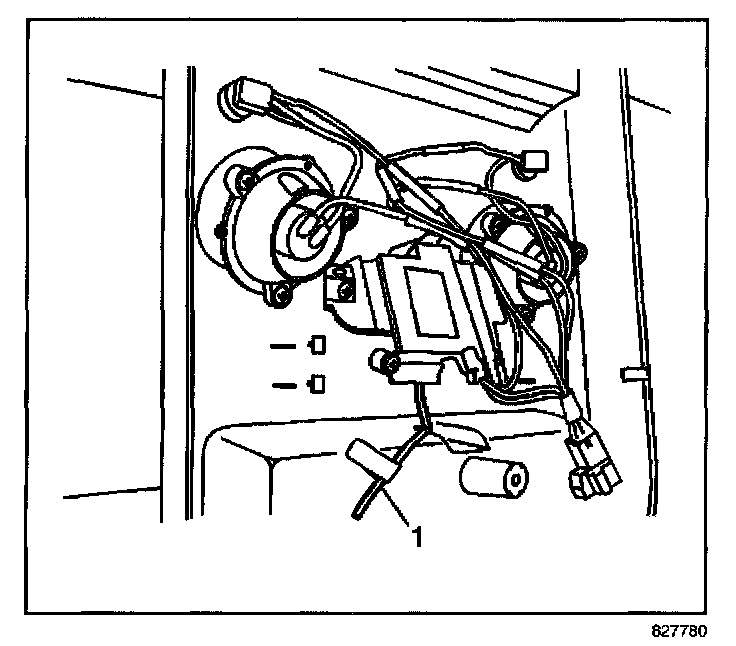

1. Install the button and module assembly to the overhead console (1).




2. Align the module and screws into the overhead console.

Tighten
Tighten the screws to 8 N.m (7 lb in).




3. Connect the individual connectors to the garage door module.




4. Fasten the overhead console to the headliner.
