Parking Brake Lever: Service and Repair

PARK BRAKE RELEASE HANDLE ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE

CAUTION: REFER TO BATTERY DISCONNECT CAUTION IN SERVICE PRECAUTIONS.




1. Disconnect the negative battery cable.

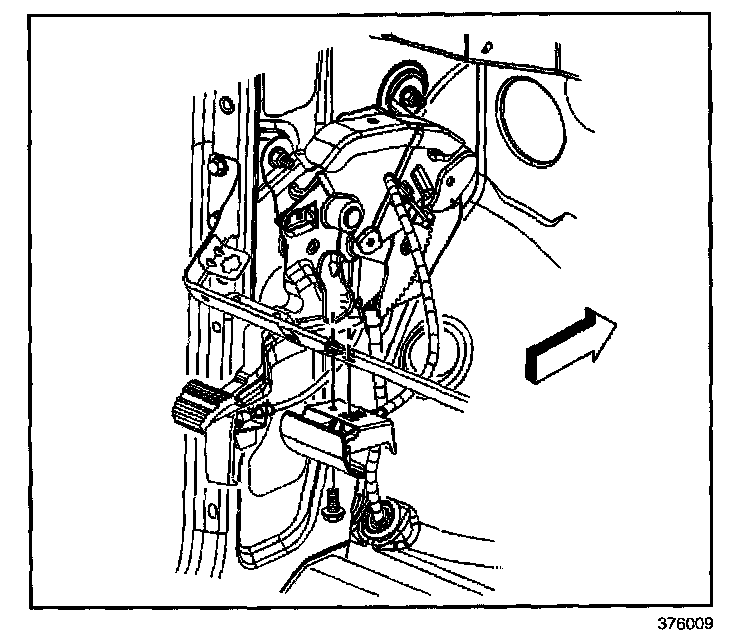

2. Remove the park brake release lever mounting bolt.
3. Remove the park brake release lever handle from the knee bolster.
4. Remove the MID-Bussed Electrical Center from the bracket.
5. Remove the park brake release cable housing from the pedal assembly.
6. Remove the park brake release cable from the pedal assembly.
7. Note the routing of the cable as you remove the park brake release handle assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the park brake release handle assembly to the vehicle. Install the cable using the same routing as the original cable.
2. Install the park brake release cable to the pedal assembly.
3. Install the park brake release cable housing to the pedal assembly.
4. Install the MID-Bussed Electrical Center to the bracket.

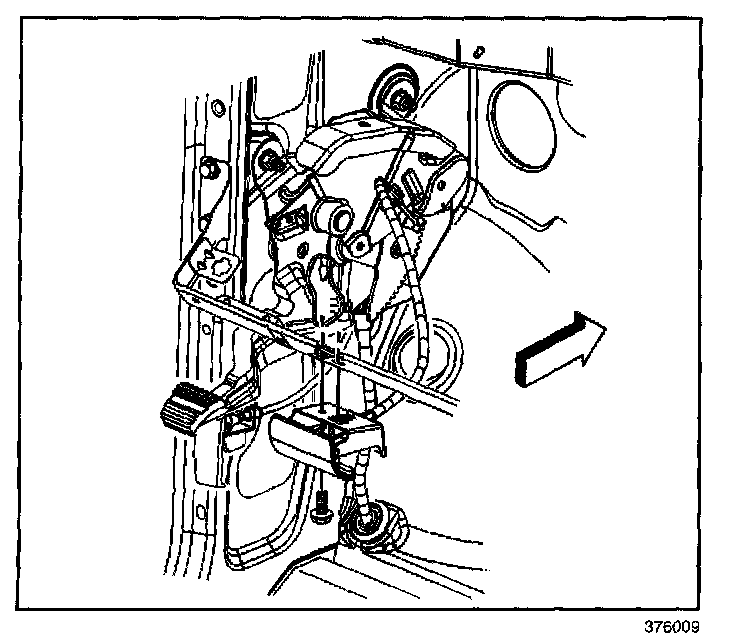

5. Install the park brake release lever handle to the knee bolster.

NOTE: Refer to Fastener Notice in Service Precautions.

6. Install the park brake release lever mounting bolt.

Tighten
Tighten the bolt to 25 N.m (18 lb ft).

7. Connect the negative battery cable.
