Deflector Replacement - Instrument Panel Air - Center

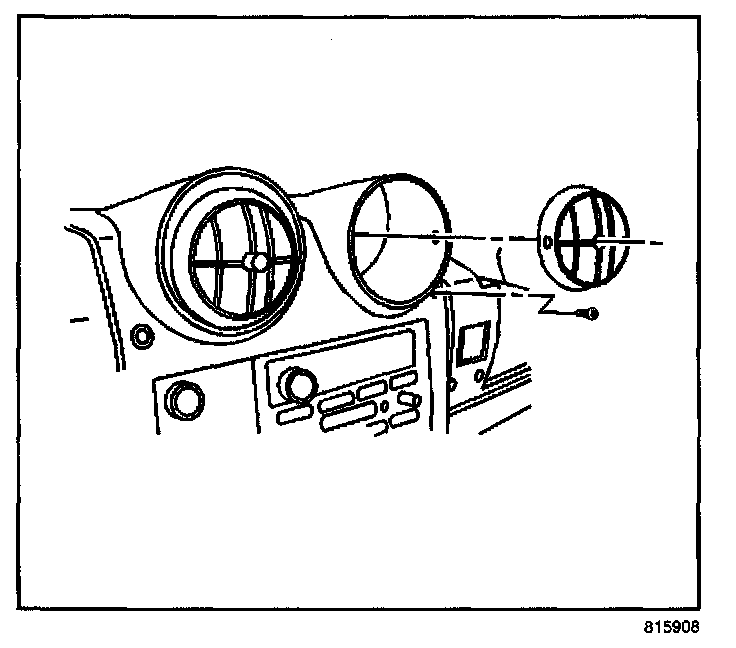

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - CENTERREMOVAL PROCEDURE Using a flat bladed tool, remove the air deflector louver from the instrument panel.

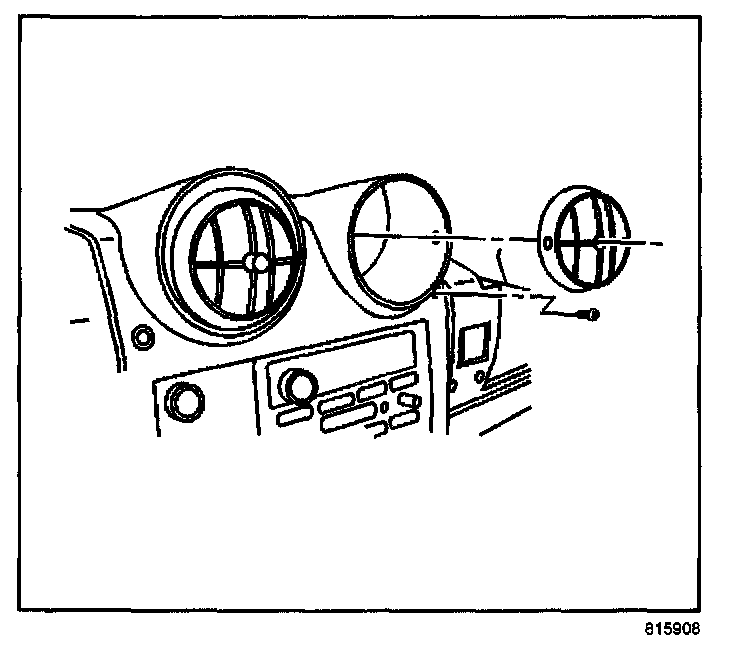

INSTALLATION PROCEDURE 1.
Align the air deflector into the opening in the trim panel I/P center.
2.
Push the air outlet into the trim panel until the deflector snaps into place.
