Deflector Replacement - Instrument Panel Air - Right

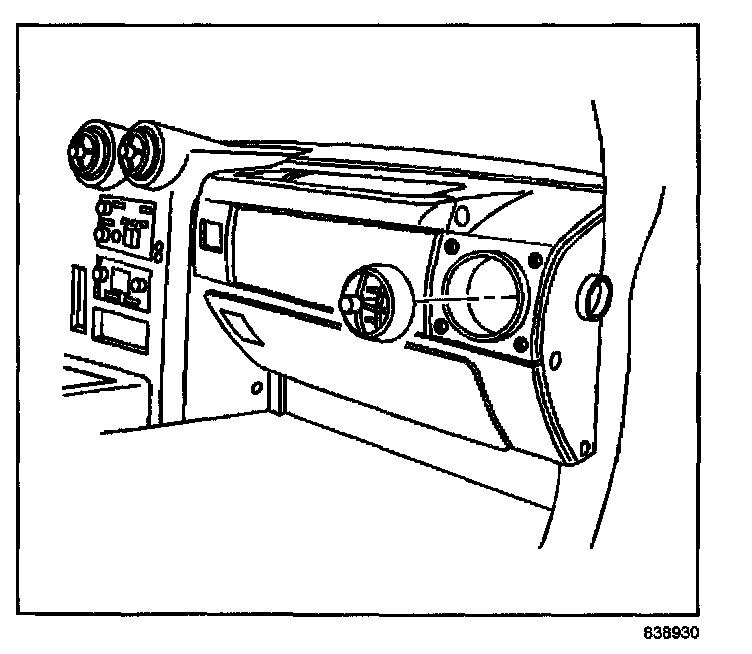

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - RIGHTREMOVAL PROCEDURE 1.
Use a flat bladed tool in order to remove the air deflector from the trim panel.
2.
Remove the air reflector louver.

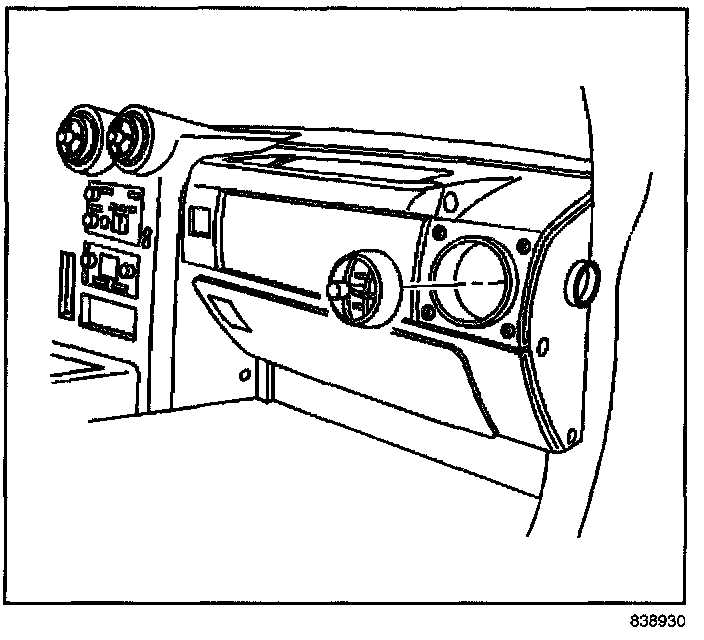

INSTALLATION PROCEDURE 1.
Align the air deflector into the opening in the trim panel accessory right.
2.
Push the air outlet into the trim panel until the deflector snaps into place.
