Compartment Replacement - Instrument Panel (I/P)

COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P)

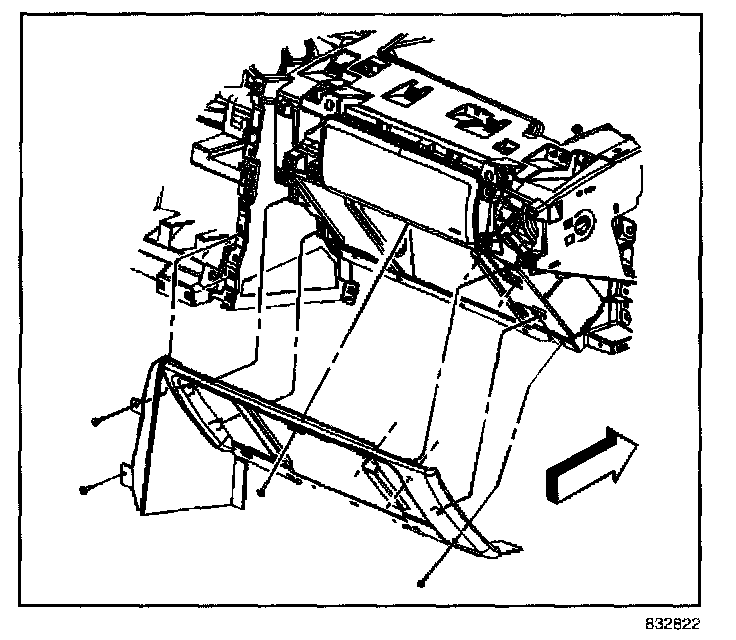

REMOVAL PROCEDURE




1. Loosen and move center console reward for access to compartment trim panel. Refer to Console Replacement.
2. Remove compartment door from I/P.




3. Remove I/P compartment from I/P.

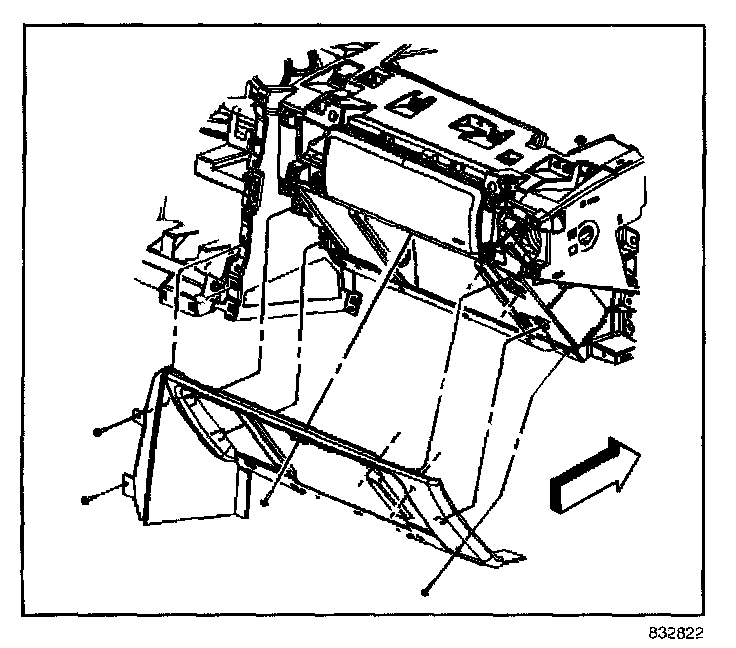

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install I/P compartment to I/P.

Tighten
Tighten the screws to 1.6 N-m (14 lb in).




2. Install I/P compartment door to I/P.

Tighten
Tighten the screws to 1.6 N.m (14 lb in).

3. Align and move forward center console in place and fasten console to center console bracket. Refer to Console Replacement.
