PCV Valve Hose: Service and Repair

CRANKCASE VENTILATION HOSES/PIPES REPLACEMENT

REMOVAL PROCEDURE




1. Remove the engine sight shield.

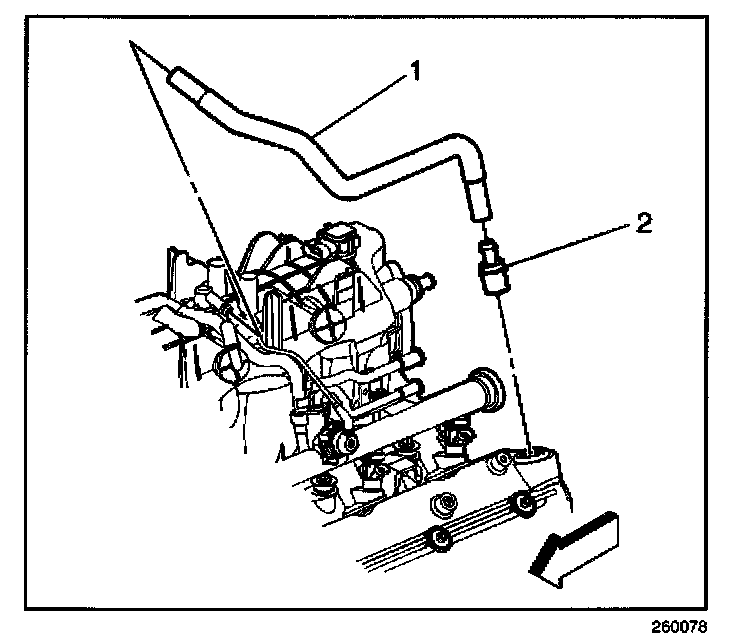

2. Remove the positive crankcase ventilation (PCV) tube (1) from the intake manifold and valve rocker arm cover.
3. Remove the PCV valve (2) from the PCV tube (1).
4. Remove the vent hose.
5. Replace the hose/tube as necessary.

INSTALLATION PROCEDURE




1. Install the hose/tube as necessary.
2. Install the vent hose.
3. Install the PCV valve (2) to the tube (1).
4. Install the PCV tube (1) to the intake mannitol and valve rocker arm cover.
5. Install the engine sight shield.
