OnStar Microphone Replacement
ONSTAR MICROPHONE REPLACEMENTREMOVAL PROCEDURE 1.

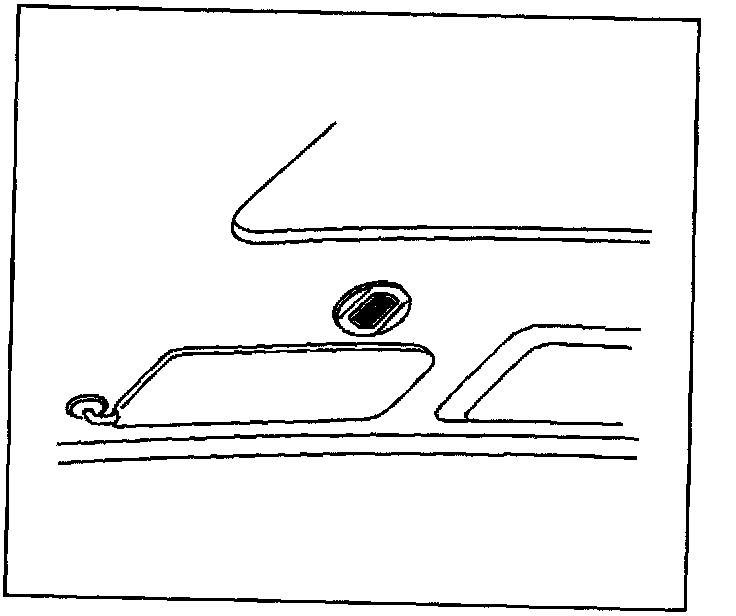

Twist and remove the OnStar(R) microphone bezel from the headliner.
2.

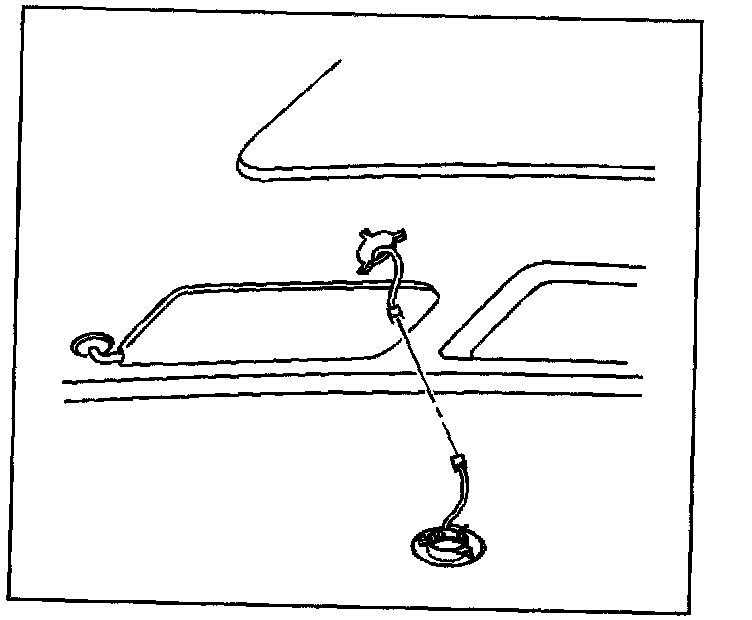

Disconnect the microphone connector from the jumper harness.
INSTALLATION PROCESS 1.
Connect the electrical connection to the OnStar(R) microphone.
2.

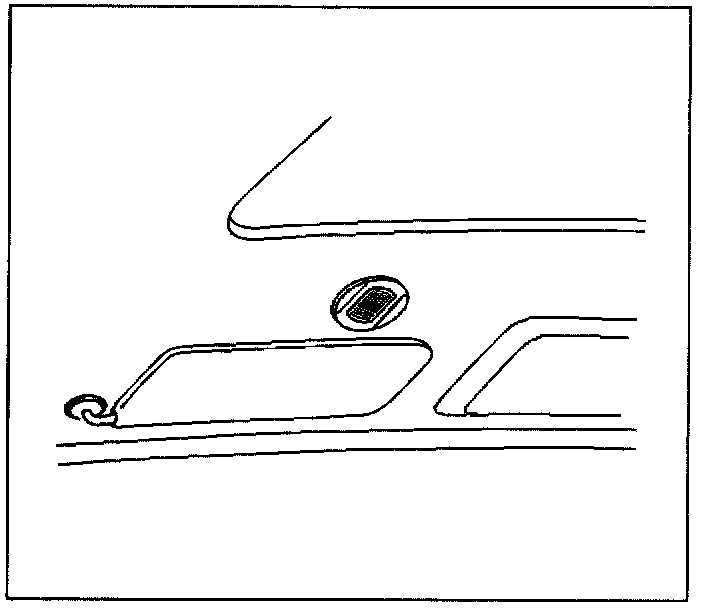

Mount the OnStar(R) microphone and bezel to the headliner.
3.
Check OnStar(R) microphone for proper operation.
