Sunshade Replacement

SUNSHADE REPLACEMENT

REMOVAL PROCEDURE

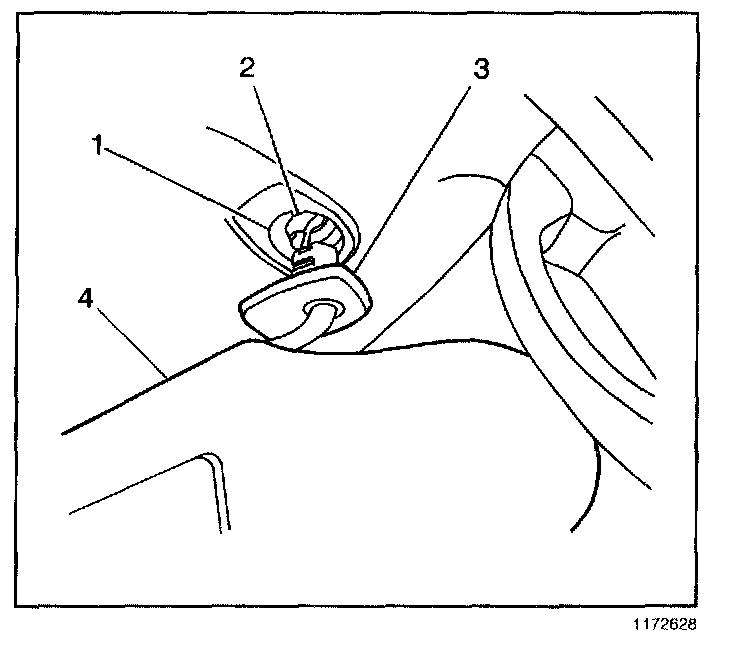

1. Insert a suitable flat-bladed tool into the access hole to disengage the primary retainer.




2. Using firm upward pressure, push the sunshade elbow (3) up and rotate it to unlock the secondary retainer (2) from the body.
When the secondary retainer (2) is disengaged from the body, the elbow (3) and retainer (2) will be recessed into the bezel (1) approximately 1/8 in (12.5 mm).




3. Pull down to remove the sunshade (4) and bezel (3) as a complete assembly.
4. Disconnect the electrical connection for the vanity mirror.

INSTALLATION PROCEDURE




1. Connect the electrical connector for the vanity mirror.
2. Pull outward on the bezel (1) and rotate until the elbow (3) and bezel are flush with each other.




3. Align the sunshade bezel (3) to the opening in the headliner (1) and the locking ring (2).




4. Push the sunshade up until it locks into the locking ring and body.
An audible click will be heard.
