Cruise Control Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS
Perform the following in order to avoid a misdiagnosis:
- Inspect for proper operation of the brake lamps.
- EMI on the vehicle speed sensor signal circuit may cause erratic cruise control operation

CONDITIONS FOR ENABLING CRUISE CONTROL
- The vehicle speed is greater than 40 km/h (25 mph).
- The vehicle is not in PARK. REVERSE, NEUTRAL, or 1st gear.
- The system voltage is within 9 volts and 16 volts.

TEST DESCRIPTION

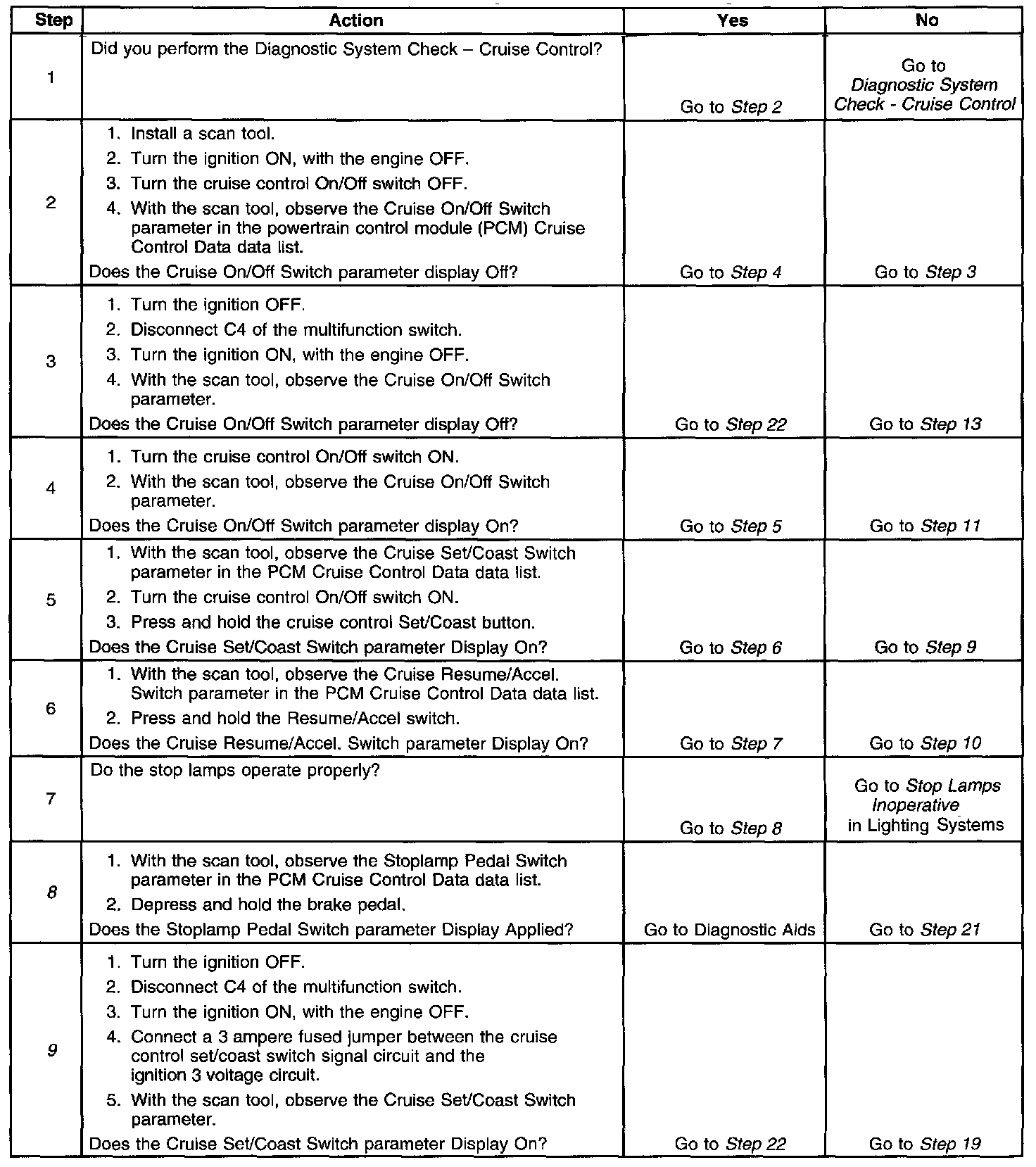

Steps 1-9:

Steps 10-19:

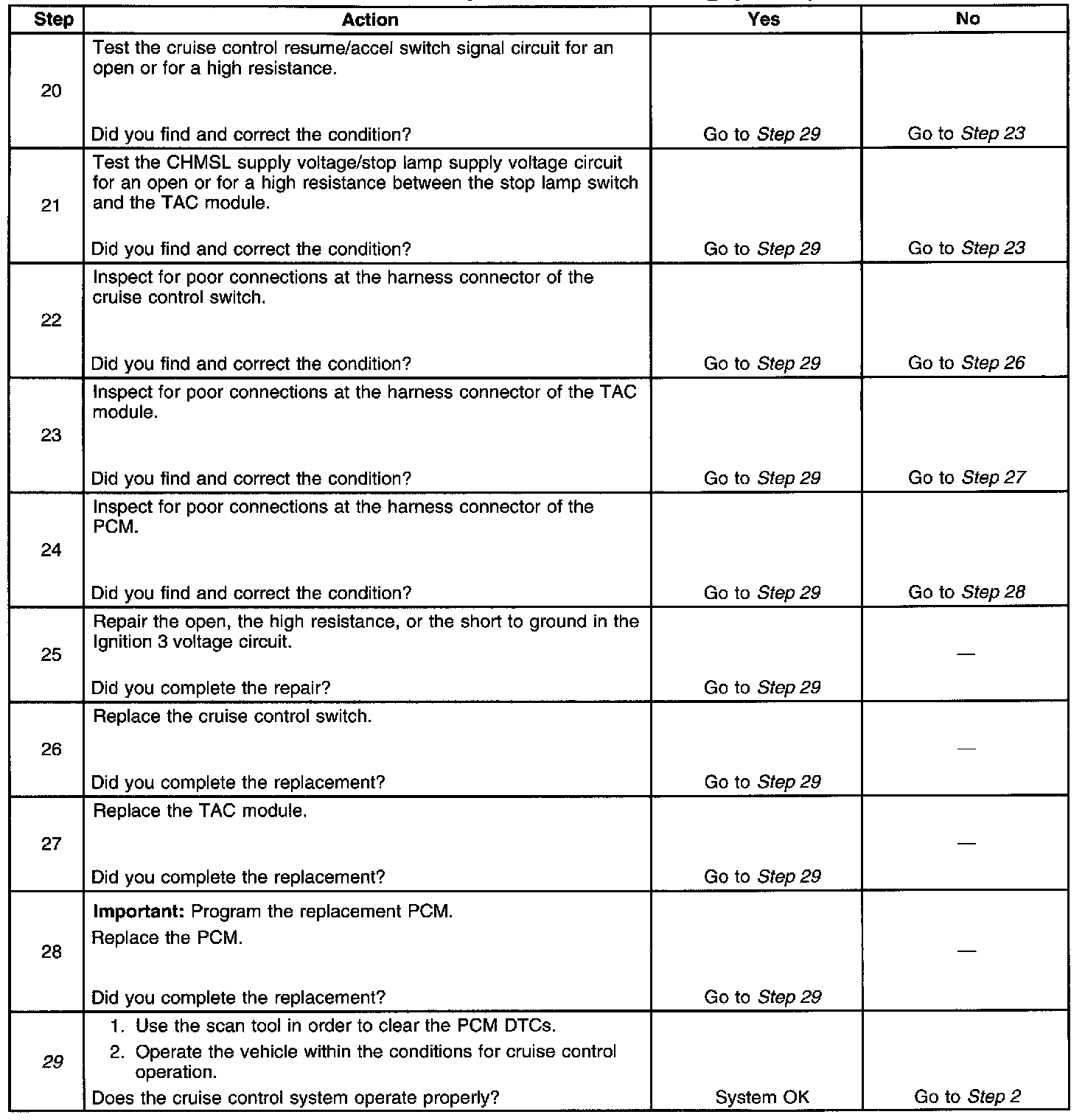

Steps 20-29:

The numbers below refer to the step numbers on the diagnostic table.
8. This step tests the CHMSL supply voltage/stop lamp supply voltage circuit for an open or for a high resistance between the stop lamp switch and the TAC module.
9. This step tests the cruise control set/coast switch signal circuit for an open or for a high resistance.
10. This step tests the cruise control resume/accel switch signal circuit for an open or for a high resistance.
11. This step tests the ignition 3 voltage circuit for an open, for a short to ground, or for a high resistance.
29. DTCs will set in the PCM when you perform this table.
