HVAC System - Automatic

DIAGNOSTIC SYSTEM CHECK - HVAC SYSTEMS - AUTOMATIC

TEST DESCRIPTION

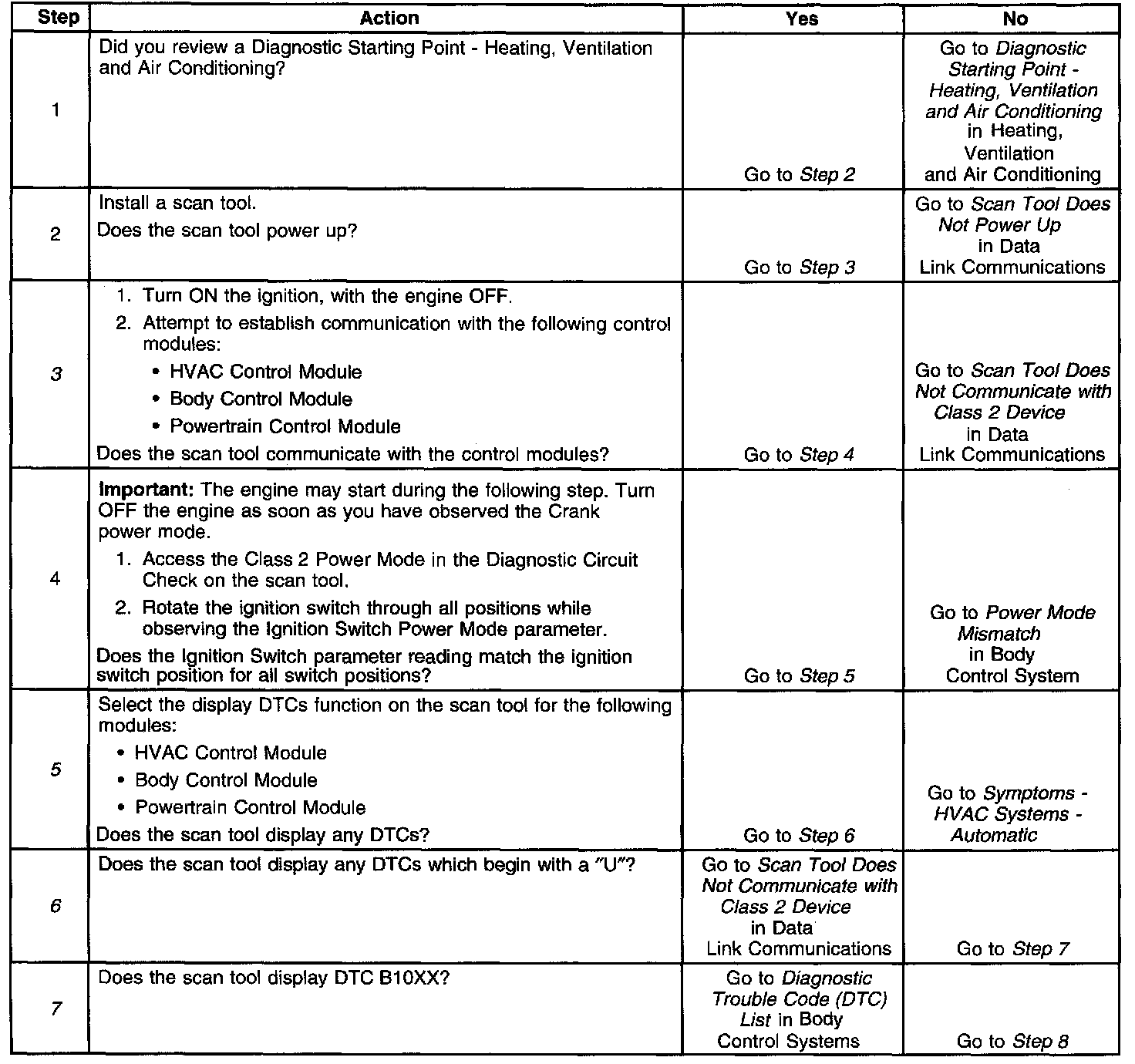

Steps 1-7:

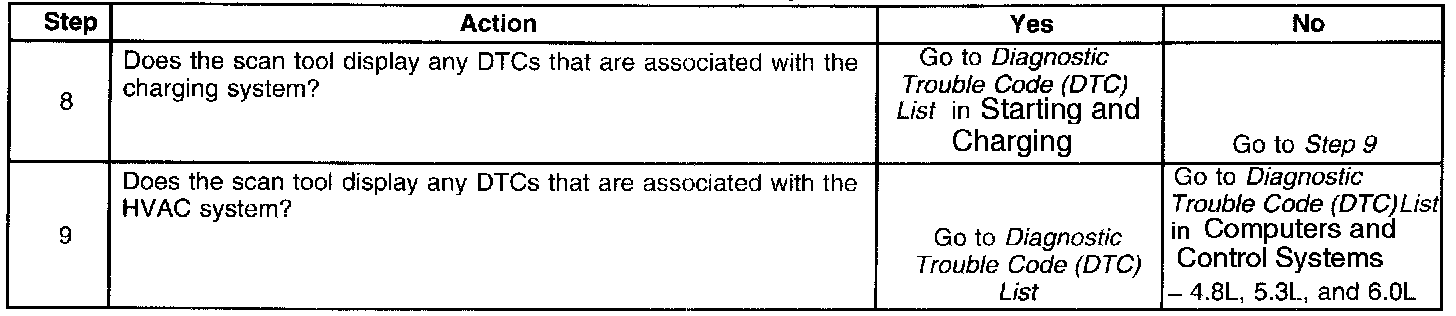

Steps 8-9:

The numbers below refer to the step numbers on the diagnostic table.
3. Lack of communication may be due to a malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
5. Determine if the HVAC control module, body control module, or power train control module have set DTCs which may affect HVAC operation are present.
6. The presence of DTCs which begin with "U" indicate some offer module is not communicating.
7. Answer Yes if the first three characters of the DTC name begins with B10; regardless of the last two characters.
