68. Converter Housing Installation
CONVERTER HOUSING INSTALLATIONTOOLS REQUIREDJ 41510 T-50 Plus Bit
1.

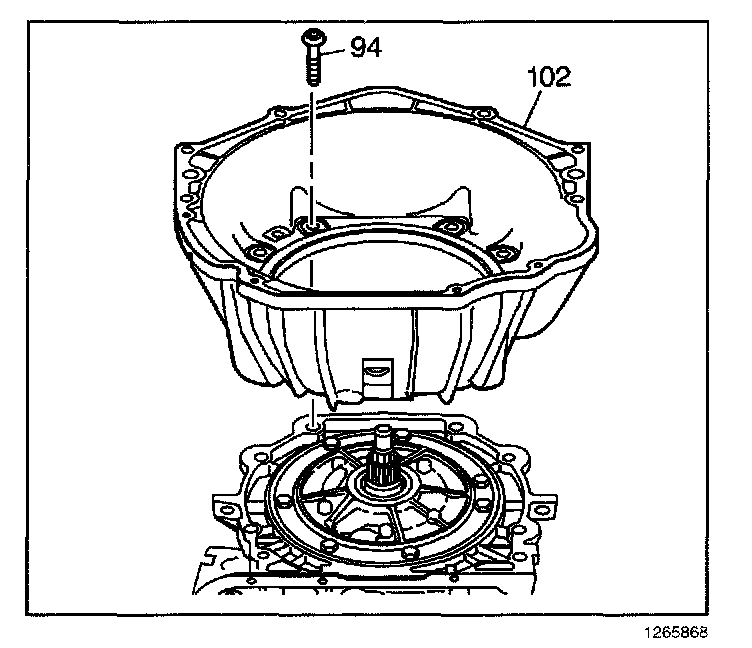

Install the converter housing (102).
NOTE: Refer to Fastener Notice in Service Precautions.
2.
Install the converter housing bolts (94) to the transmission case. Use the J 41510.
Tighten Tighten the converter housing bolts (94) to
65-75 N.m (48-55 lb ft).
