Vent Hose Connector Replacement

VENT HOSE CONNECTOR REPLACEMENT - FRONT DRIVE AXLE

REMOVAL PROCEDURE




1. Raise the vehicle. Refer to vehicle Lifting.
2. Remove the engine protection shield.

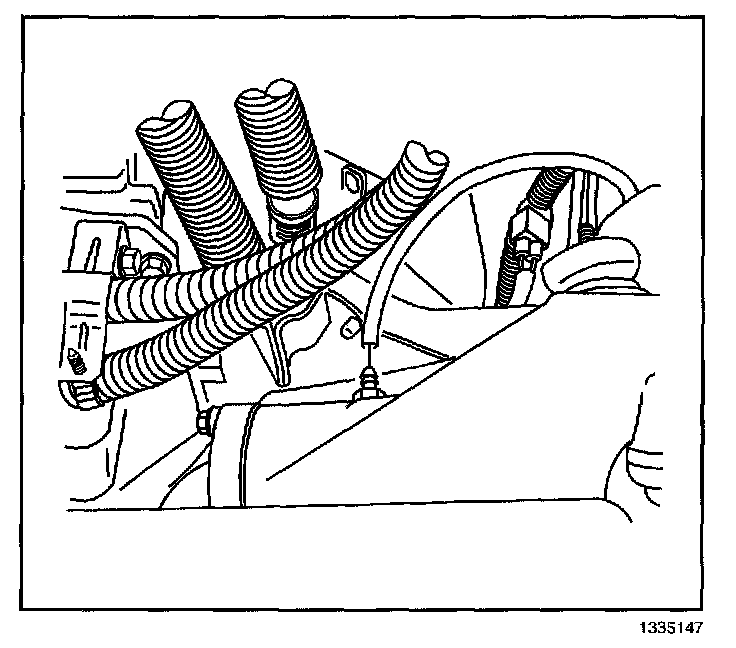

3. Disconnect the vent hose from the vent hose connector.

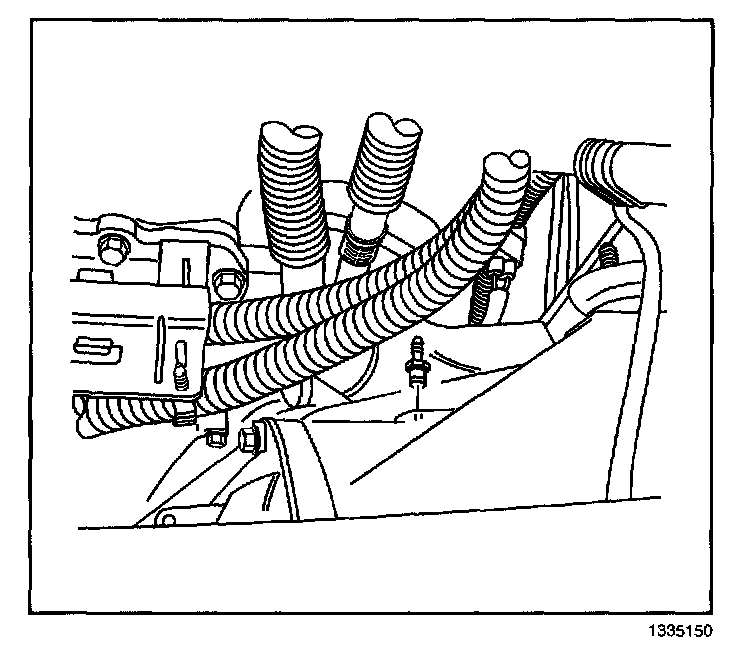

4. Remove the vent hose connector.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

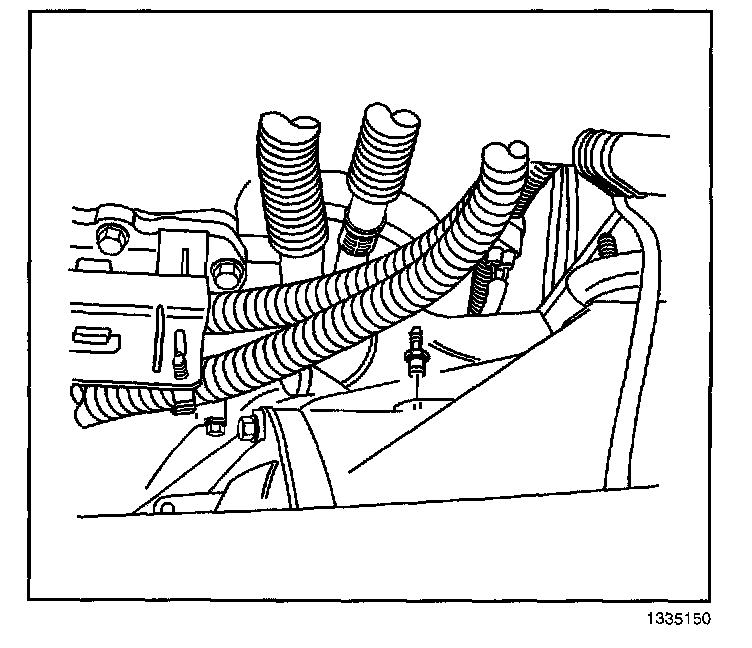

1. Install the vent hose connector.

Tighten
Tighten the vent hose connector to 20 N.m (15 lb ft).

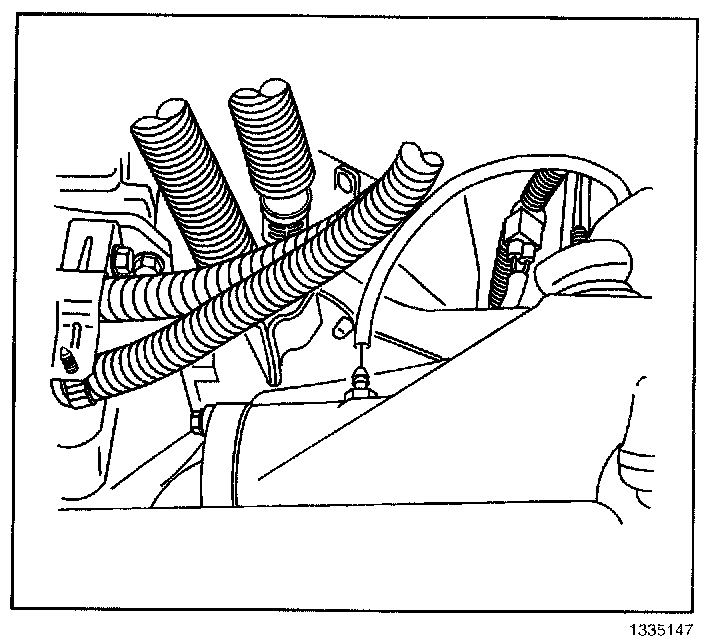

2. Connect the vent hose to the vent hose connector.
3. Install the engine protection shield.
4. Lower the vehicle.
