Park Brake Cable Guide Replacement

PARK BRAKE CABLE GUIDE REPLACEMENT

REMOVAL PROCEDURE




1. Release the parking brake.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
3. Remove the park brake cable guide bolt.

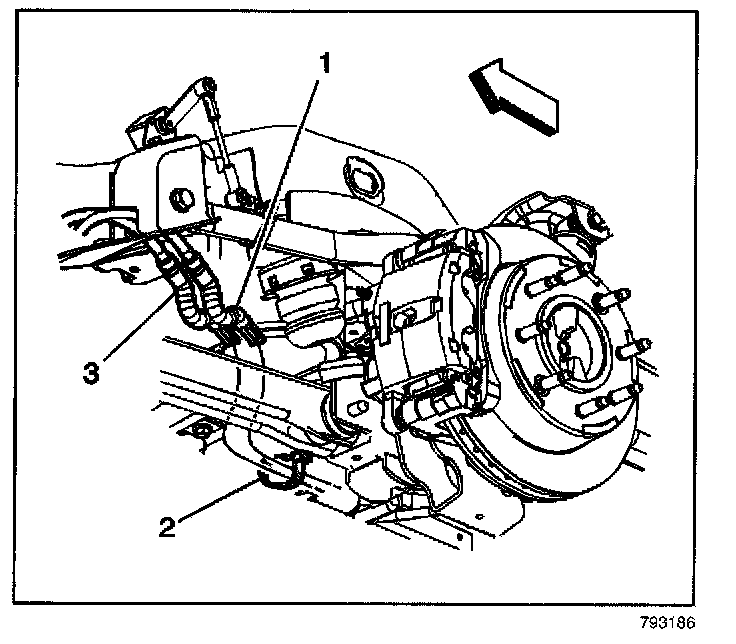

4. Remove the park brake cable guide (2).
5. Remove the park brake guide from the park brake cable.

INSTALLATION PROCEDURE




1. Install the park brake cable guide to the park brake cable.

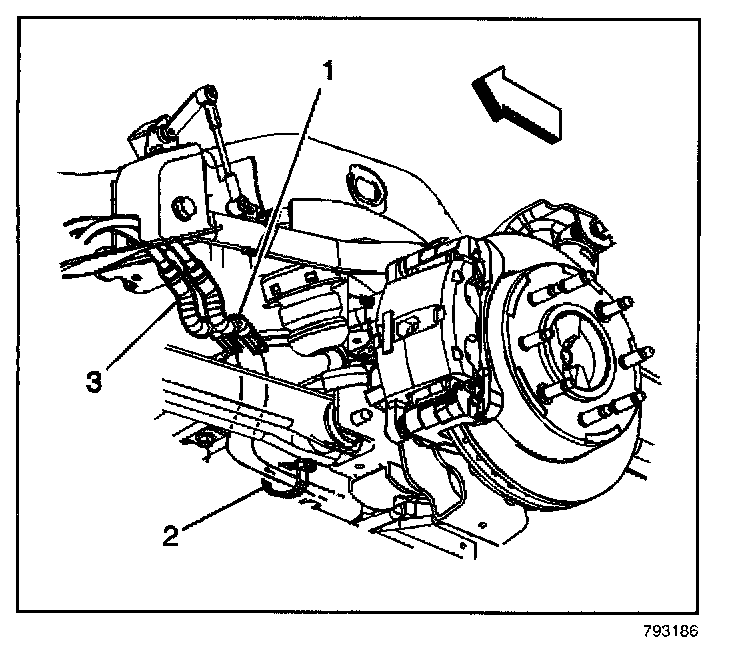

2. Install the park brake cable guide (2).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the park brake cable guide bolt.

Tighten
Tighten the bolt to 12 N.m (106 lb in).

4. Remove the safety stands.
5. Lower the vehicle.
