Auxiliary Power Outlet
>>
Front
Front

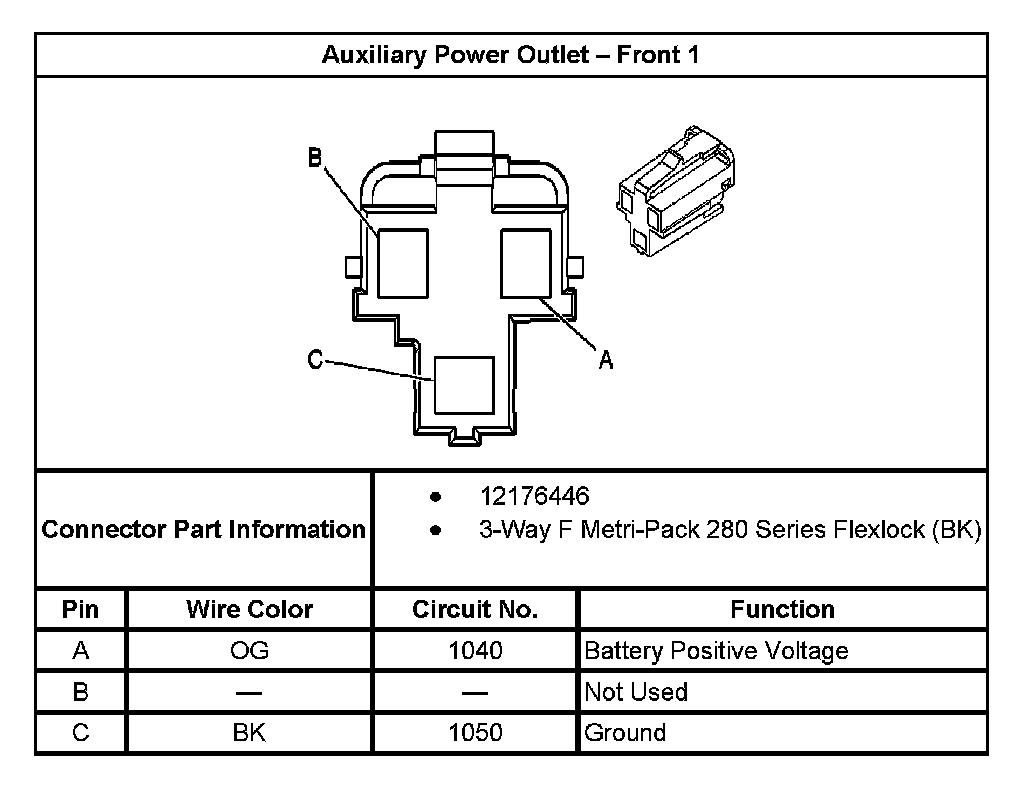

Auxiliary Power Outlet - Front 1:

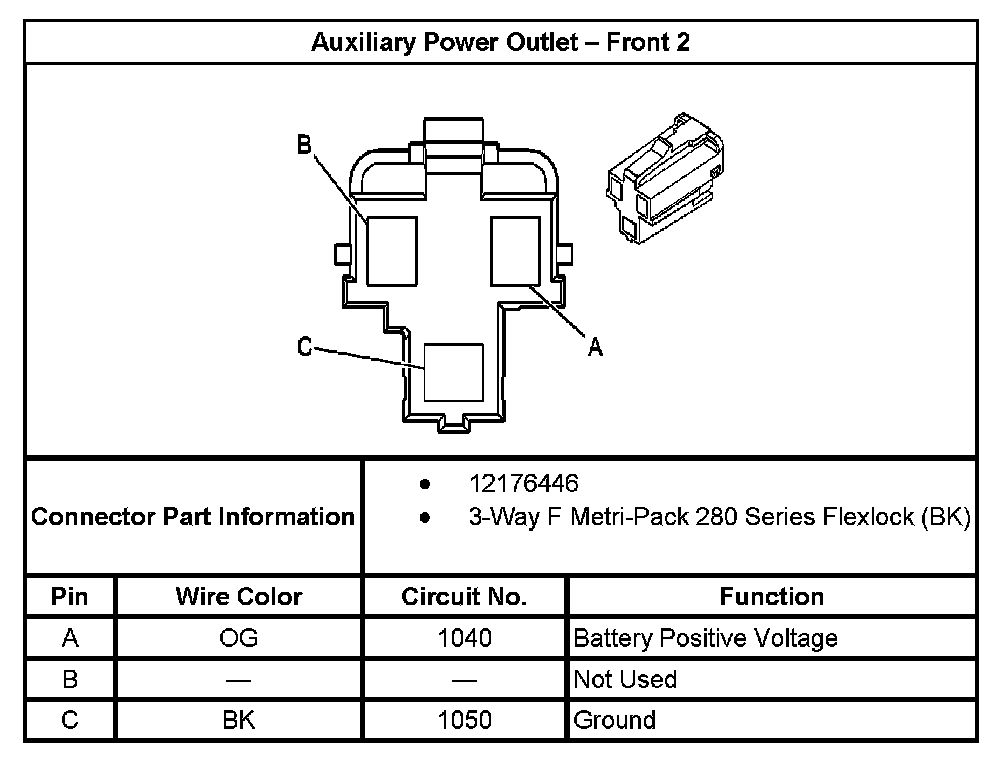

Auxiliary Power Outlet - Front 2:
