Air Suspension Compressor (Early Production SUV)
Air Suspension Compressor (Early Production SUV)

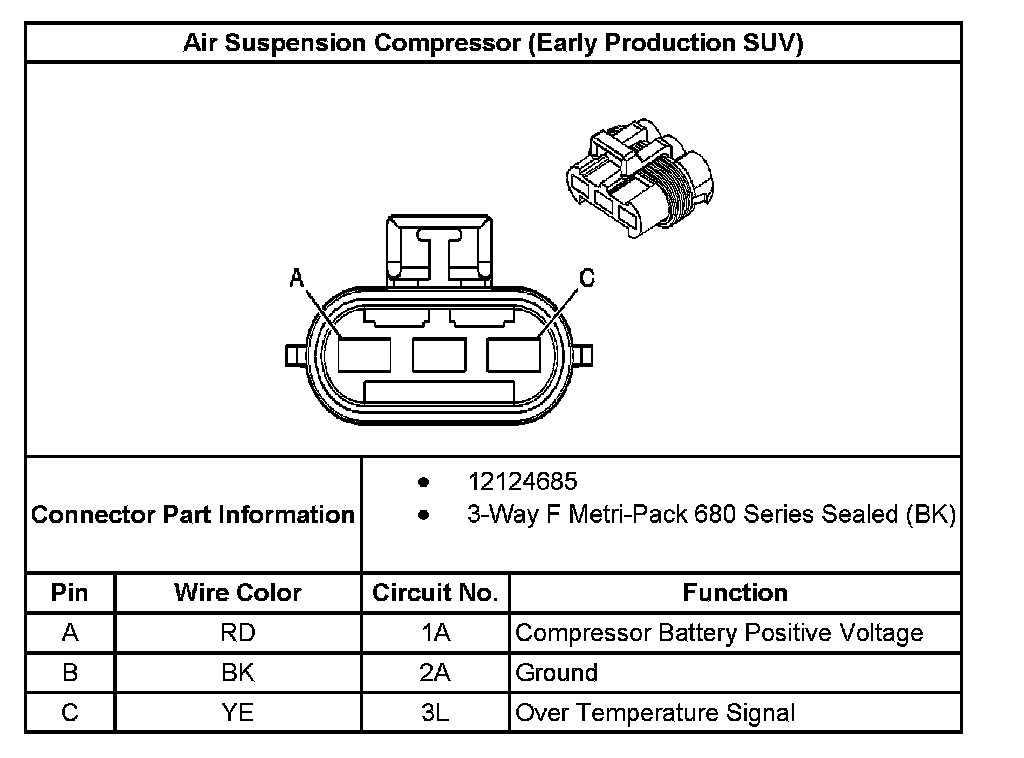

Air Suspension Compressor (Early Production Suv):
