Home
>>
Hummer
>>
2006
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>

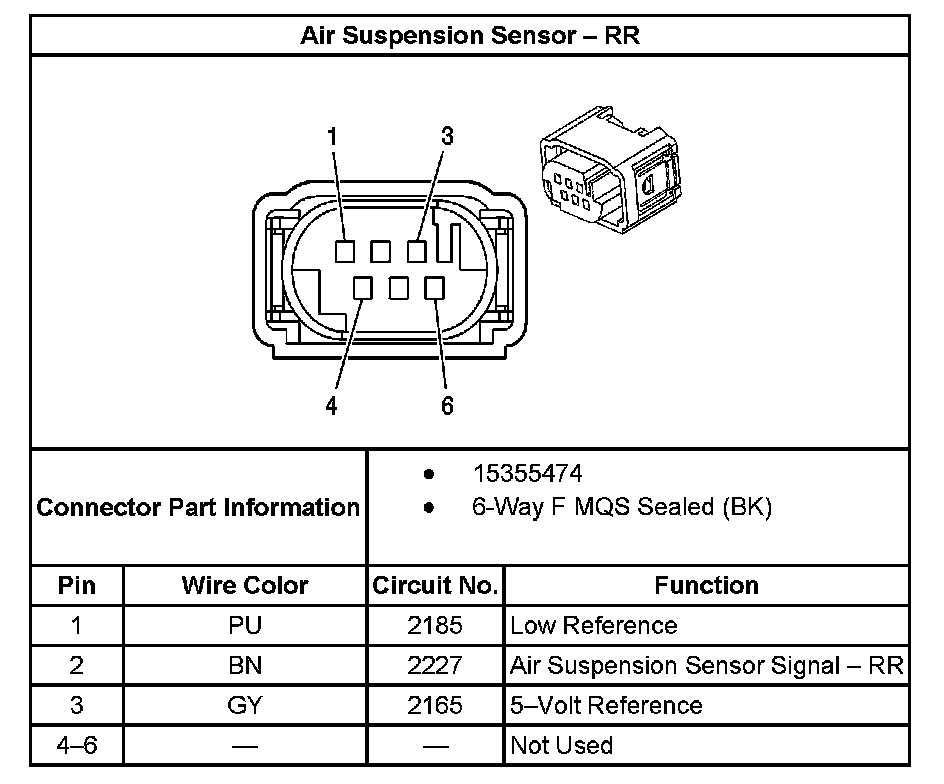

Air Suspension Sensor - RR
Air Suspension Sensor - RR
Air Suspension Sensor - RR:
