Suspension Control Pressure Sensor/Switch
>>
Air Suspension Inflator Switch
Air Suspension Inflator Switch

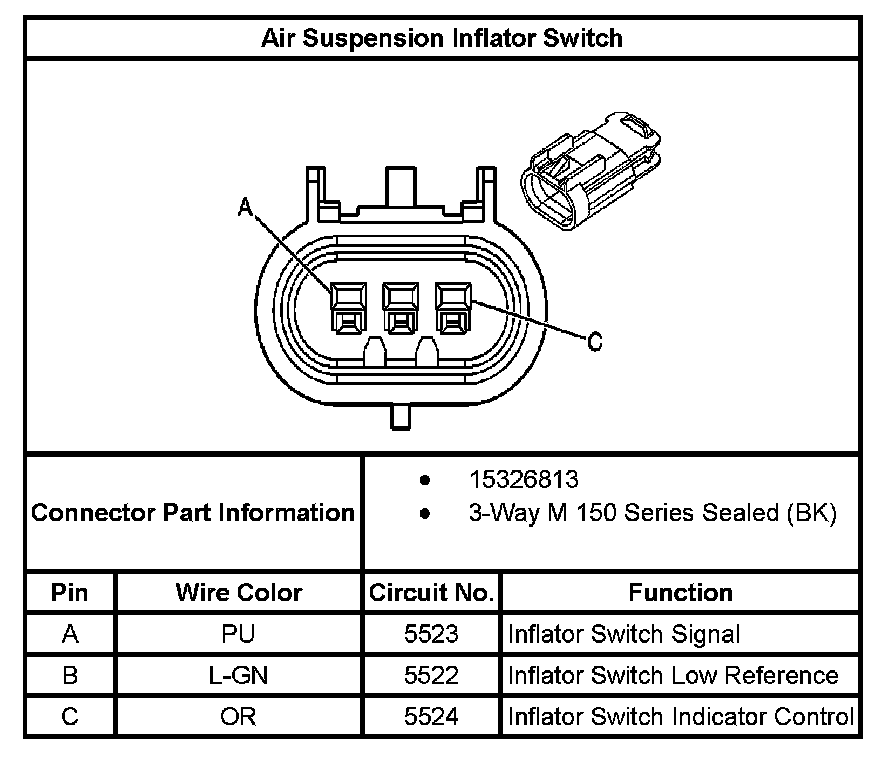

Air Suspension Inflator Switch:
