Suspension Control Pressure Sensor/Switch
>>
Air Suspension Pressure Sensor
Air Suspension Pressure Sensor

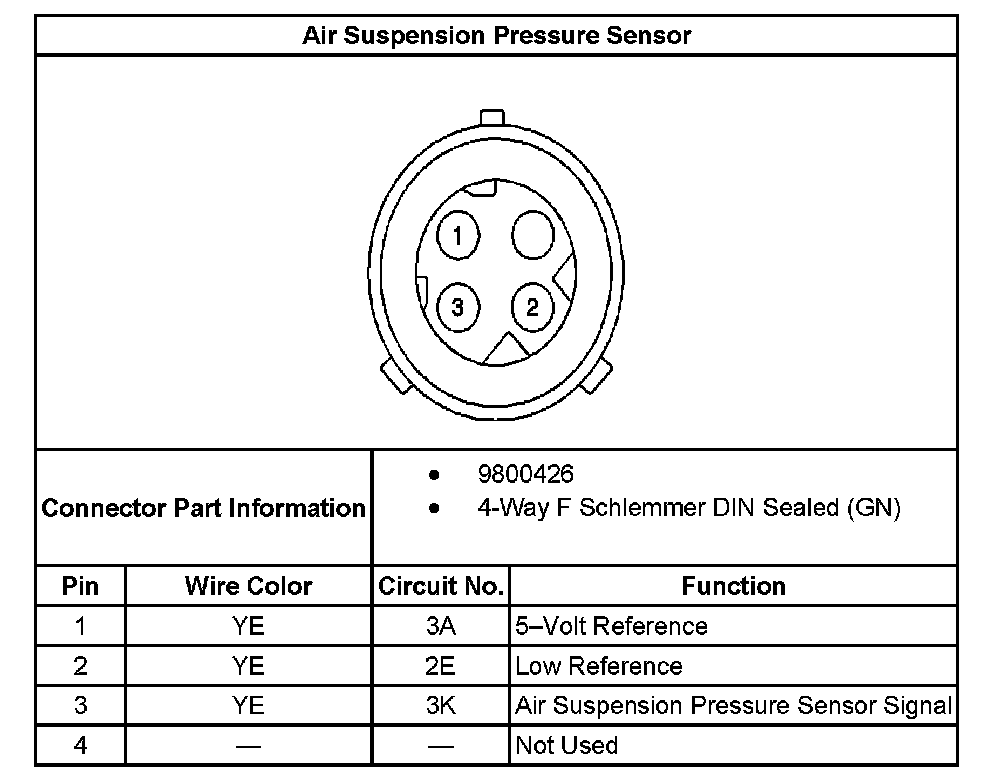

Air Suspension Pressure Sensor:
