Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Door Module >> Locations

Door Module: Locations

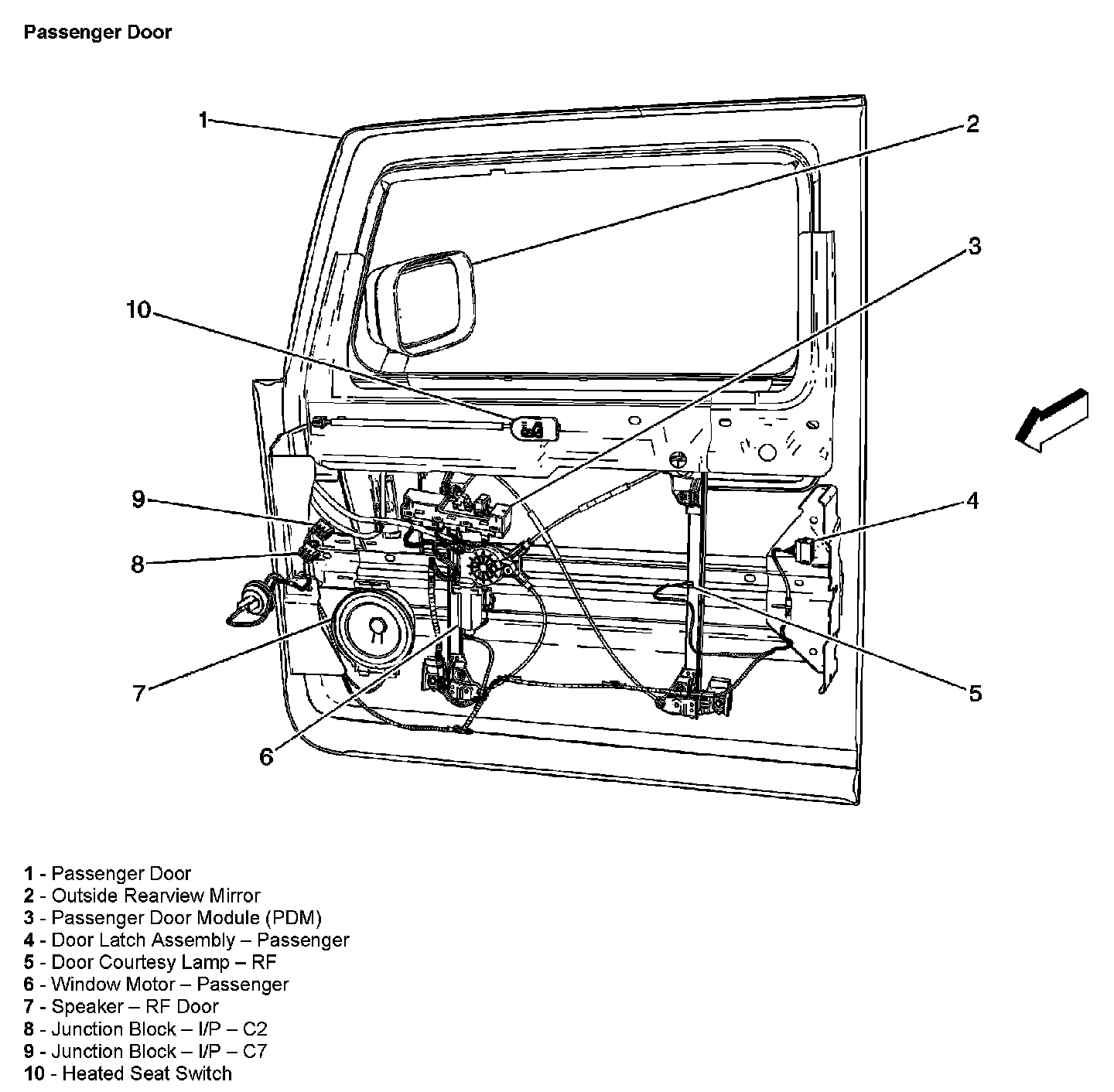

Passenger Door:
