Accessories and Optional Equipment

Component Connector End Views

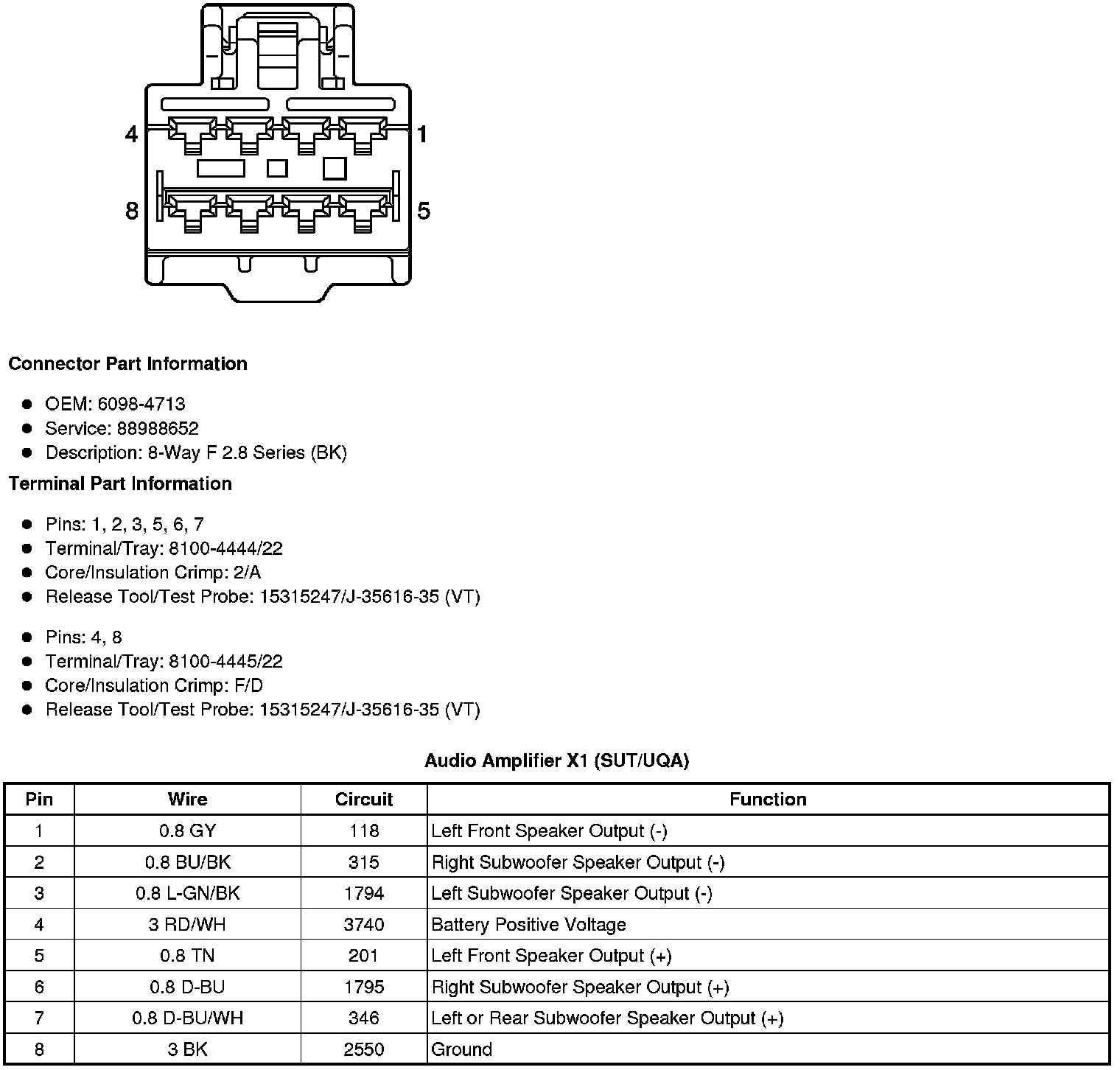

Audio Amplifier X1 (SUT/UQA)

Audio Amplifier X1 (SUV/UQA)

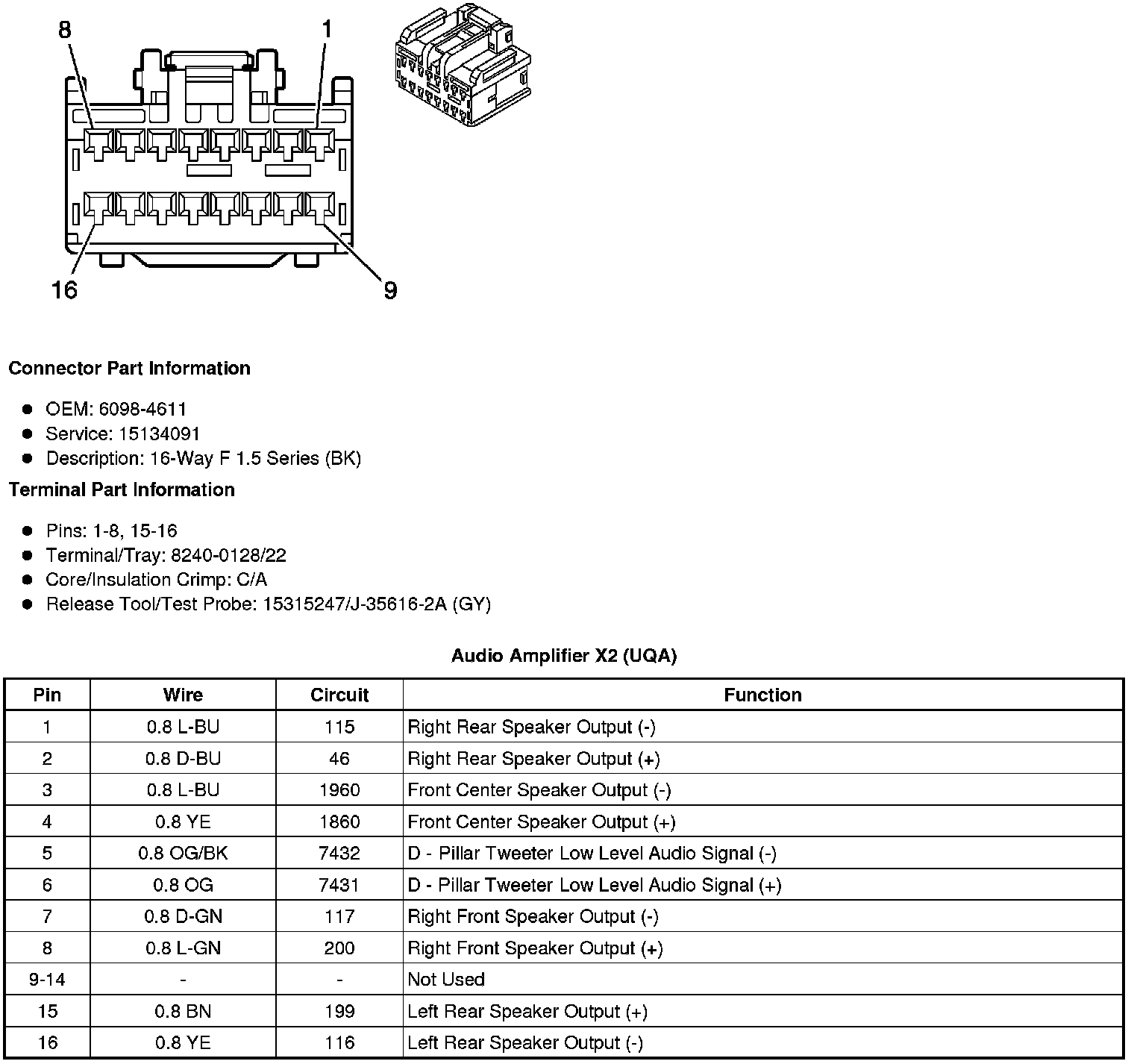

Audio Amplifier X2 (UQA)

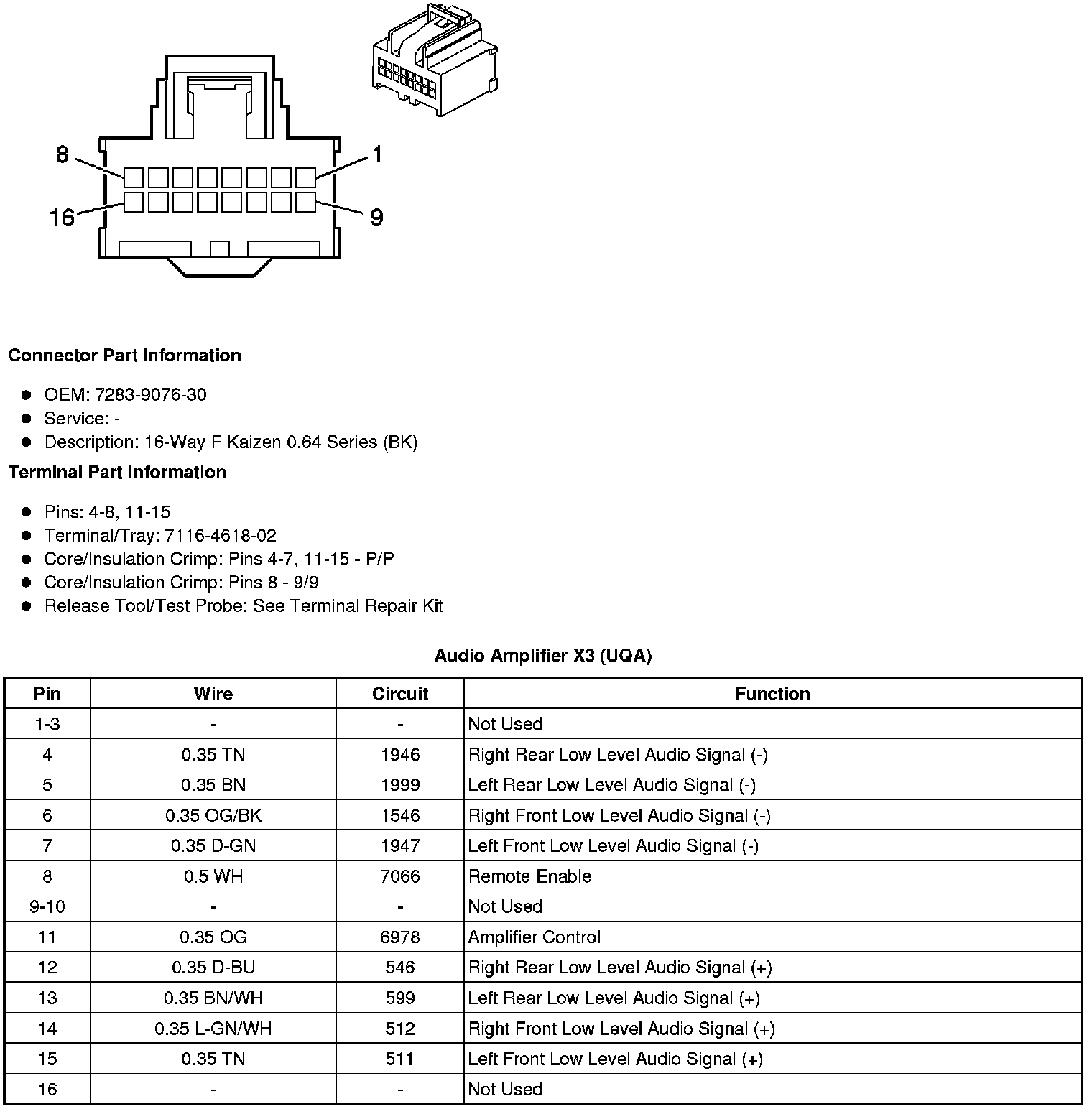

Audio Amplifier X3 (UQA)

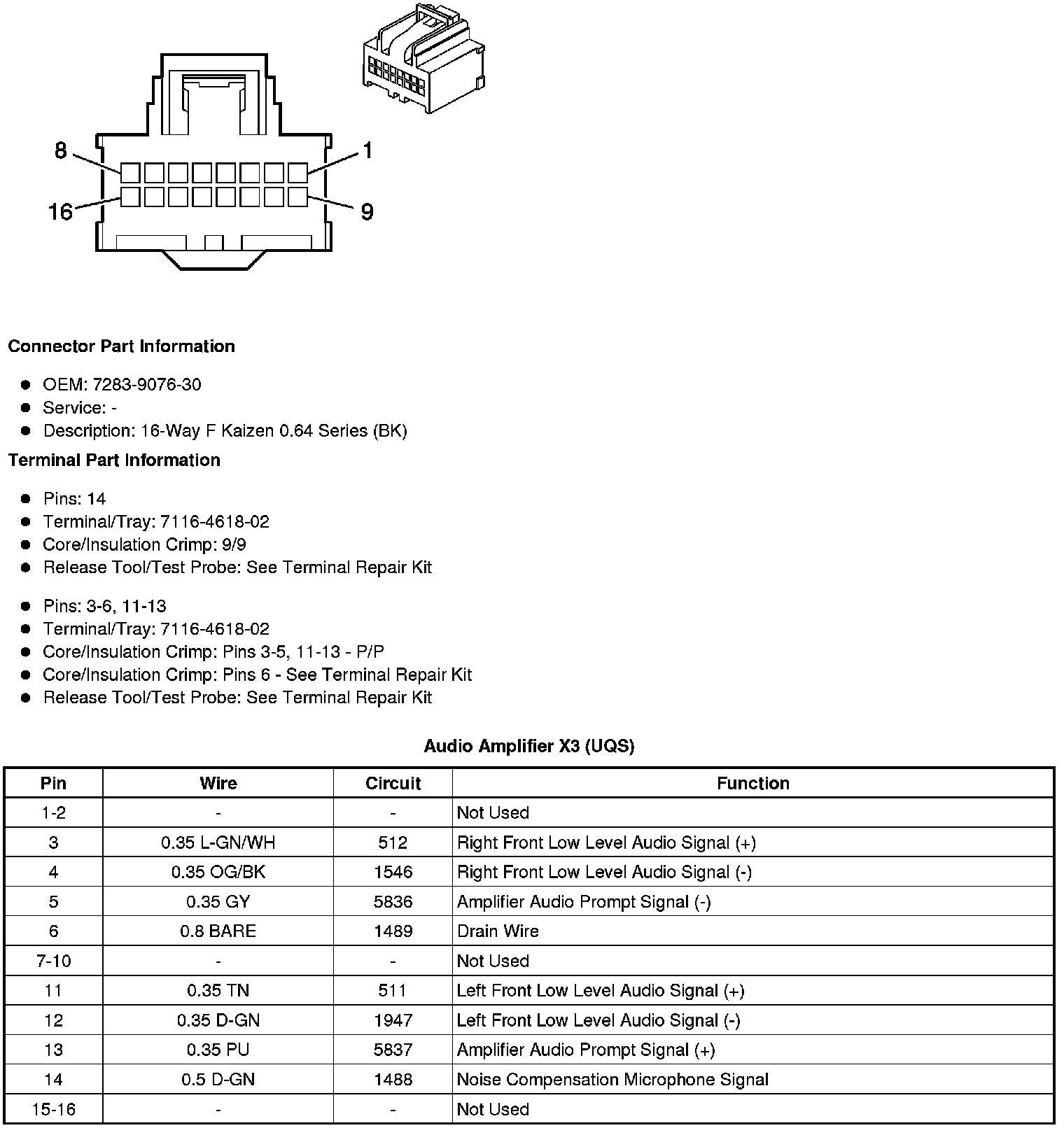

Audio Amplifier X3 (UQS)

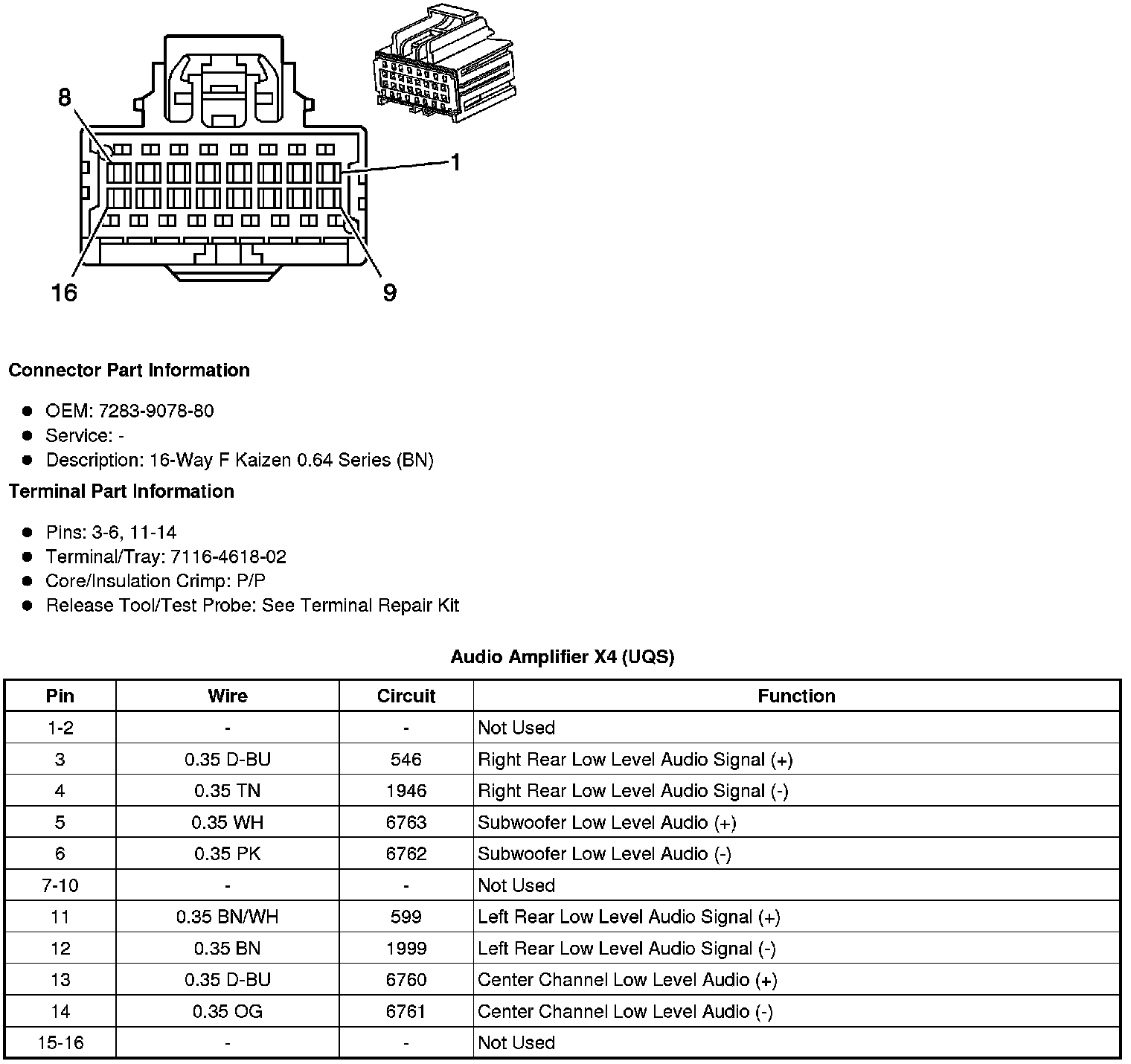

Audio Amplifier X4 (UQS)

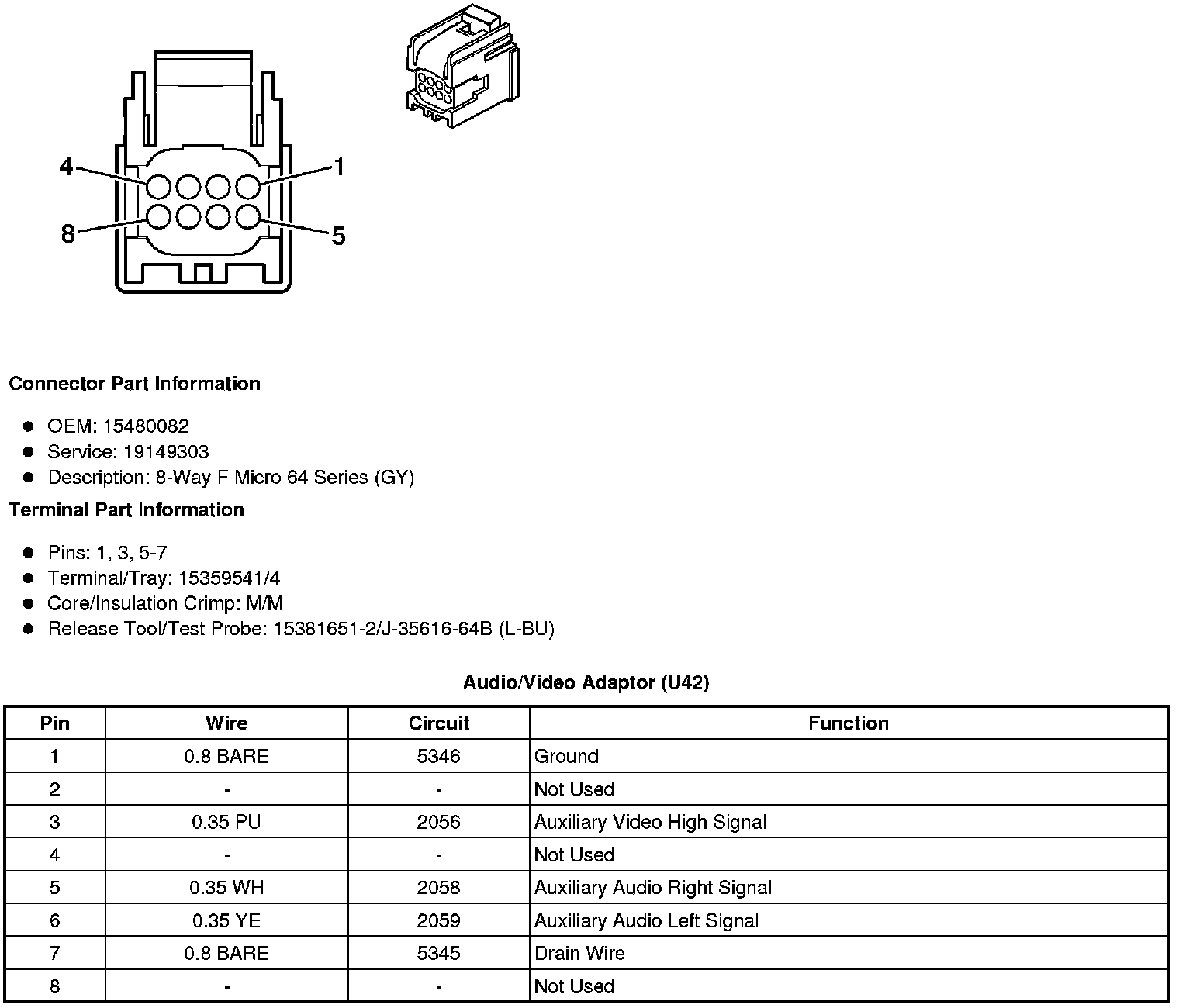

Audio/Video Adaptor (U42)

Cellular Microphone (UE1)

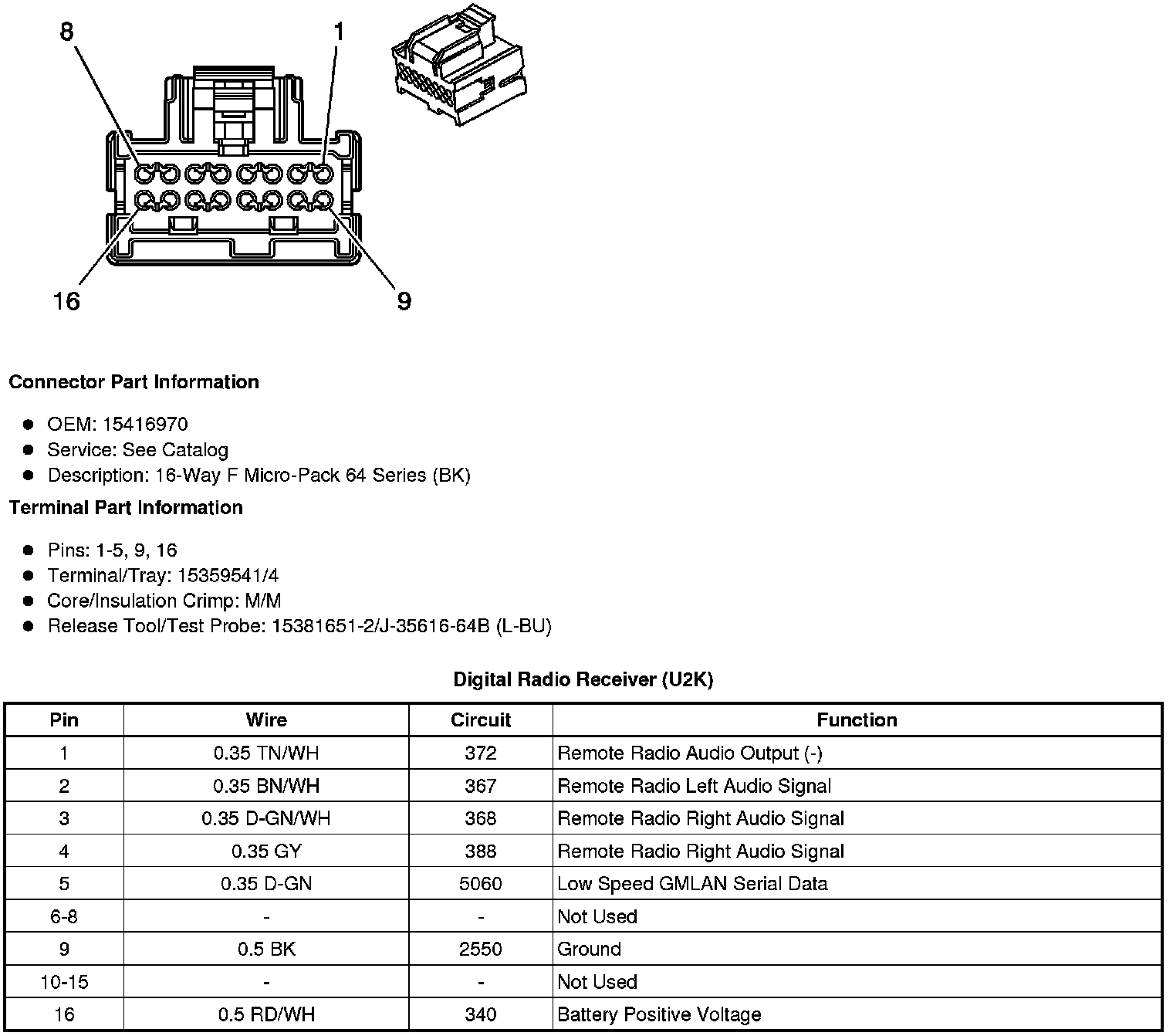

Digital Radio Receiver (U2K)

Electronic Brake Control Module (EBCM) X1

Electronic Brake Control Module (EBCM) X2

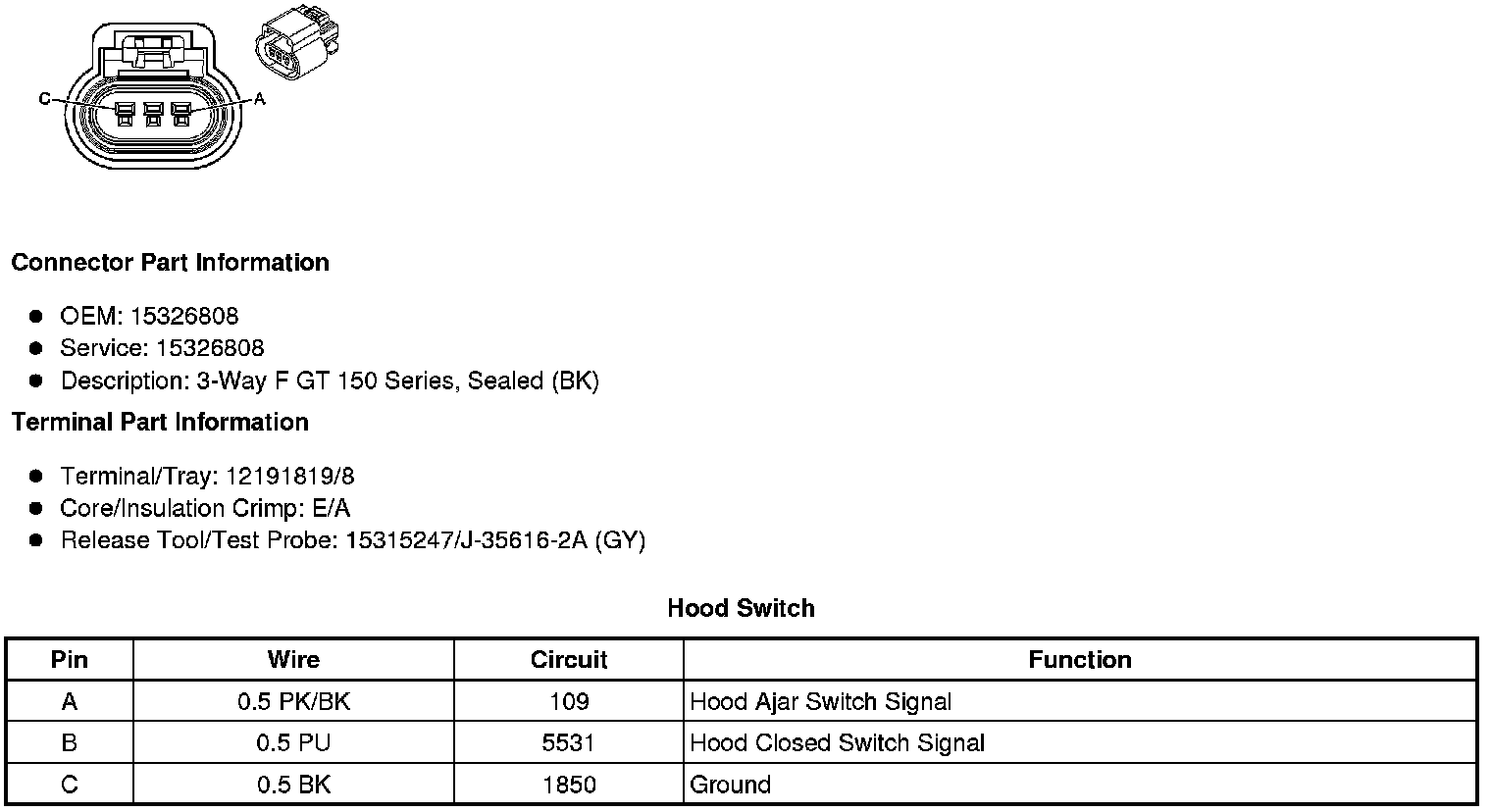

Hood Switch

Infrared Module (U42)

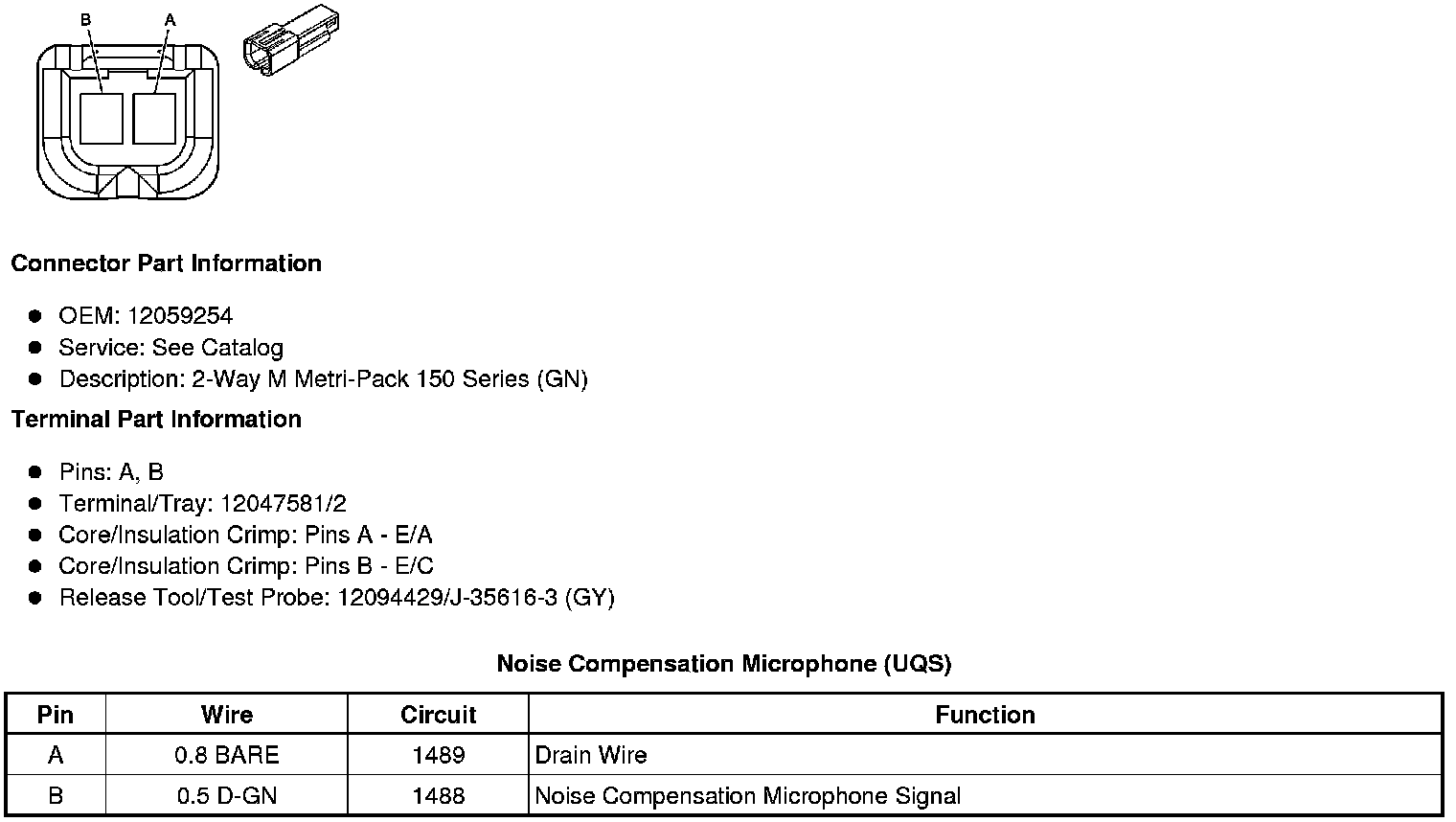

Noise Compensation Microphone (UQS)

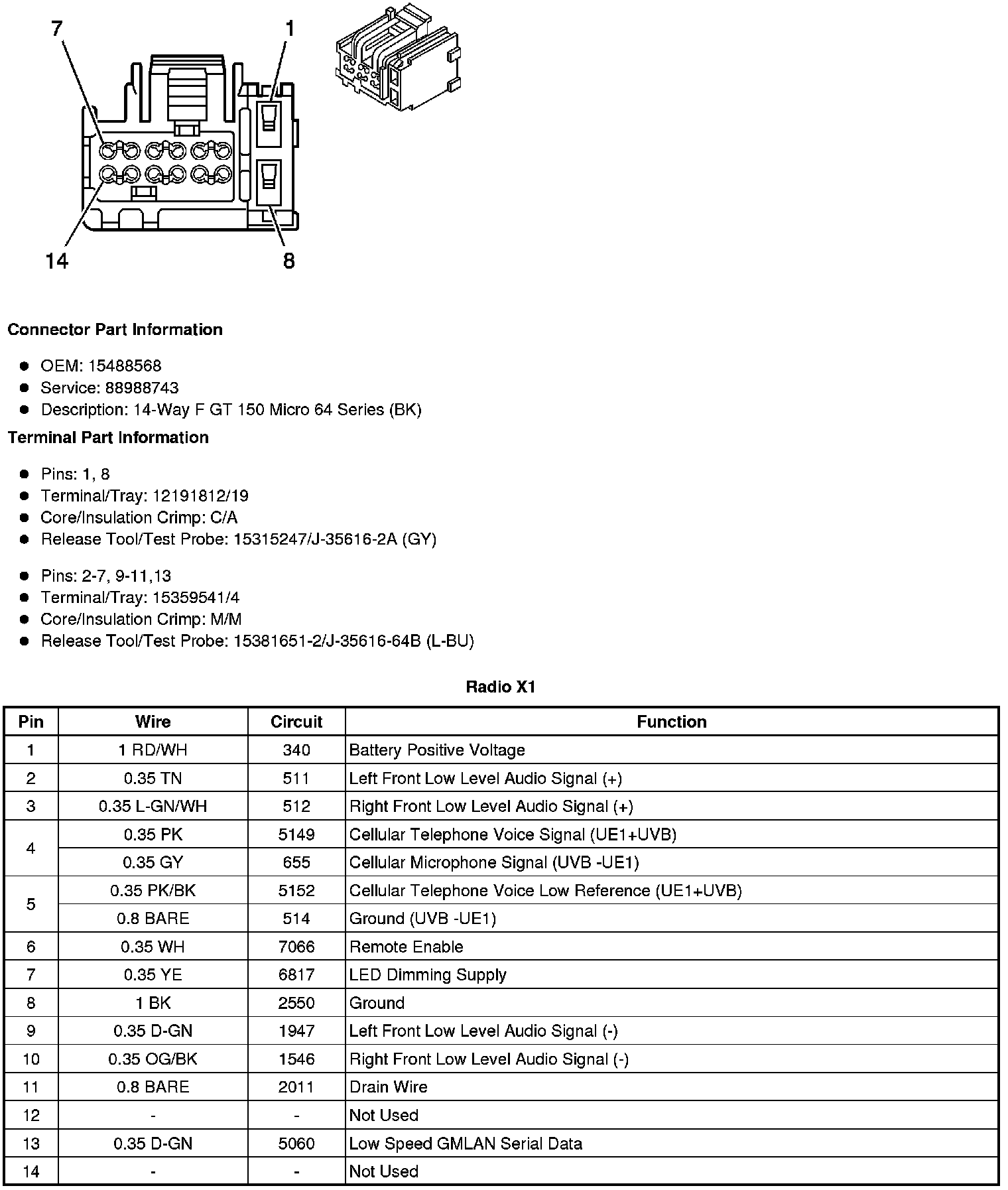

Radio X1

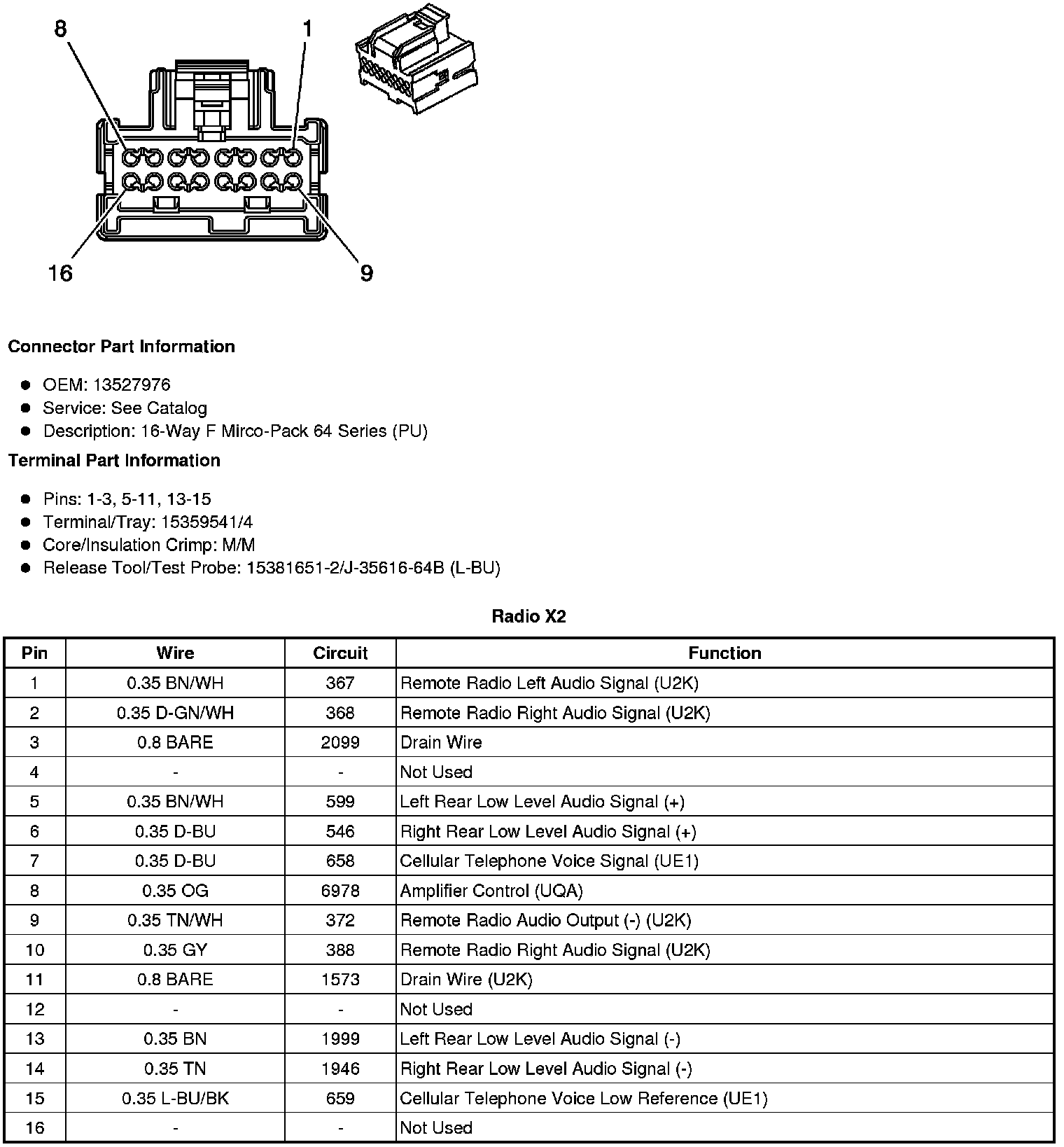

Radio X2

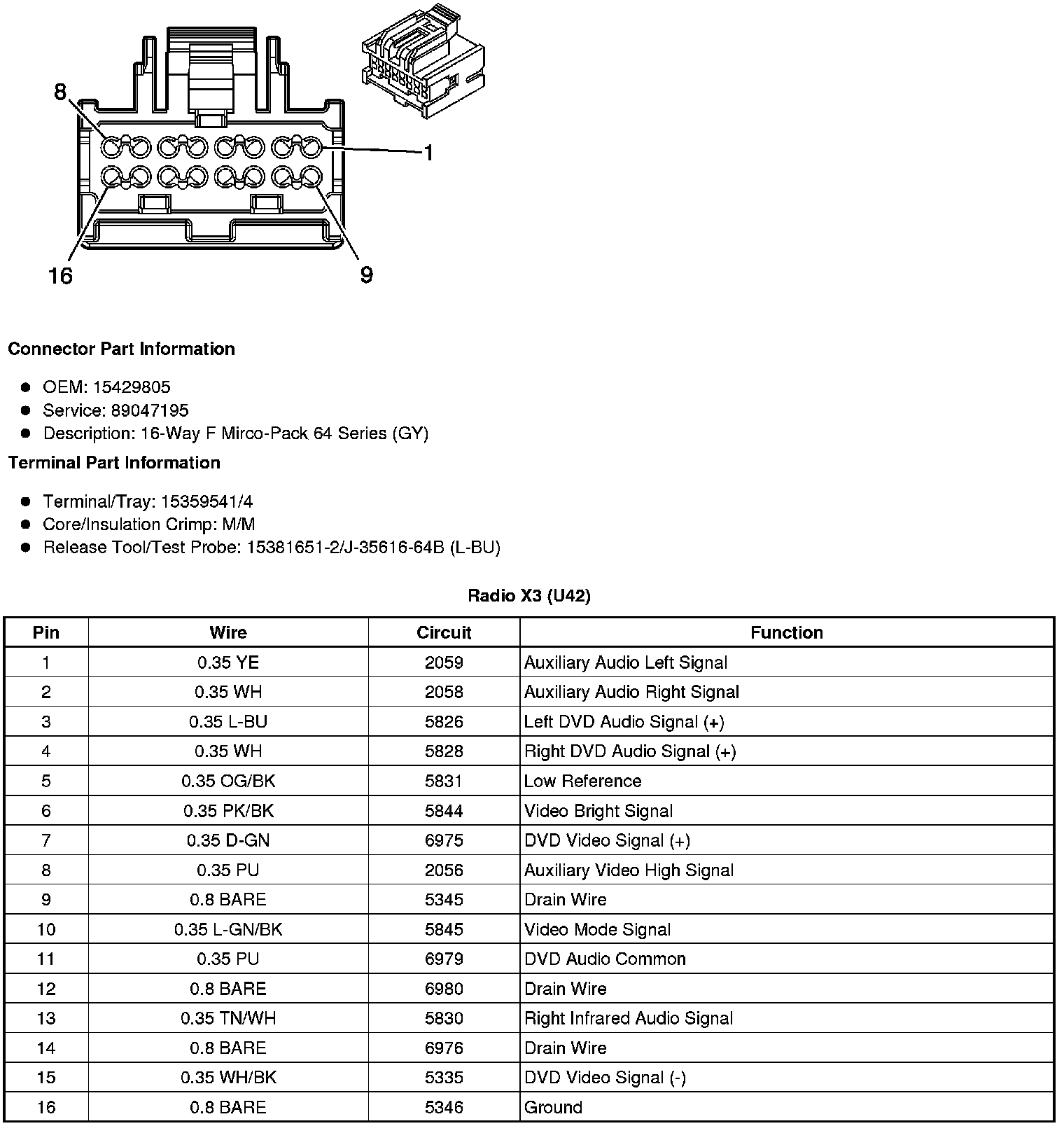

Radio X3 (U42)

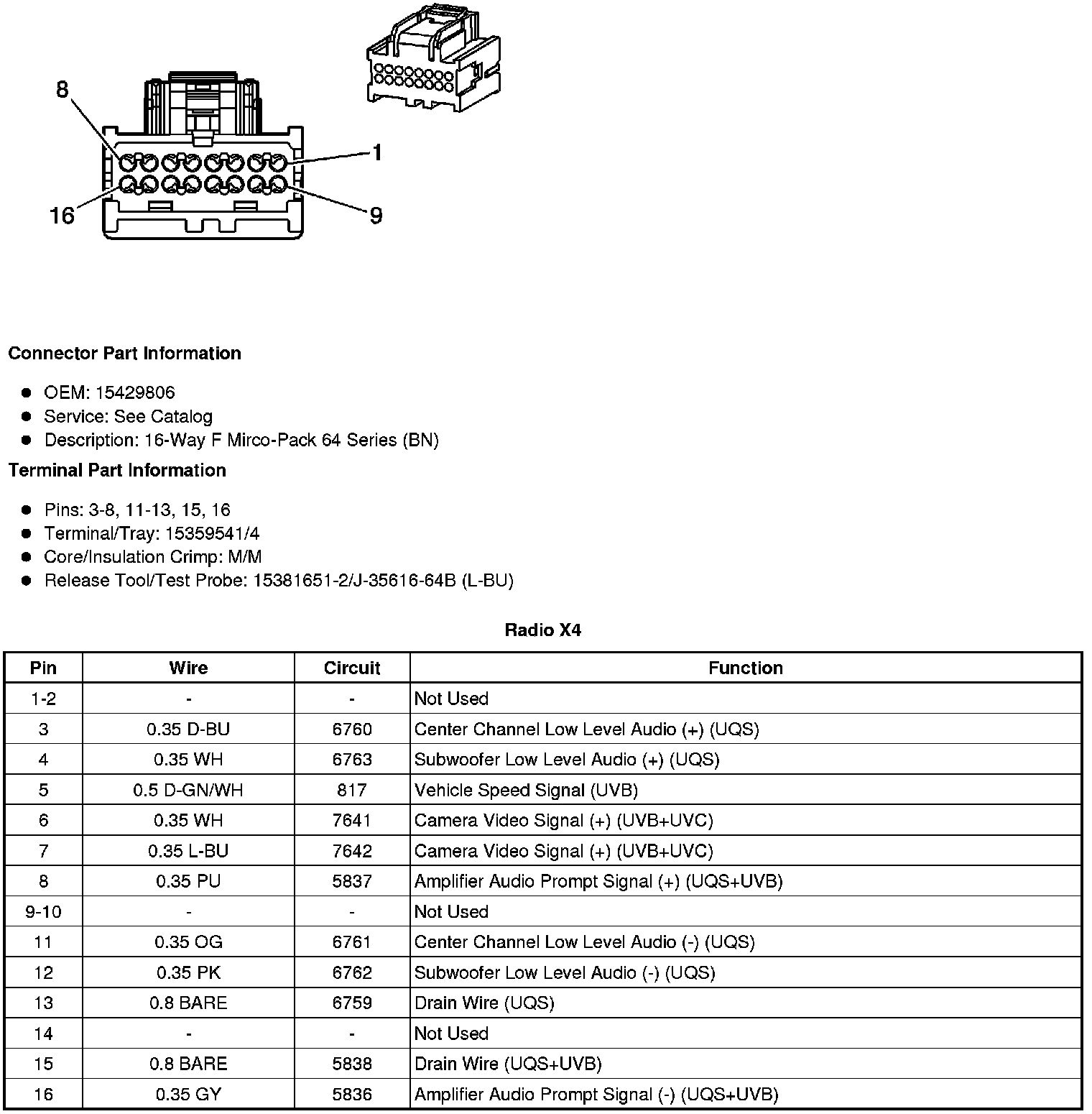

Radio X4

Rear Seat Audio (RSA) Controller X1

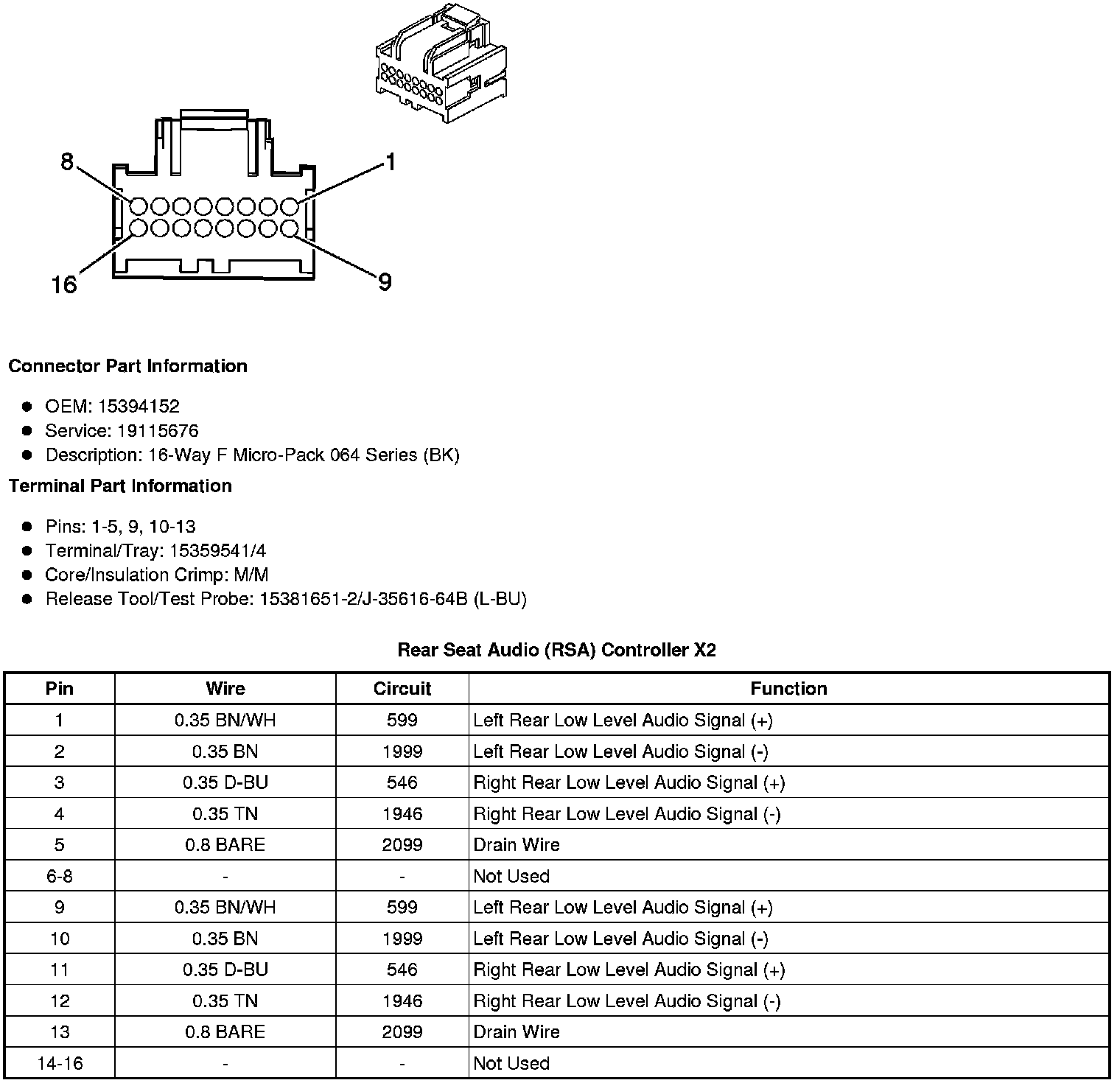

Rear Seat Audio (RSA) Controller X2

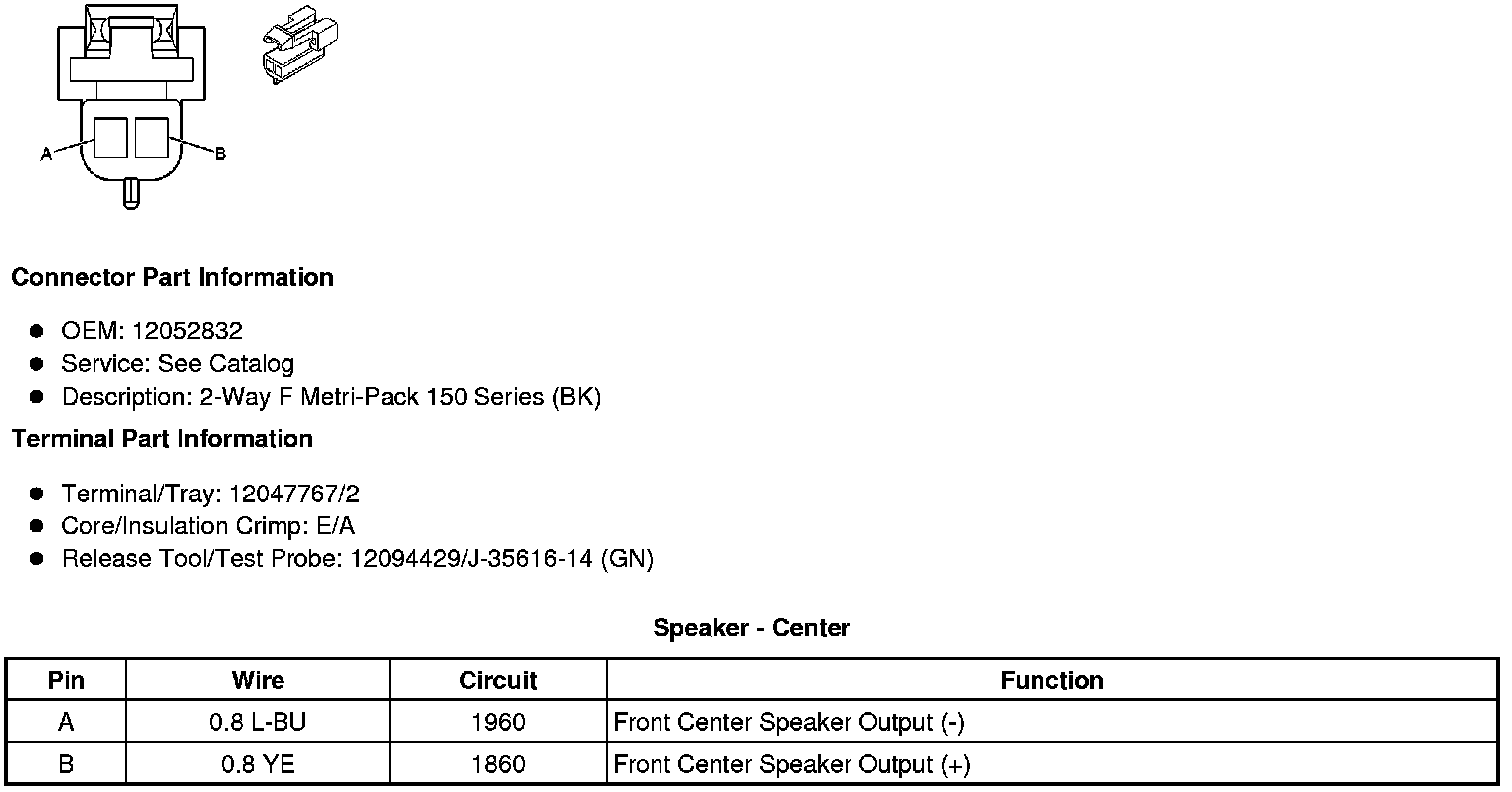

Speaker - Center

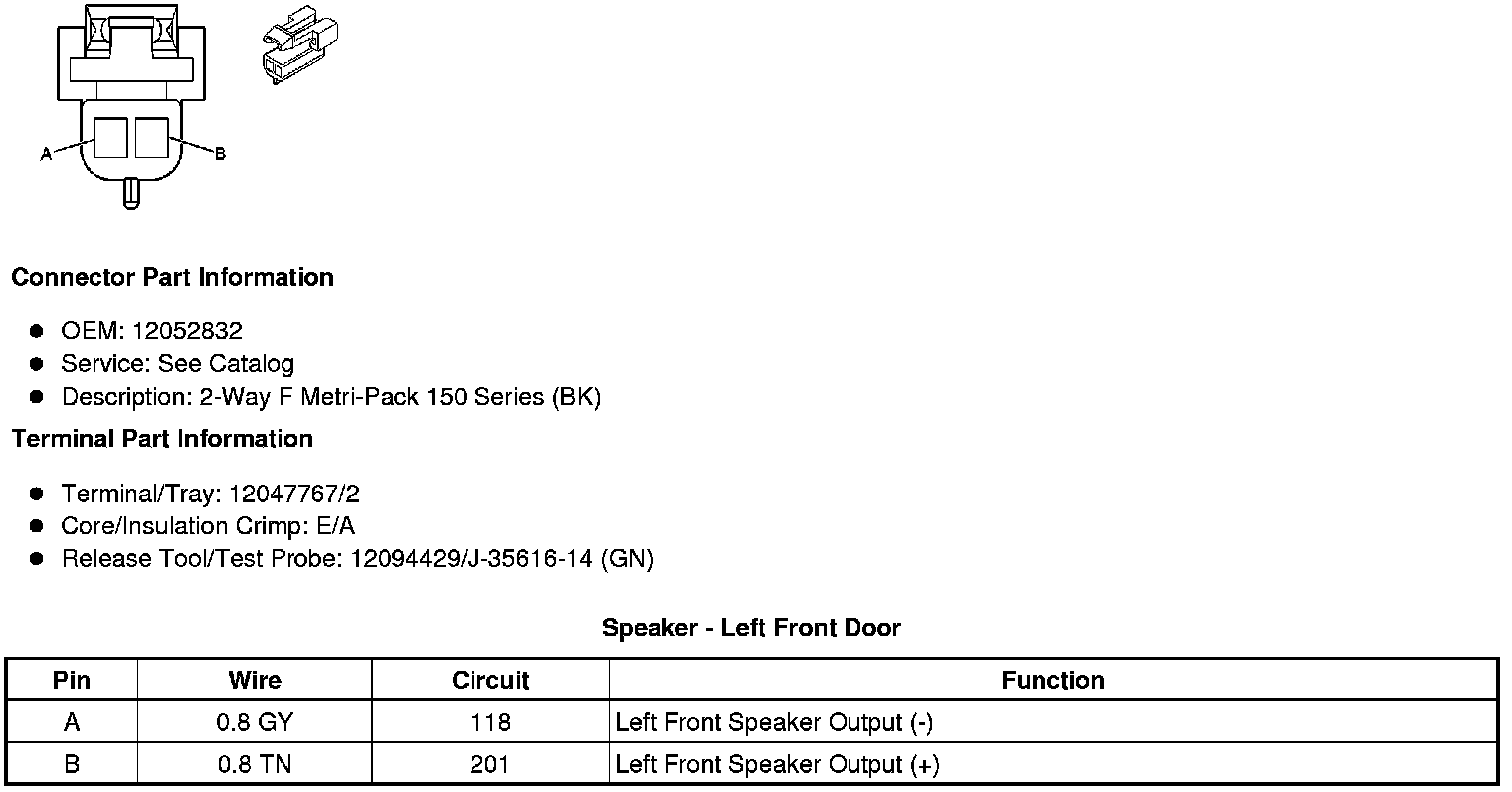

Speaker - Left Front Door

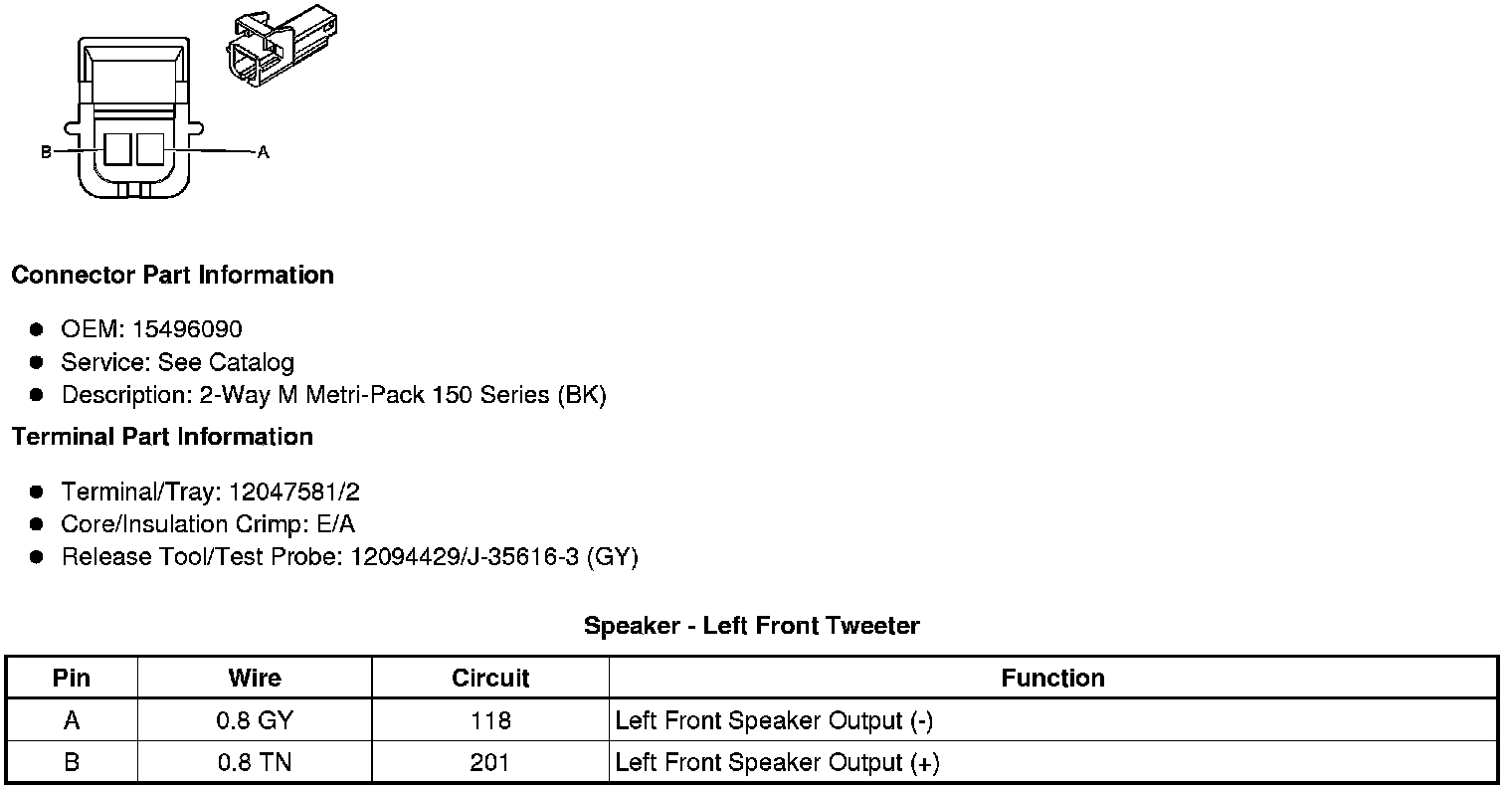

Speaker - Left Front Tweeter

Speaker - Left Rear Door

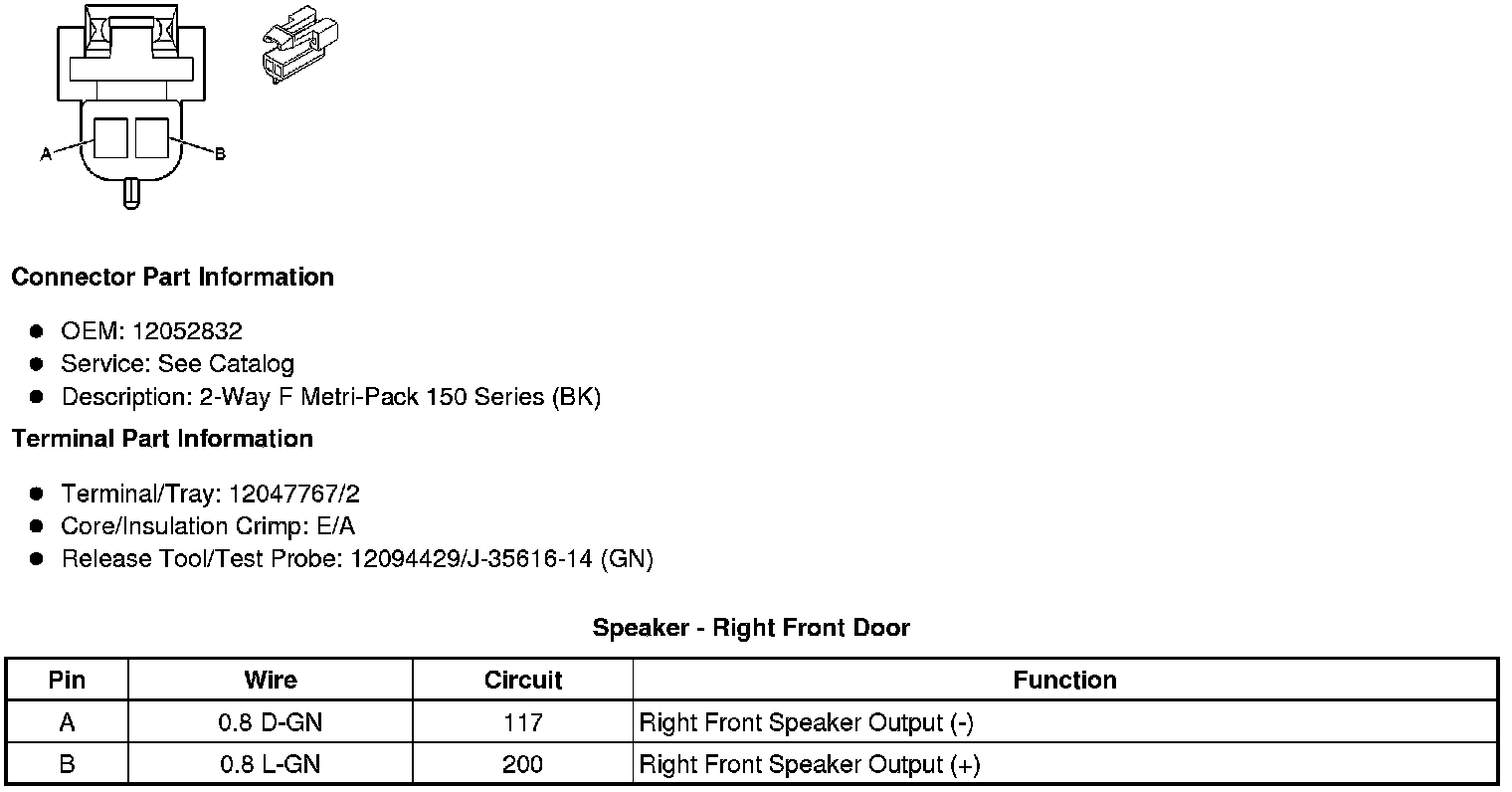

Speaker - Right Front Door

Speaker - Right Front Tweeter

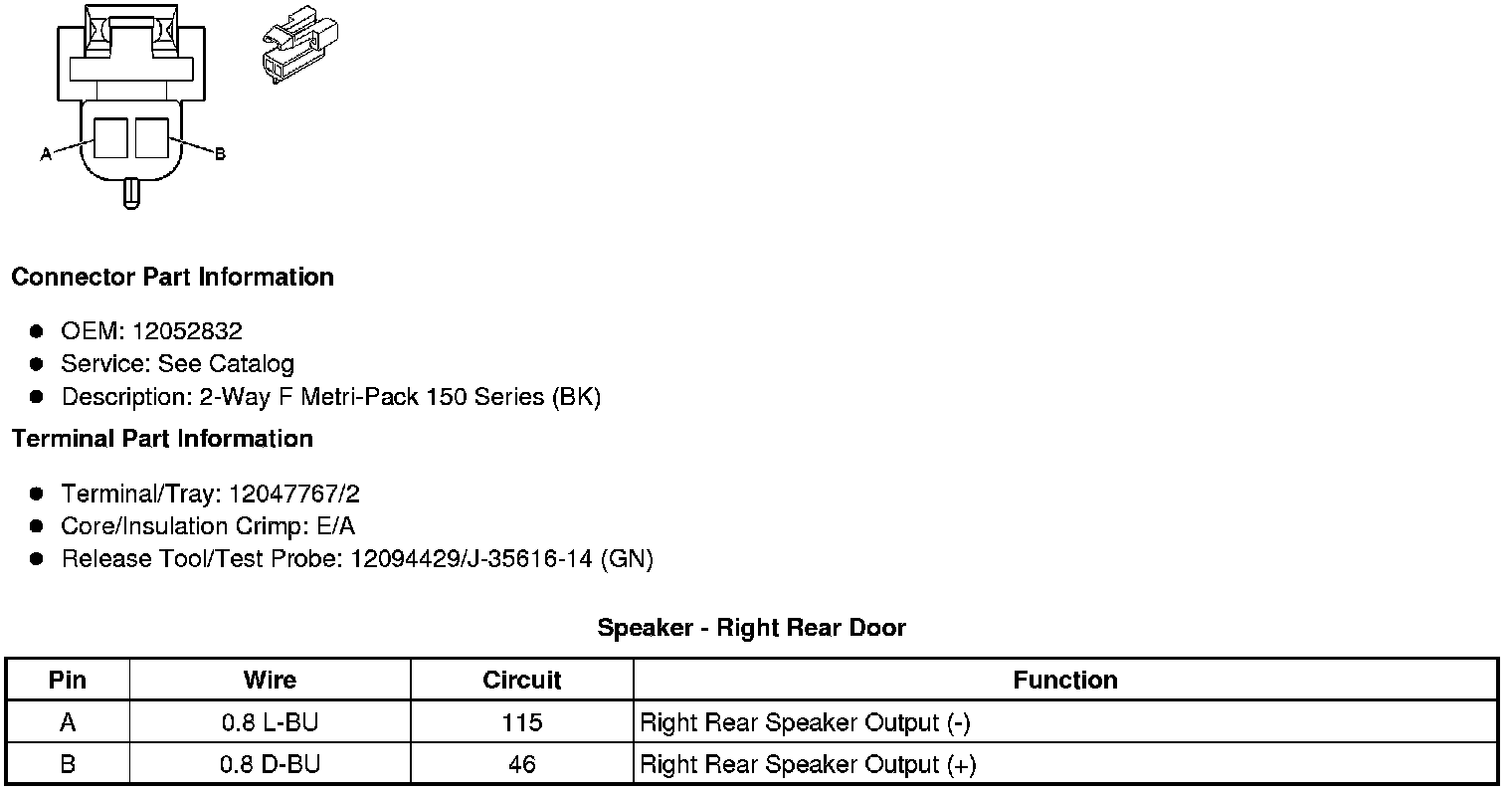

Speaker - Right Rear Door

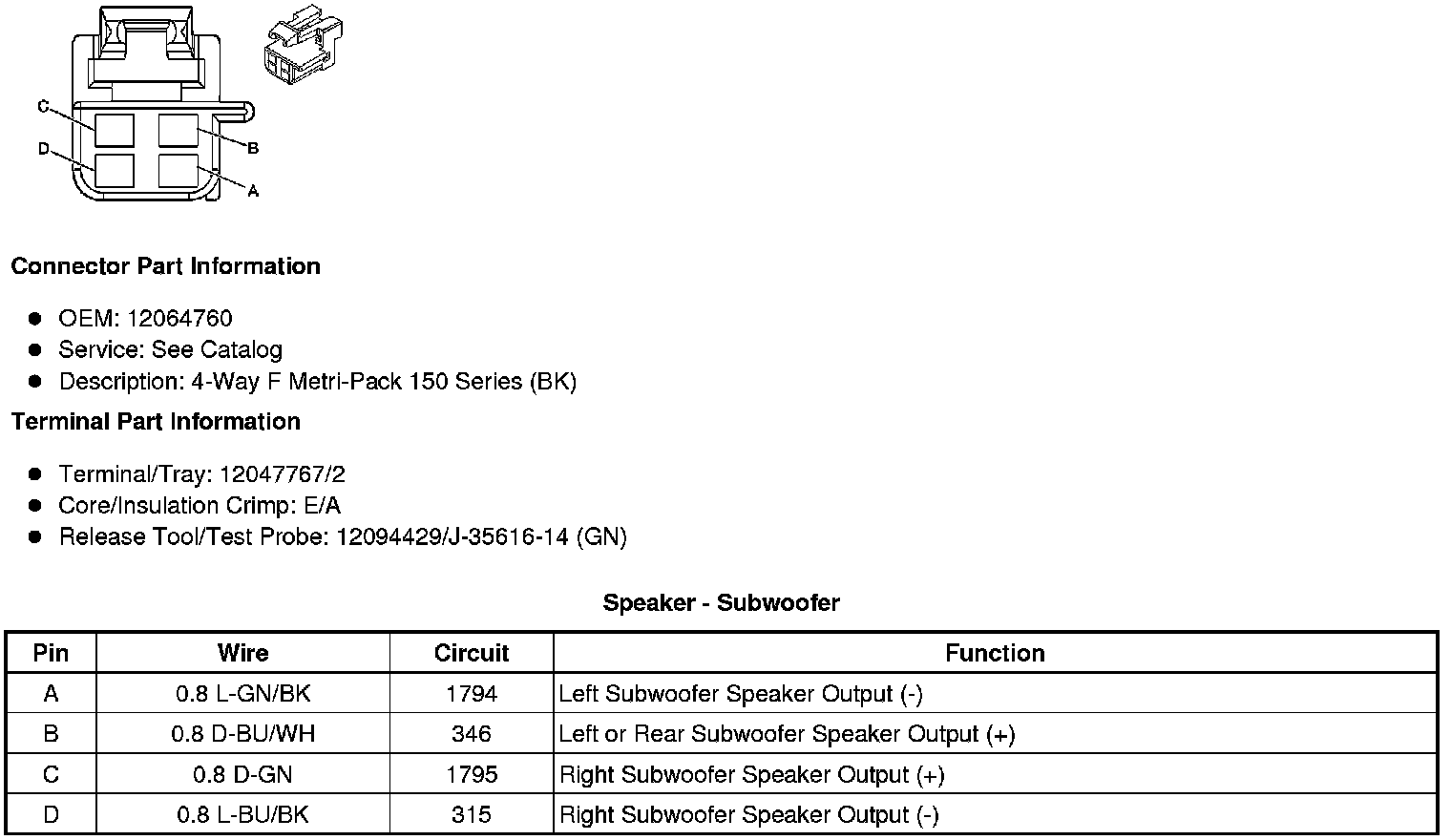

Speaker - Subwoofer

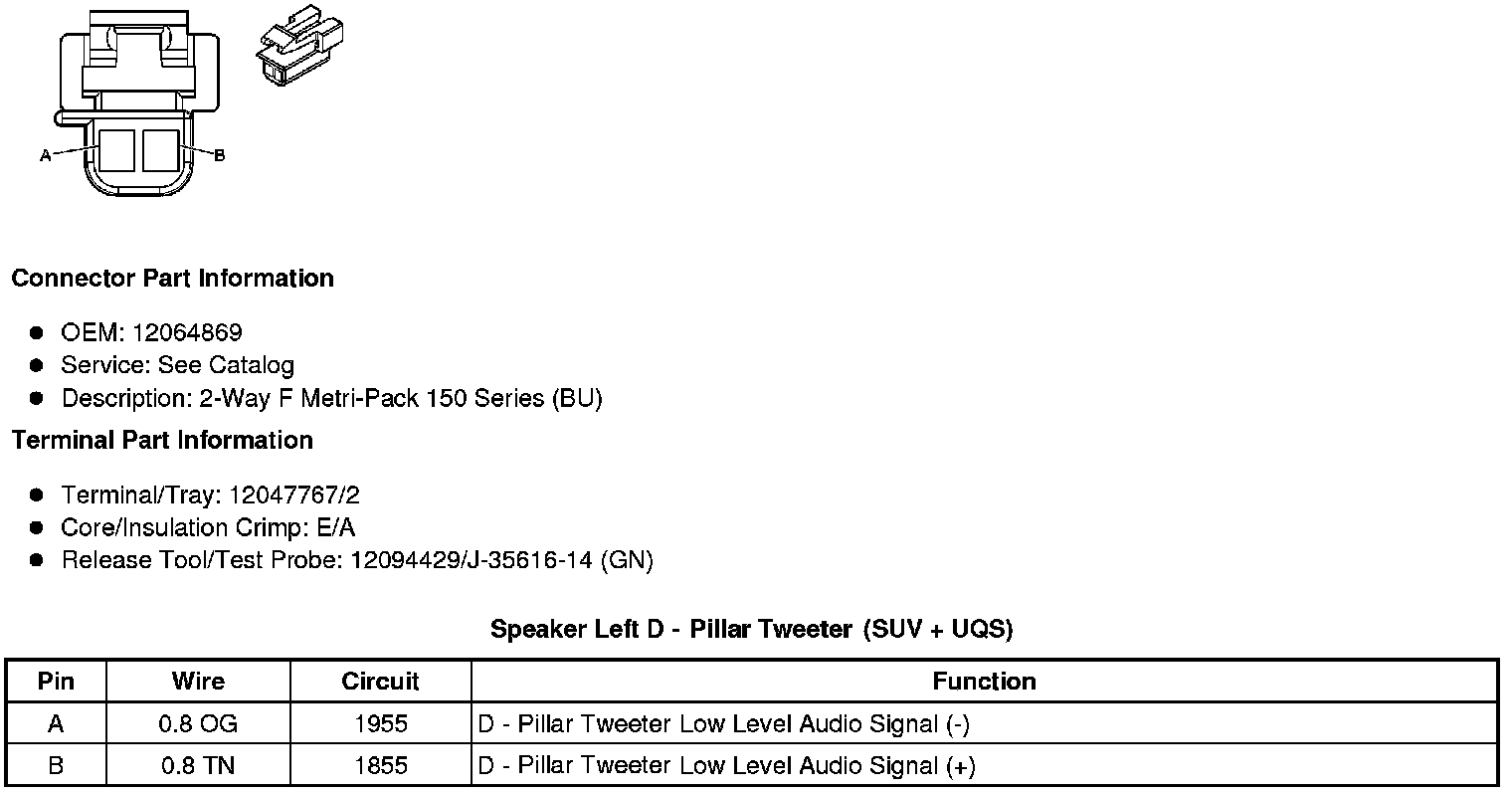

Speaker Left D - Pillar (SUV + UQS)

Speaker Right D - Pillar (SUV + UQS)

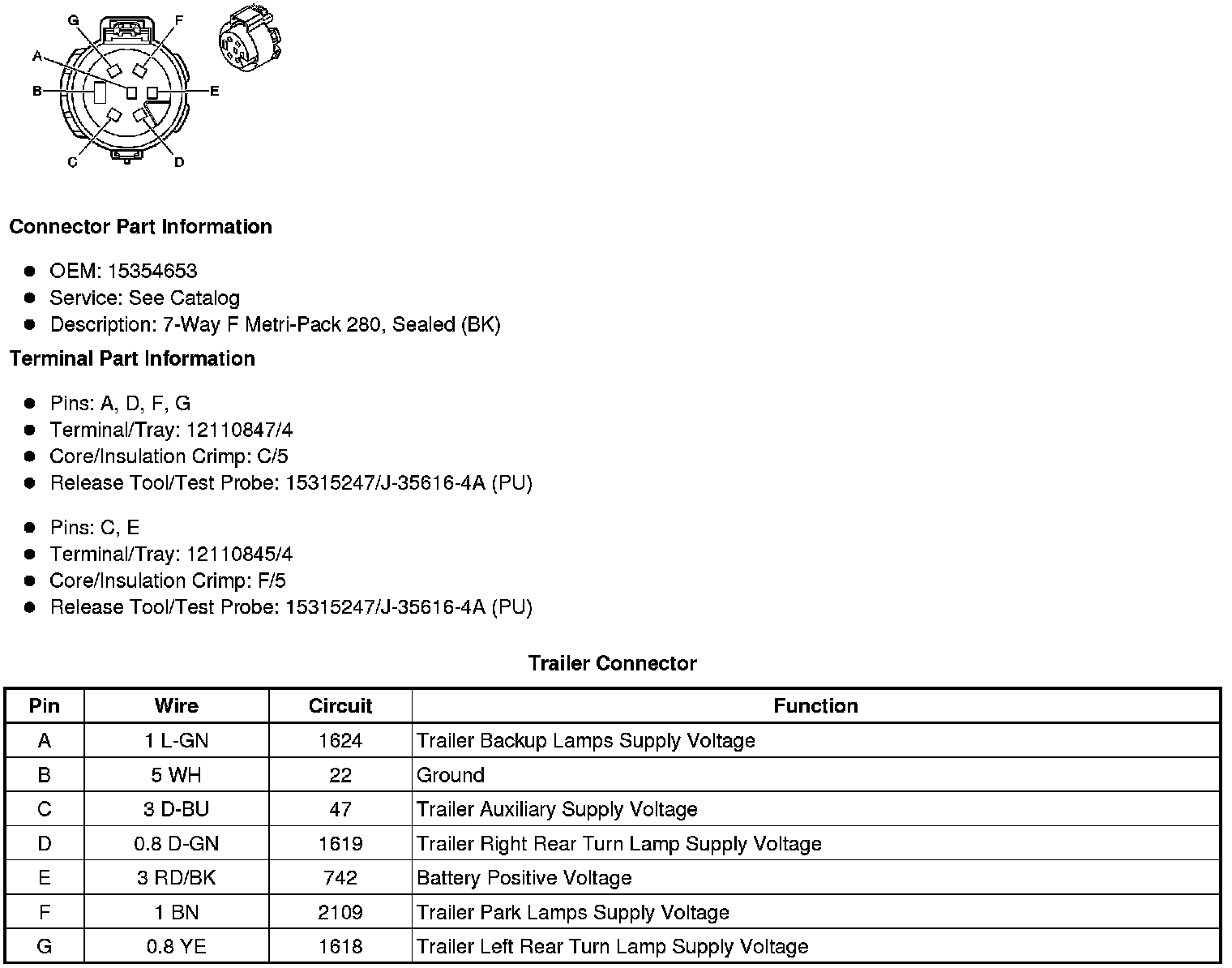

Trailer Connector

Vehicle Communication Interface Module (VCIM) X1 (UE1)

Vehicle Communication Interface Module (VCIM) X2 (UE1)

Video Display
