Powertrain Management

Component Connector End Views

Accelerator Pedal Position (APP) Sensor

Body Control Module (BCM) X2

Body Control Module (BCM) X3

Body Control Module (BCM) X4

Body Control Module (BCM) X5

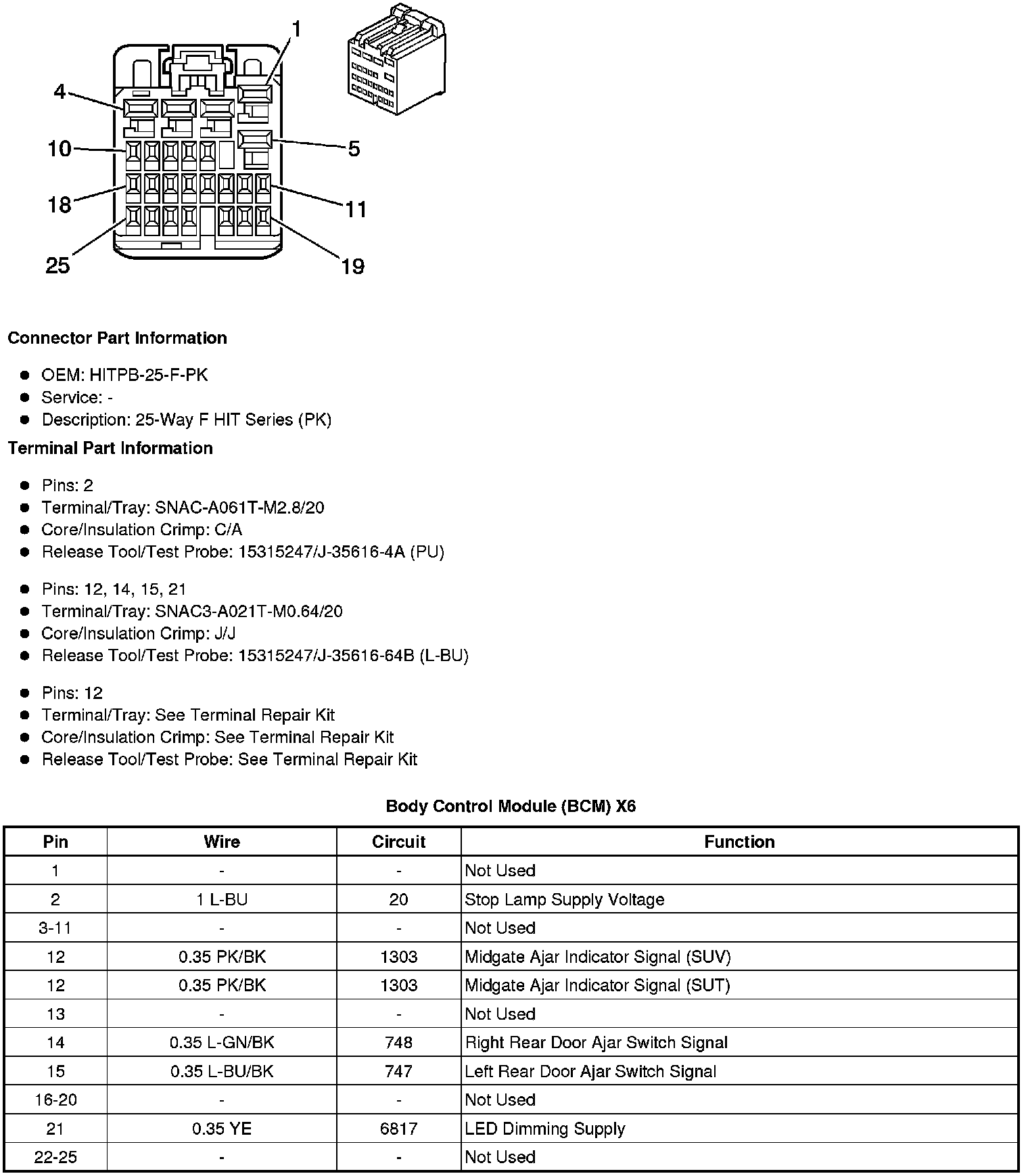

Body Control Module (BCM) X6

Body Control Module (BCM) X7

Crankshaft Position (CKP) Sensor

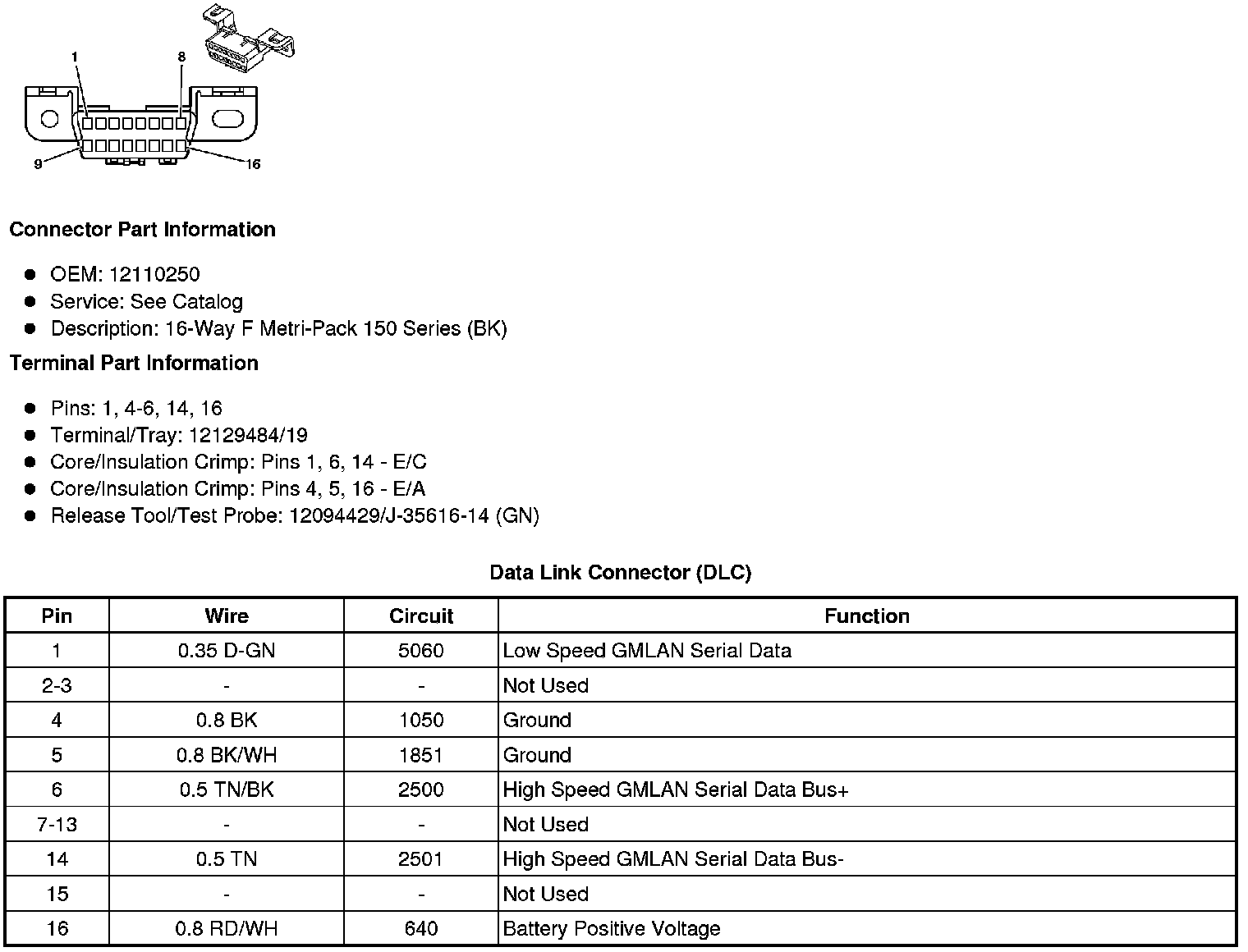

Data Link Connector (DLC)

Data Link Resistor

Engine Control Module (ECM) X1

Engine Control Module (ECM) X2

Engine Coolant Temperature (ECT) Sensor

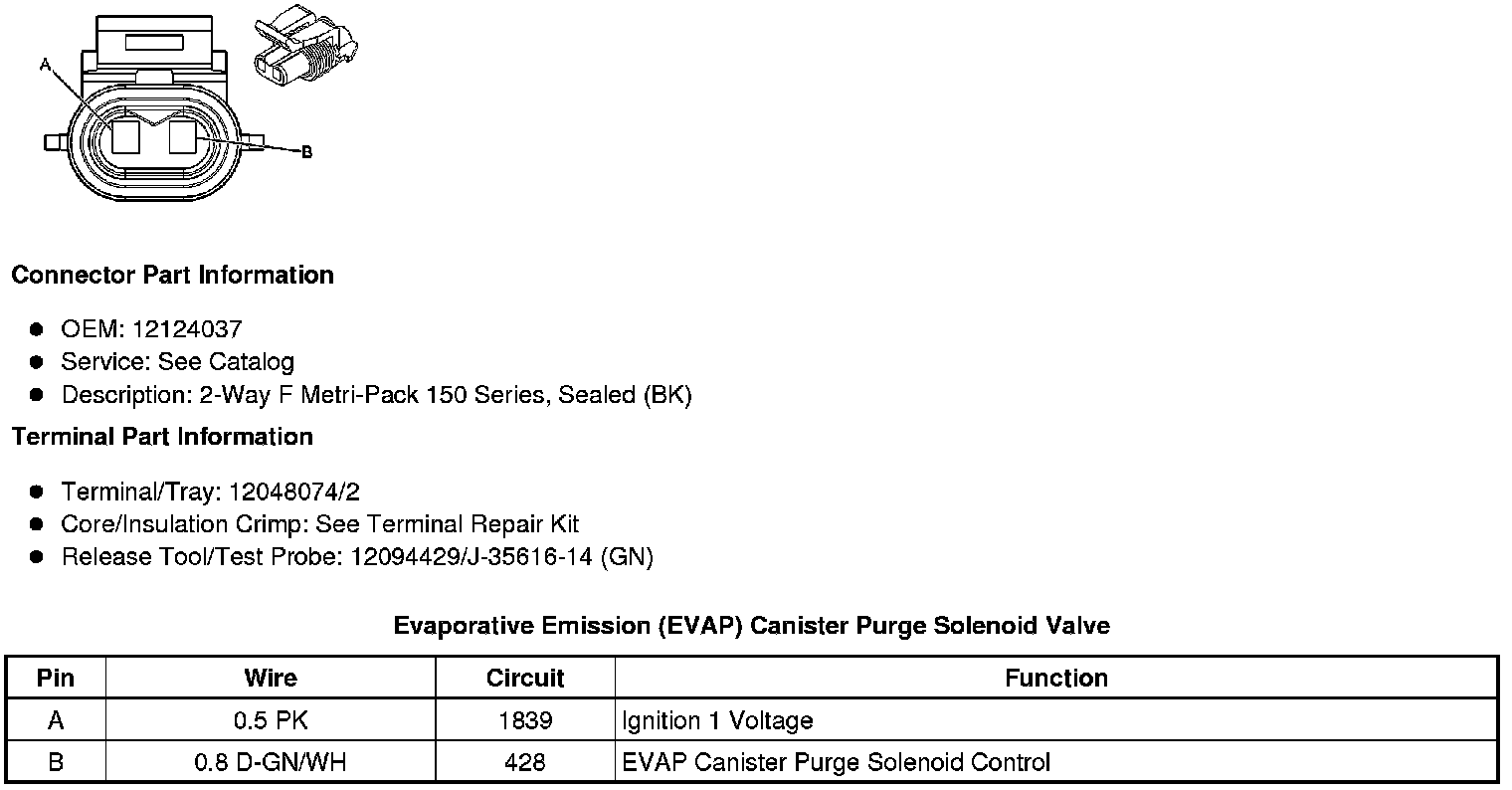

Evaporative Emission (EVAP) Canister Purge Solenoid Valve

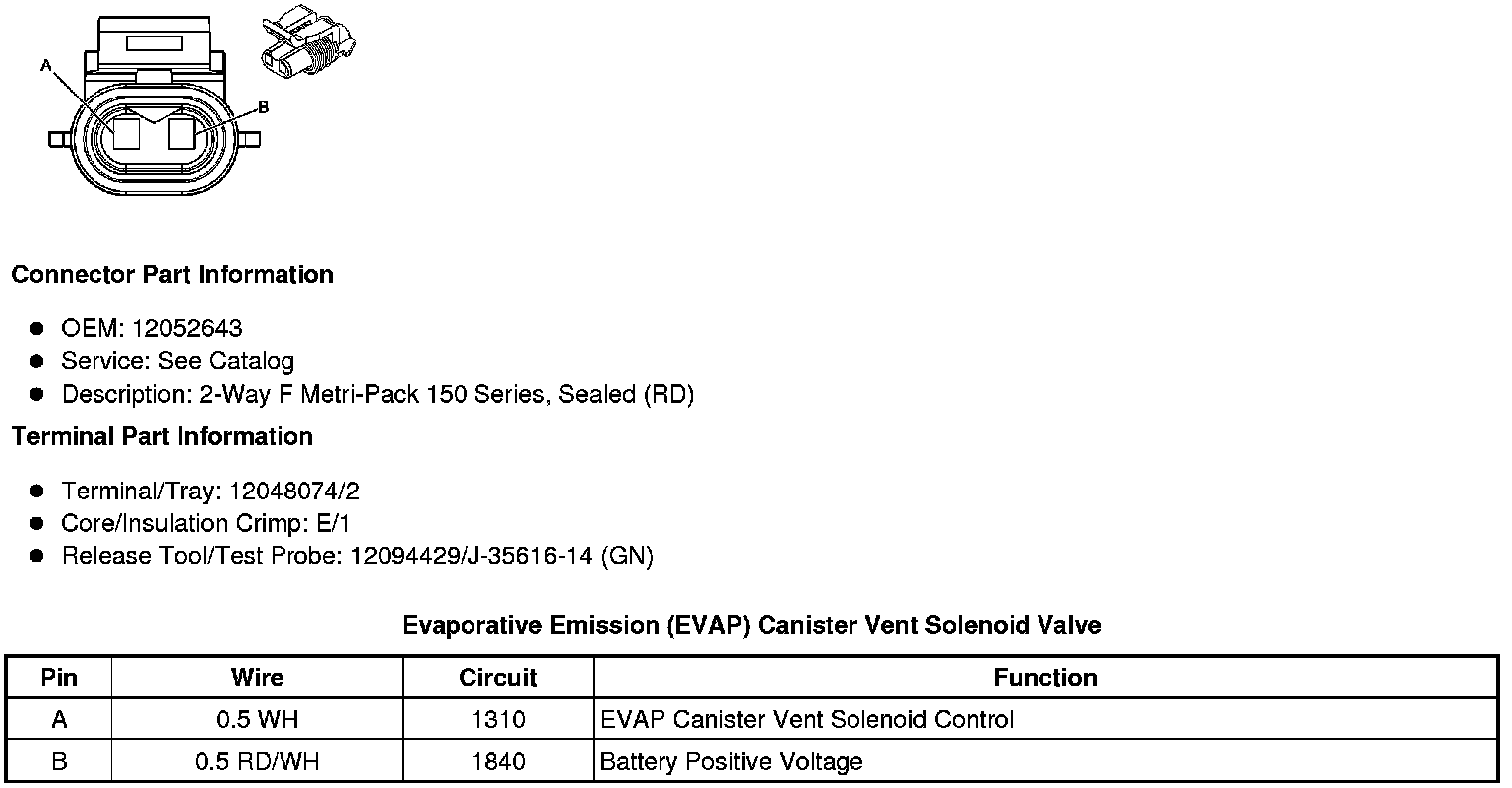

Evaporative Emission (EVAP) Canister Vent Solenoid Valve

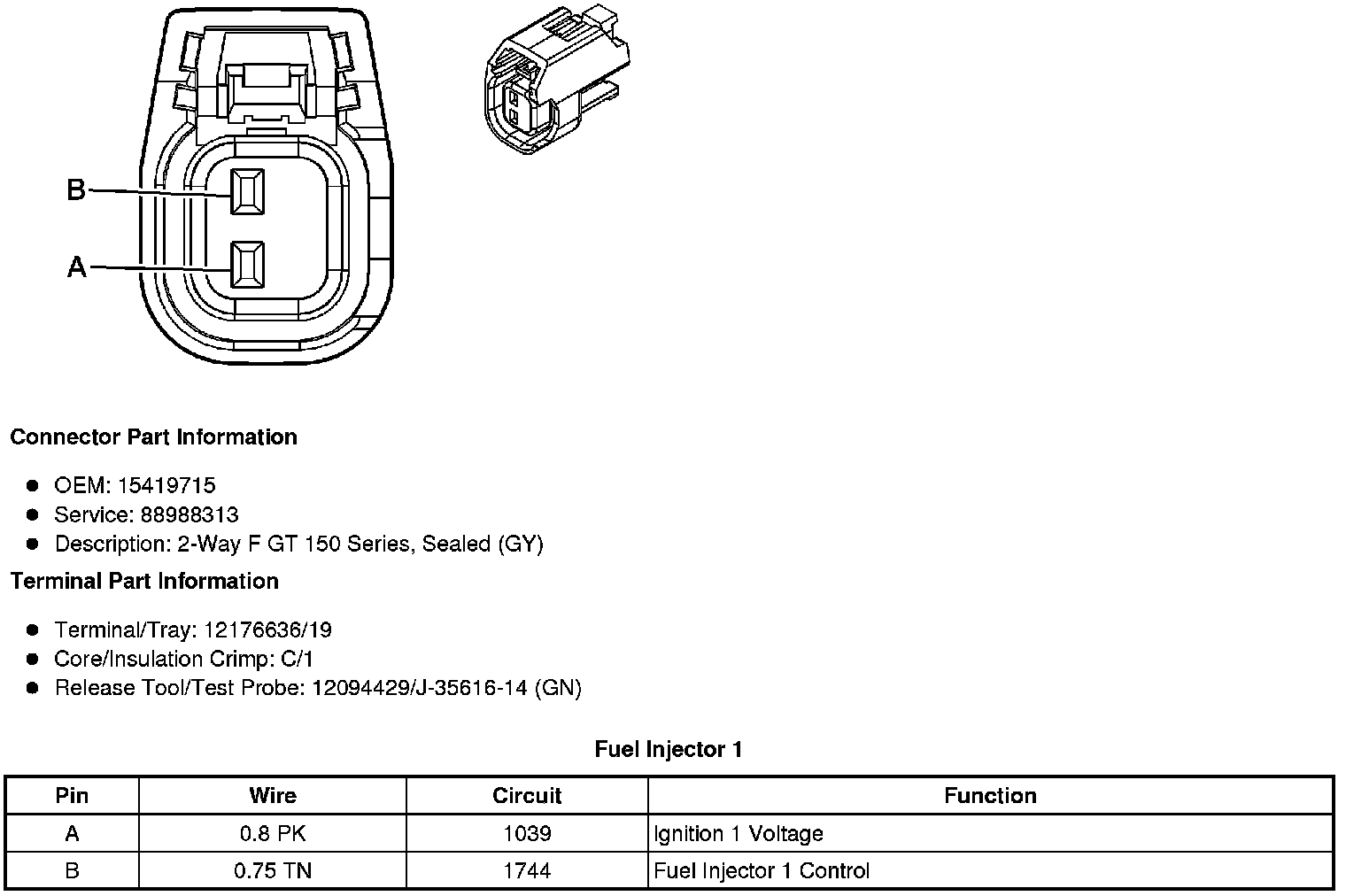

Fuel Injector 1

Fuel Injector 2

Fuel Injector 3

Fuel Injector 4

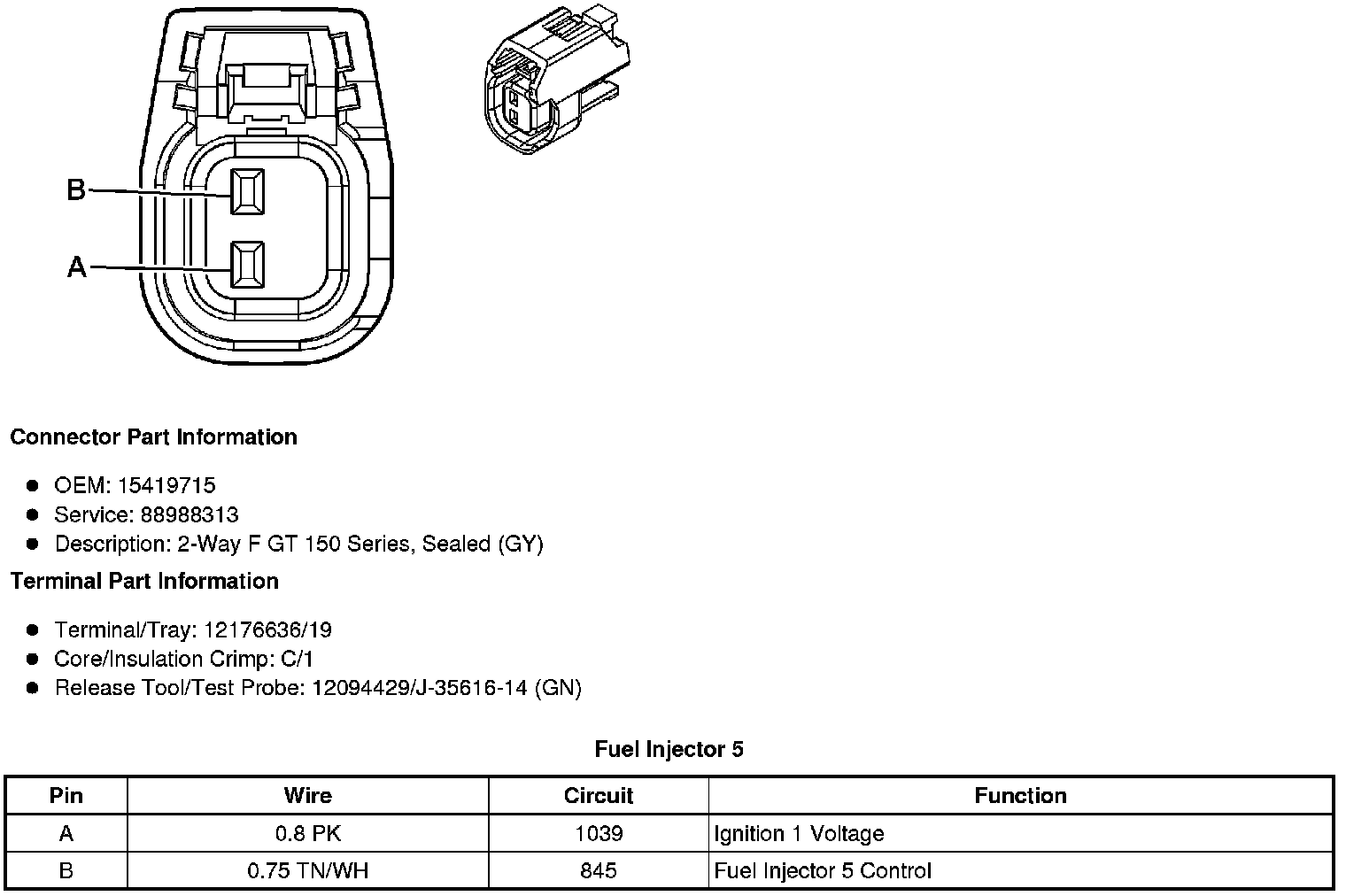

Fuel Injector 5

Fuel Injector 6

Fuel Injector 7

Fuel Injector 8

Fuel Line Pressure Sensor

Fuel Pump and Sender Assembly

Fuel System Control Module (FSCM)

Fuel Tank Pressure (FTP) Sensor

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

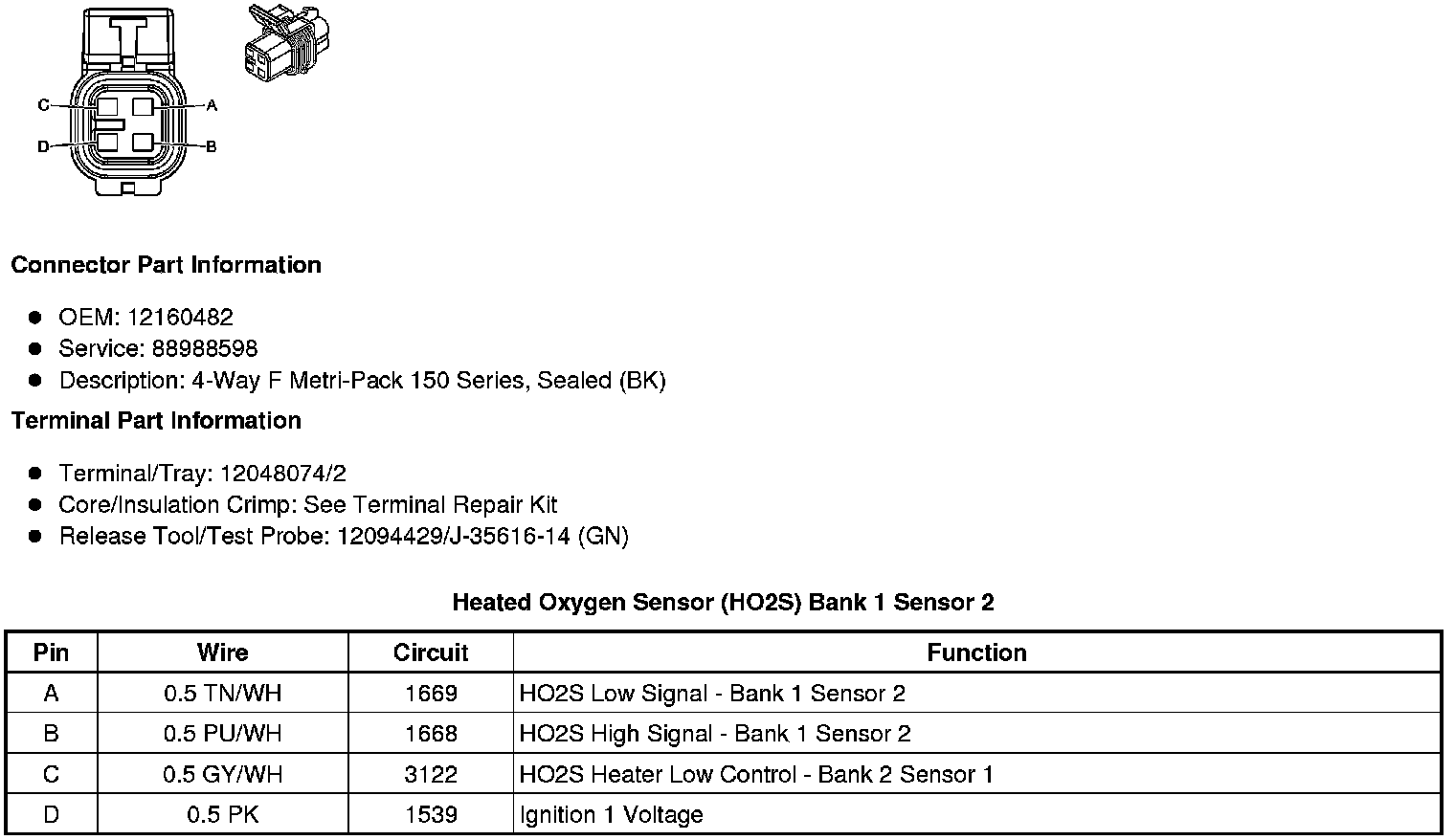

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

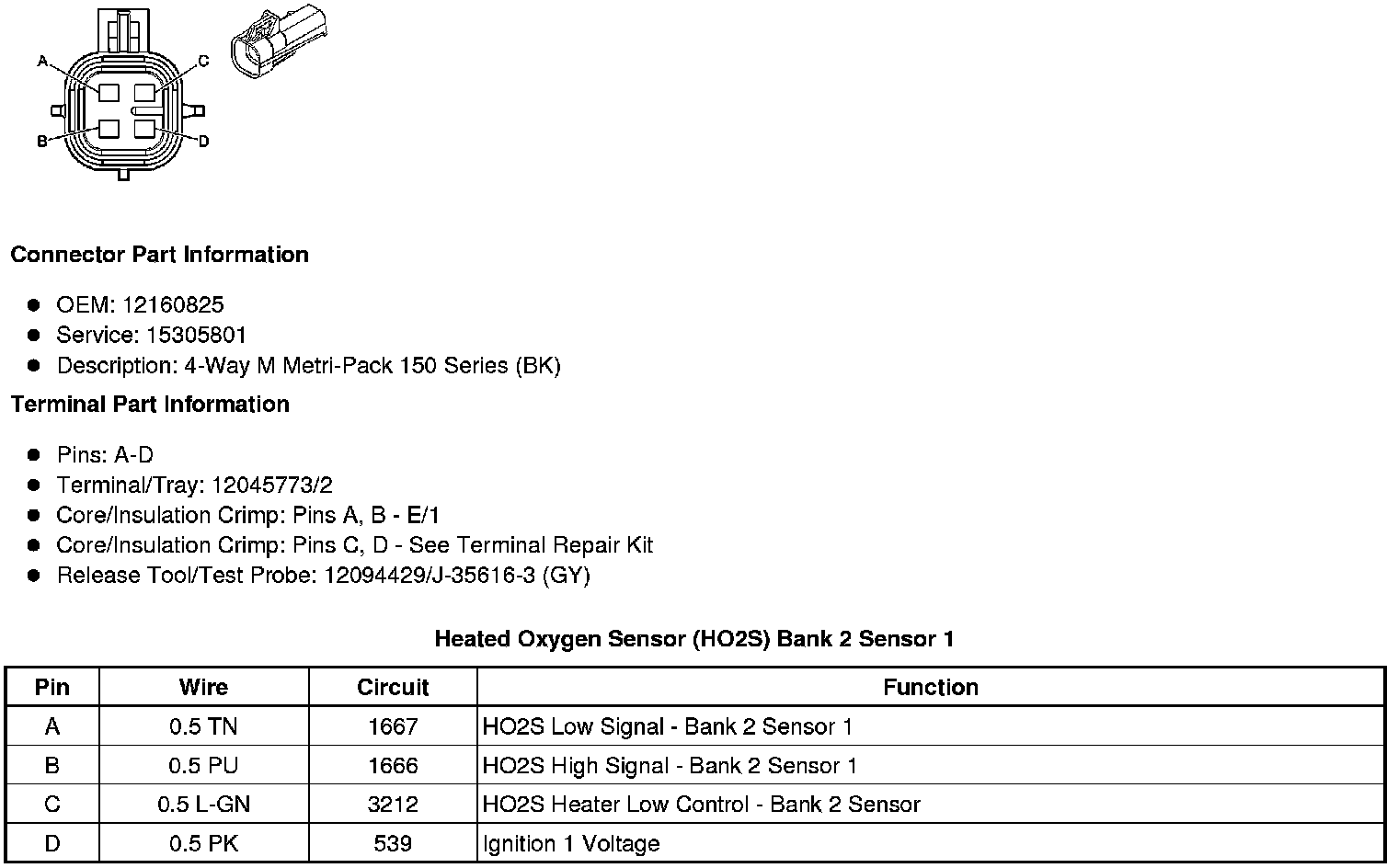

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

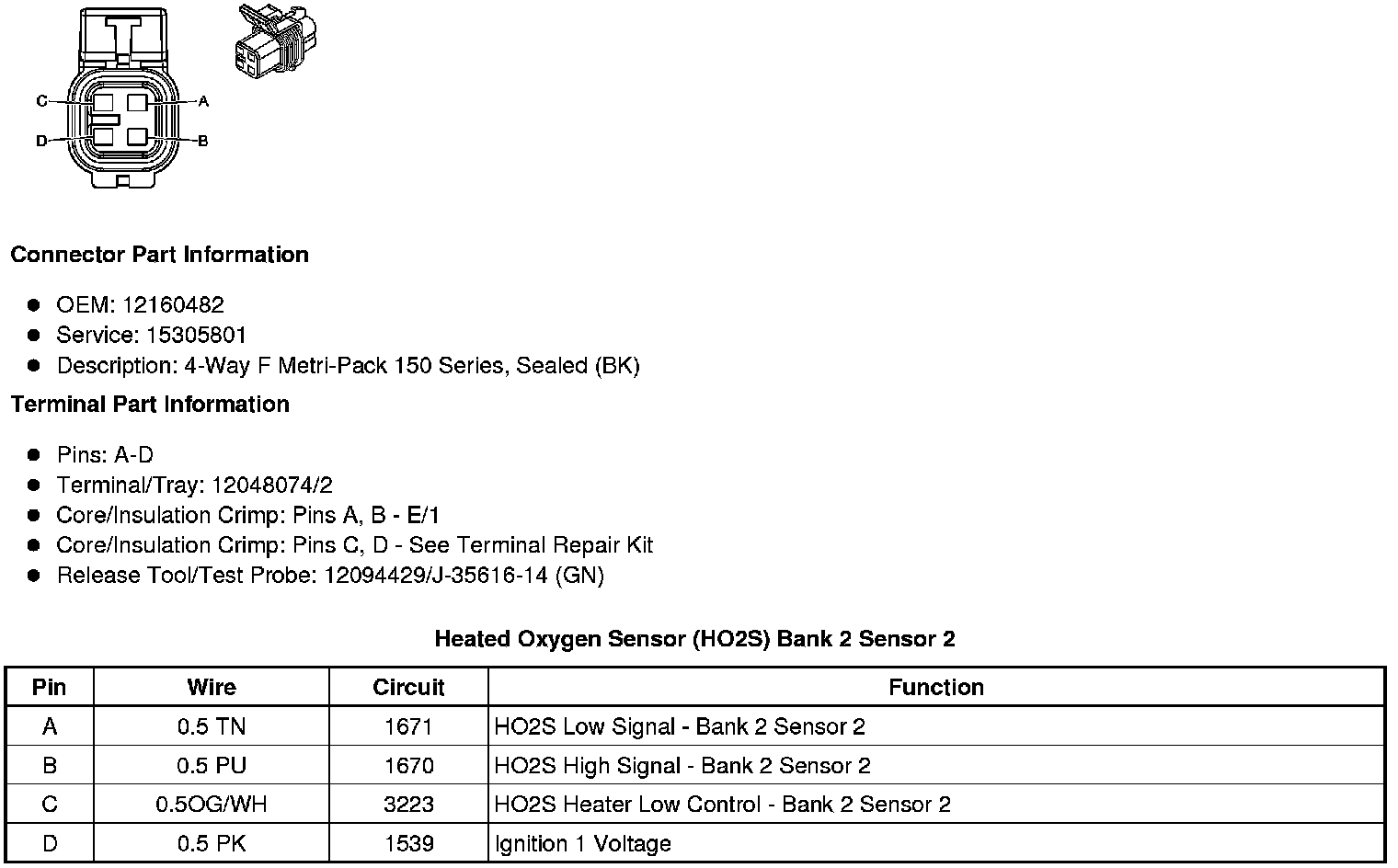

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor

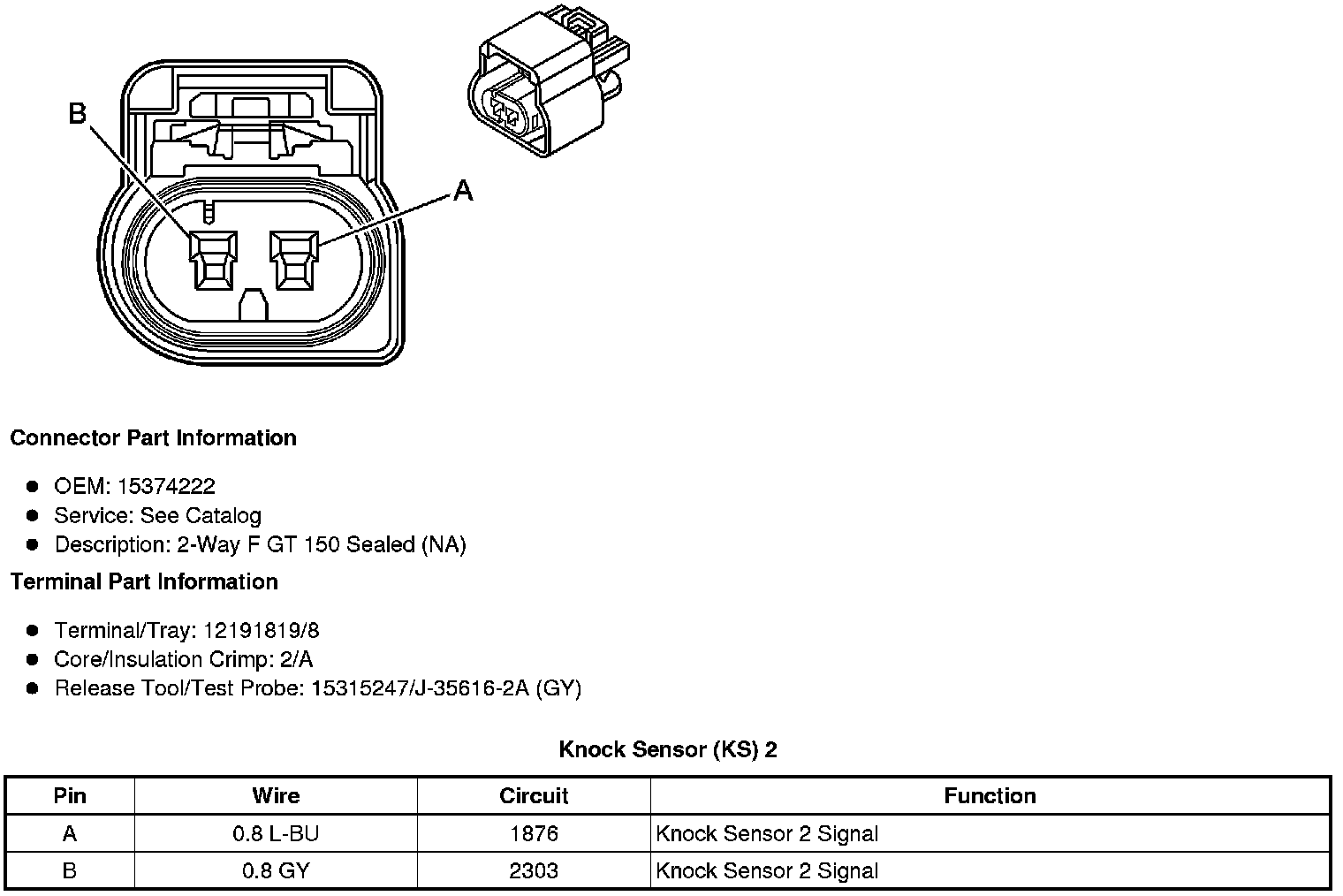

Knock Sensor (KS) 1

Knock Sensor (KS) 2

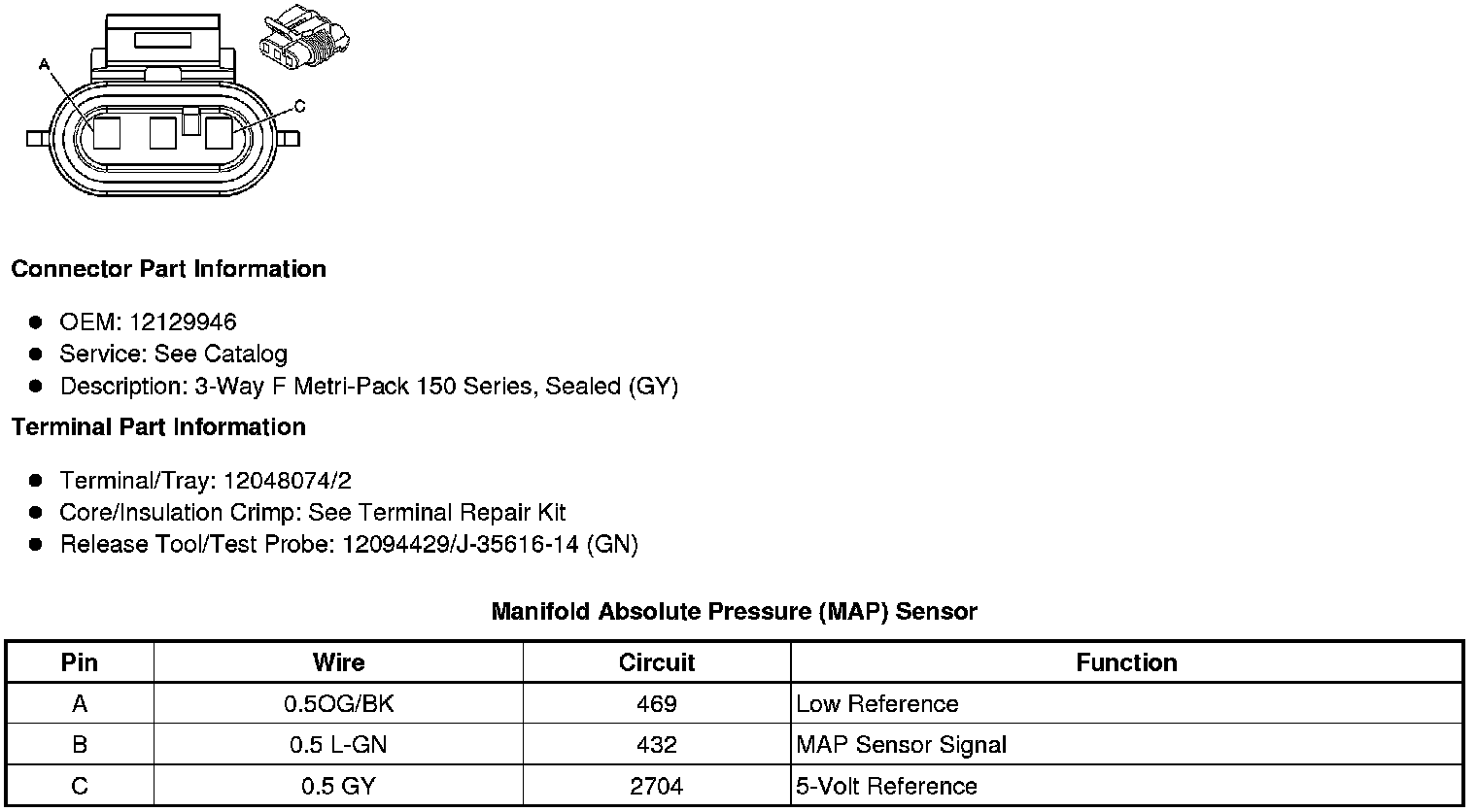

Manifold Absolute Pressure (MAP) Sensor

Throttle Body

Vehicle Speed Sensor (VSS)
