Air Register: Service and Repair



Rear Floor Air Outlet Replacement

Removal Procedure

1. Remove the console . Refer to Front Floor Console Replacement (Front Floor Console Replacement) .

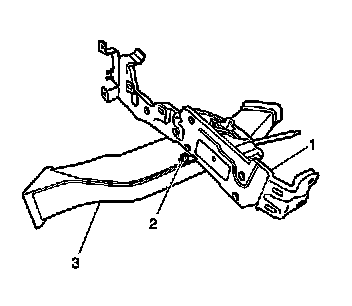

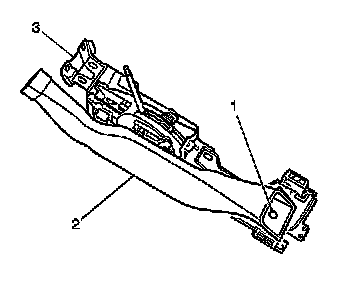

2. Remove the push pin (1).




3. Remove the air outlet duct-rear (3) from the console support bracket (1).



Installation Procedure





1. Install the air outlet duct-rear (3) to the console support bracket (1).




2. Install the push pin (1).
3. Install the console. Refer to Front Floor Console Replacement (Front Floor Console Replacement) .
