Wiper Motor: Locations

Luggage Compartment/Rear of Vehicle Component Views

Left Side of the Luggage Compartment Components (UQA)




1 - Audio Amplifier
2 - Audio Amplifier - X1
3 - Audio Amplifier - X2
4 - Audio Amplifier - X3
5 - Speaker - Subwoofer

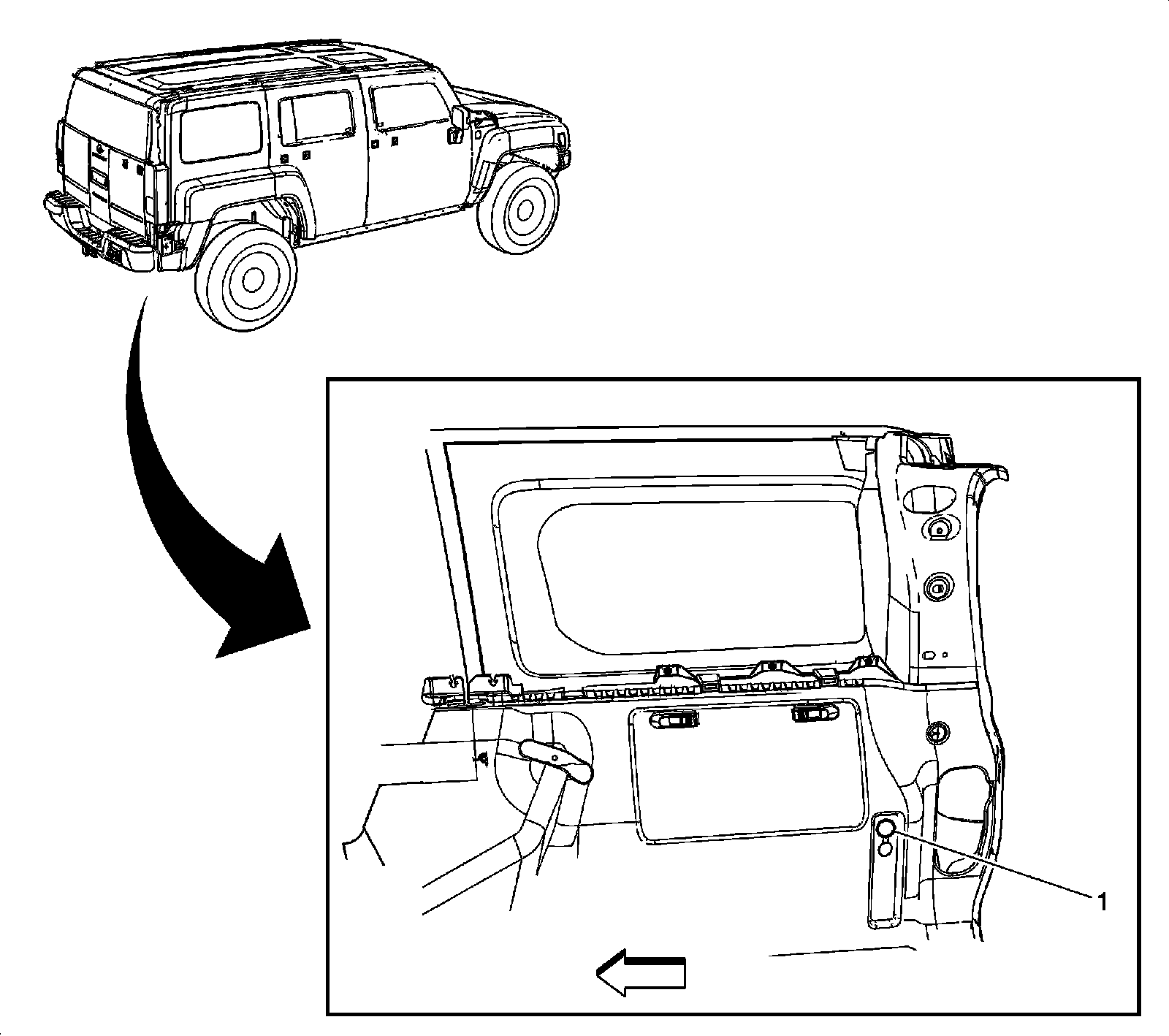

Right Side of the Luggage Compartment Components




1 - Accessory Power Outlet - Rear

Endgate Components




1 - Door Lock Actuator - Endgate
2 - Rear Window Wiper Motor
3 - Rear Window Defogger Connector X1
4 - Rear Window Defogger Connector X2
5 - Rear Window Defogger
7 - X901
8 - X450

Rear of the Vehicle Components




1 - Center High Mounted Stop Lamp (CHMSL)
2 - License Lamp
3 - Tail/Stop and Turn Signal Lamp - Right
4 - Backup Lamp - Right
5 - Trailer Connector (UY7)
6 - Backup Lamp - Left
7 - Tail/Stop and Turn Signal Lamp - Left
